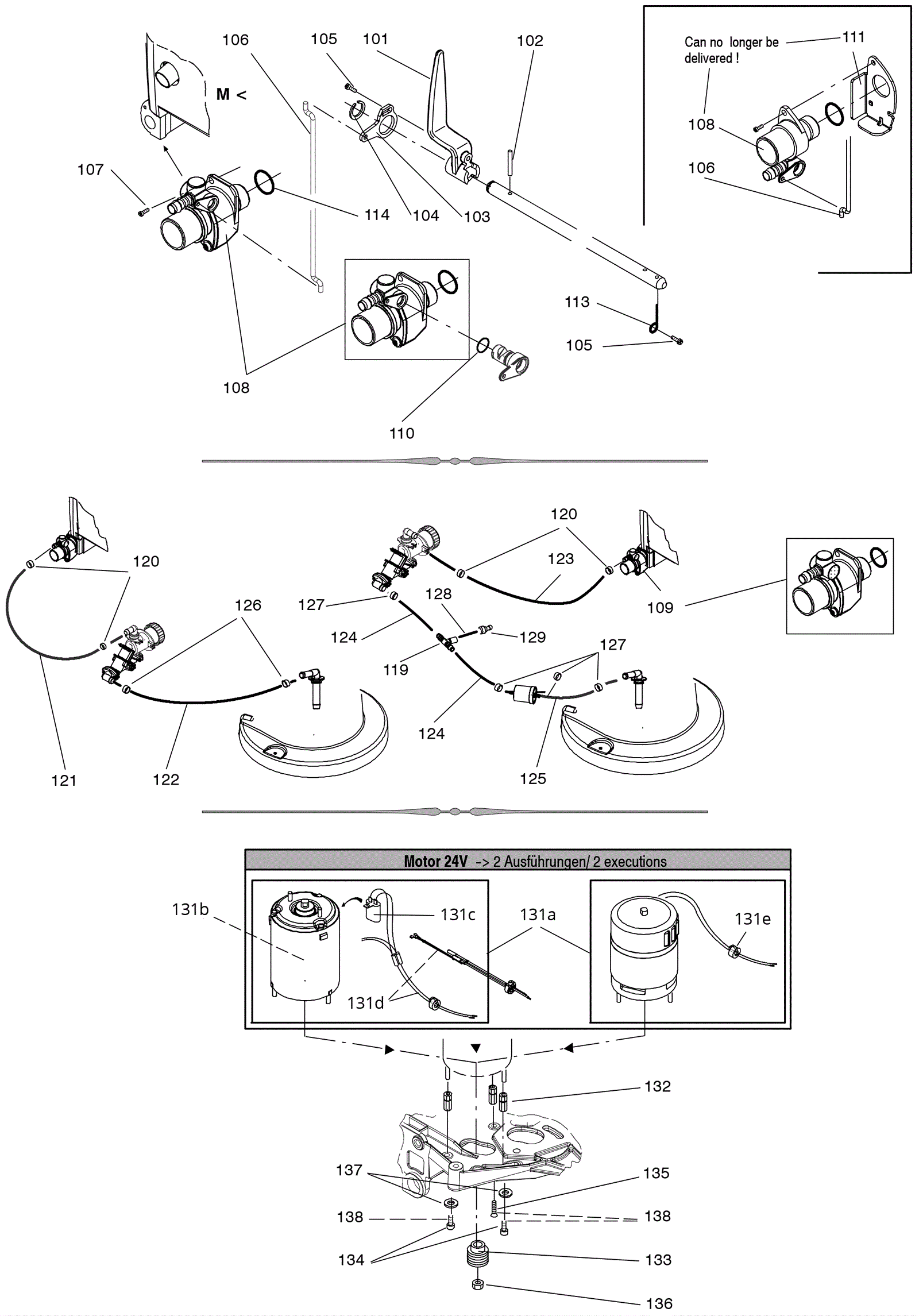

SWINGO 750B Solution Line Assembly - ECO Series 3/Power Series 2

#PartDescriptionPriceReqNotesAvailability
101 192-4128 Handle $5.93 1 usually ships 30-75 days
102 192-1408 Extension pin $2.44 1 usually ships 1-5 days
104 192-1505 Retaining ring $3.86 1 ships same day
105 192-1571 Screw M50 x 16mm $2.44 2 ships same day
106 192-8756 Rod (OBSOLETE) $14.97 1 usually ships 30-75 days
107 192-1561 Screw 60 x 20 torx head $2.44 1 ships same day
108a 192-1446 Water regulation set includes o-rings and lever (OBSOLETE) $44.69 1 usually ships 30-75 days
108b 192-8759 New water regulation set installation instructions Call for price 1 usually ships 3-26 days
109 192-9243 Discharge housing includes o-rings $21.74 1 ships same day
110 192-1603 O-ring $2.44 1 usually ships 30-75 days
113 192-4809 Locating pin $3.25 1 usually ships 1-5 days
114 192-5369 O-ring $2.44 1 ships same day
119 192-0894 T-nipple $5.01 1 ships same day
120 192-0334 Hose clamp $3.26 2 usually ships 12-29 days
121 192-0400 Wire reinforced hose (sold by the inch) $0.99 37 in ships same day
122 192-0404 Wire reinforced hose (sold by the inch) $0.99 25 in ships same day
123 192-0400 Wire reinforced hose (sold by the inch) $0.99 37 in ships same day
124 192-0404 Wire reinforced hose (sold by the inch) $0.99 7 in (2 7 inch segments) (eco series 3) (power series 2) (after 2005) ships same day
125 192-0404 Wire reinforced hose (sold by the inch) $0.99 6 in ships same day
126a 192-4370 Hose clamp $2.76 2 (eco series 3) (power series 2) (after 2005) usually ships 30-75 days
126b 192-4377 Hose clamp $5.25 6 (eco series 3) (power series 2) (before 2005) usually ships 30-75 days
127 192-0334 Hose clamp $3.26 4 (eco series 3) (power series 2) (after 2005) usually ships 12-29 days
128a 192-4344 Hose (sold by the inch) $3.74 47 in (eco series 3) (power series 2) (after 2005) usually ships 30-75 days
128b 192-4344 Hose (sold by the inch) $3.74 11 in (eco series 3) (power series 2) (before 2005) usually ships 30-75 days
129 192-1601 Check valve $27.42 1 ships same day
131a 192-5078 24V brush motor with noise suppression $474.97 1 ships same day
131b 192-0797 Carbon brush with holder (OBSOLETE) $211.30 1 usually ships 30-75 days
131c 192-5275 Noise suppressing condenser (OBSOLETE) $13.13 1 usually ships 30-75 days
131d 192-2485 Cable assembly (OBSOLETE) $24.76 1 usually ships 1-5 days
131e 192-0712 Coil with toric core $6.79 1 usually ships 30-75 days
132 192-8633 Stud $7.45 3 ships same day
133 192-5815 Pulley $9.97 1 ships same day
134 192-5942 Screw M6 x 16mm raised cheese head torx $2.44 2 ships same day
135 192-2979 Screw M6 x 16mm countersunk head cap $2.44 1 ships same day
136 192-0800 Nut M12 left hand thread hex $4.40 1 ships same day
137 192-0200 Washer M6 $3.12 2 ships same day
138 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
N/S 192-9011 Tank bracket (OBSOLETE) $20.99 1 (eco series 3) (power series 2) (after 2006) usually ships 1-5 days
