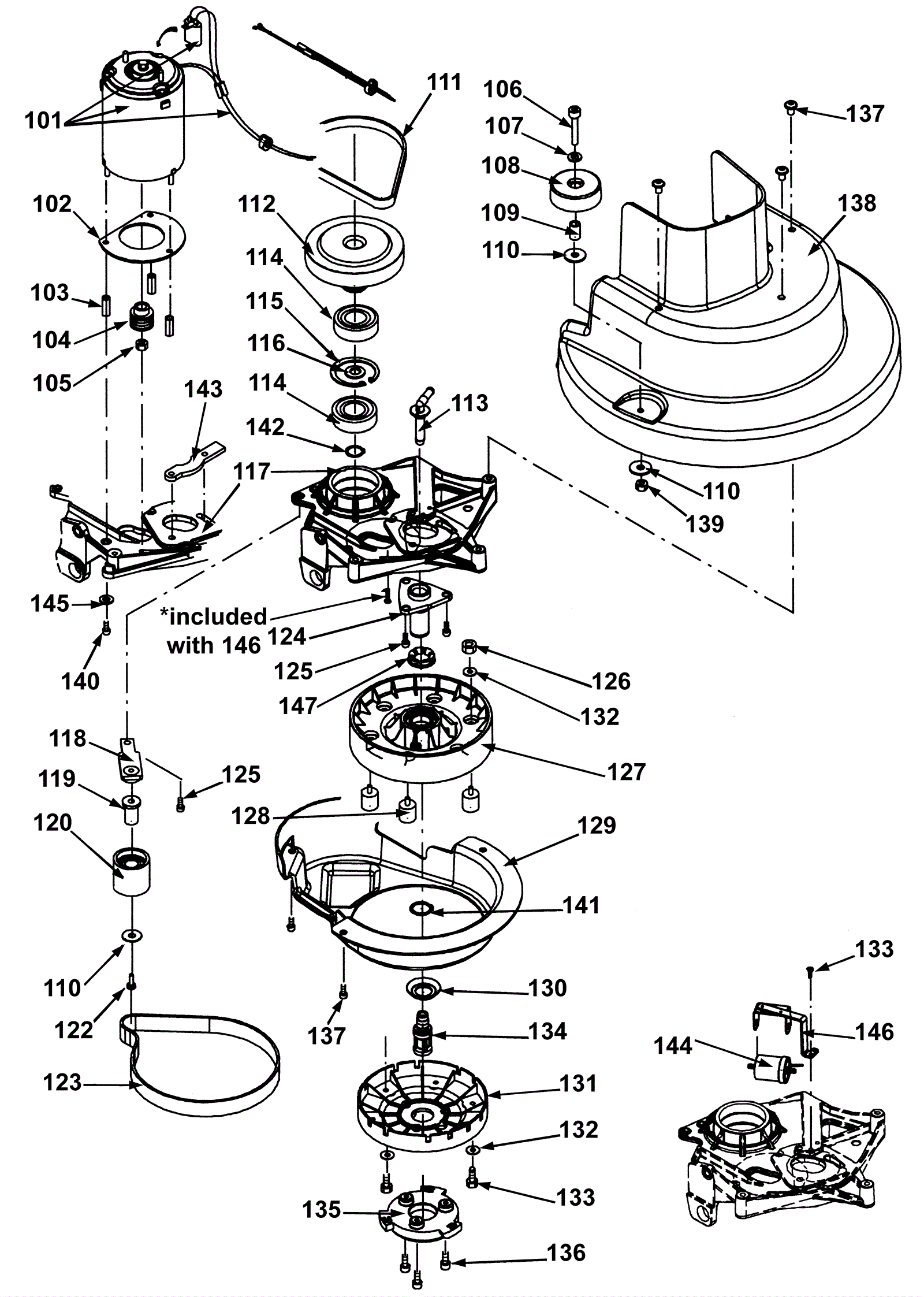

SWINGO 750B Brush Drive Assembly - Series 1/ECO Series 3/Power Series 2 Before 2006

#PartDescriptionPriceReqNotesAvailability
101a 192-5078 24V brush motor with noise suppression $474.97 1 ships same day
101b 192-0797 Carbon brush with holder (OBSOLETE) $211.30 1 usually ships 30-75 days
101c 192-5275 Noise suppressing condenser (OBSOLETE) $13.13 1 usually ships 30-75 days
101d 192-2485 Cable assembly (OBSOLETE) $24.76 1 usually ships 1-5 days
102 192-6849 Bracket $14.14 1 usually ships 30-75 days
103 192-6544 Special nut M6 $4.35 3 usually ships 30-75 days
104 192-5815 Pulley $9.97 1 ships same day
105 192-0800 Nut M12 left hand thread hex $4.40 1 ships same day
106a 192-1289 Screw M8 x 35mm socket head cap $4.52 1 (eco series 3) (power series 2) (after 2004) ships same day
106b 192-0104 Screw M8 x 45mm socket head cap $2.44 1 (series 1) (power series 2) (before 2004) ships same day
107 192-0105 Washer M8 $2.44 1 ships same day
108 192-0329 Bumper wheel $3.49 1 ships same day
109 192-1290 Bushing $5.20 1 ships same day
110 192-0604 Washer M8 $2.44 3 ships same day
111 192-5625 Poly v-belt $20.15 1 ships same day
112 192-4607 Intermediate pulley $45.18 1 ships same day
113a 192-1677 Angled nipple $2.44 1 (eco series 3) (power series 2) (after 2004) ships same day
113b 192-5517 Solution pipe (OBSOLETE) $13.54 1 (eco series 3) (power series 2) (before 2004) usually ships 30-75 days
114 192-0481 Ball bearing $10.21 2 ships same day
115 192-0483 Retaining ring $2.44 1 ships same day
116 192-0482 Spacer $2.44 1 ships same day
117a 192-8632 Brush base plate $79.81 1 (17 inch) usually ships 30-75 days
117b 192-8582 Brush base plate Call for price 1 (20 inch) usually ships 1-5 days
118 192-2824 Clamping lever $20.34 1 ships same day
119 192-0606 Bushing $7.45 1 ships same day
120 192-0607 Belt tensioner roller $12.17 1 ships same day
122 192-0104 Screw M8 x 45mm socket head cap $2.44 1 ships same day
123 192-5624 Poly v-belt $49.58 1 ships same day
124 192-0590 Pulley axle $12.69 1 ships same day
125 192-0036 Screw M8 x 20mm socket head $2.44 4 ships same day
126 192-0563 Nut M6 self-locking $2.44 6 ships same day
127 192-5836 Pulley with bearings $49.16 1 (bearings not available separately) ships same day
128 192-5836 Pulley with bearings $49.16 1 (buffer no longer sold separately) ships same day
129 192-3080 Cover $11.73 1 ships same day
130 192-6320 Sealing ring $2.44 1 ships same day
131 192-9537 Catch $17.05 1 ships same day
132 192-0216 Washer $1.22 12 ships same day
133 192-1109 Screw M6 x 10mm hex head $0.89 8 ships same day
134 192-2727 Center plug $3.54 1 ships same day
135 192-3034 Drive hub $5.57 1 ships same day
136 192-1571 Screw M50 x 16mm $2.44 3 ships same day
137 192-0348 Screw M8 x 12mm truss head $2.44 6 ships same day
138a 192-2275 Brush housing $67.60 1 (17 inch) ships same day
138b 192-2278 Brush housing $186.45 1 (20 inch) ships same day
139a 192-4211 Nut M8 hex $2.44 1 (eco series 3) (power series 2) (after 2004) ships same day
139b 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 (series 1) (power series 2) (before 2004) ships same day
140a 192-5942 Screw M6 x 16mm raised cheese head torx $2.44 2 (eco series 3) (power series 2) (after 2004) ships same day
140b 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 3 (eco series 3) (power series 2) (before 2004) ships same day
141 192-0503 Retaining ring $2.44 1 ships same day
142 192-0485 Retaining ring $5.08 1 usually ships 30-75 days
143 192-2012 Belt tensioner $4.52 1 ships same day
144a 192-5845 24V pump $157.47 1 (eco series 3) (power series 2) (after 2004) ships same day
144b 192-1474 Pump $178.15 1 (eco series 3) (power series 2) (before 2004) ships same day
145 192-0200 Washer M6 $3.12 2 ships same day
146 192-8583 Pump bracket $31.14 1 ships same day
147 192-6321 Sealing ring $3.74 1 (eco series 3) (power series 2) (after 2004) ships same day
