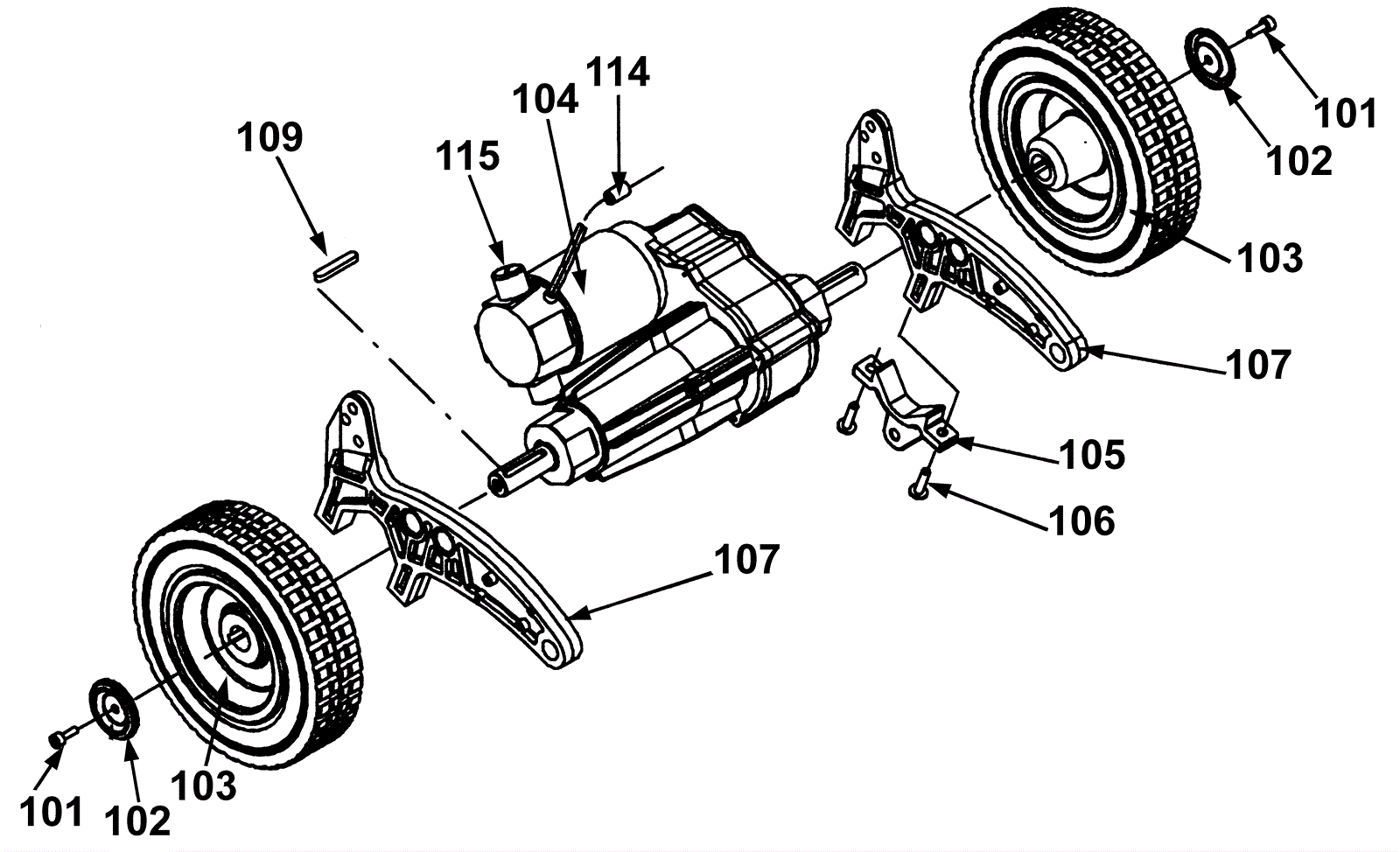

| # | Part | Description | Price | Req | Notes | Availability |
|---|
101a |
192-4228
|
Screw M8 x 16mm hex head |
$2.44
|
2 |
(series 2) |
usually ships 24-40 days |
101b |
999-0783
|
Screw M8-1.25 x 16mm hex head |
$0.99
|
2 |
(series 1) |
ships same day |
102 |
192-3077
|
Disk |
$4.03
|
2 |
|
ships same day |
103a |
192-3397
|
Nonmarking drive wheel (gray) |
$118.07
|
2 |
|
ships same day |
103b |
192-7505
|
Drive wheel (standard) (gray) |
$147.50
|
2 |
|
ships same day |
103c |
192-7160
|
Traction drive wheel (brown) |
$151.16
|
2 |
|
usually ships 24-40 days |
103d |
N/A
|
Not available |
Call for price
|
1 |
(wheels) (series 2) before 01.2006) |
usually ships 3-26 days |
104 |
192-1500
|
Transaxle drive unit |
$1,206.25
|
1 |
|
ships same day |
105 |
192-2168
|
Bracket |
$8.91
|
2 |
|
ships same day |
106 |
192-1509
|
Screw 60 x 25 torx head |
$4.35
|
4 |
|
ships same day |
107 |
192-3209
|
Cradle |
$14.29
|
2 |
|
ships same day |
109 |
192-4651
|
Square keyway |
$2.44
|
2 |
|
usually ships 24-40 days |
114 |
192-1153
|
Toroidal choke |
$9.41
|
1 |
|
usually ships 24-40 days |
115 |
192-2665
|
Carbon brush (pkg of 2) |
$64.91
|
1 |
|
usually ships 24-40 days |
