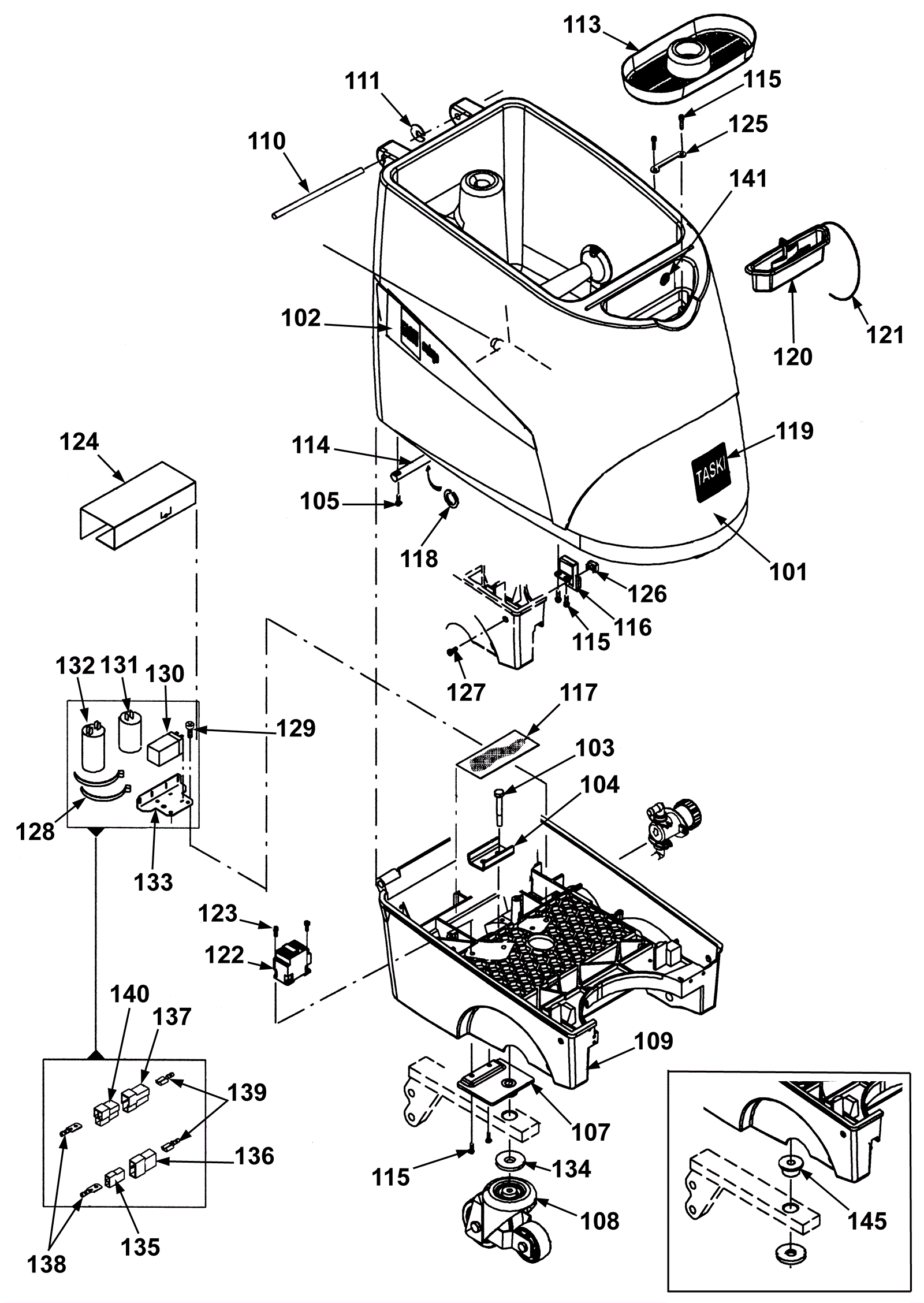

SWINGO 750E Lower Part and Tank Assembly

#PartDescriptionPriceReqNotesAvailability
101a 192-7007 Recovery tank (750E only) $701.07 1 Series 02 after 01.2006 usually ships 1-5 days
101b 192-7007 Recovery tank (750E only) $701.07 1 Series 01 and Series 02 before 01.2006 usually ships 1-5 days
102 192-3249 Swingo decorative label $78.41 1 usually ships 1-5 days
103 192-4218 Screw M12 x 30mm hex head $2.56 1 ships same day
104 192-1517 Reinforcement plate $3.66 1 usually ships 17-21 days
105 192-1509 Screw 60 x 25 torx head $4.57 2 ships same day
107 192-1958 Bearing plate $46.79 1 Series 02 after 01.2006 usually ships 17-21 days
108a 192-1521 Caster wheel assembly (brown) $110.33 1 ships same day
108b 192-6380 Caster replacement wheel (brown) (pkg of 2) $140.51 1 (Not a direct replacement for 192-1521. This is a softer wheel for structured floor.) ships same day
109 192-1518 Chassis $324.90 1 ships same day
110 192-1502 Axle $35.29 1 usually ships 17-21 days
111 192-1504 Spacer $2.56 4 ships same day
113 192-1511 Basket filter $11.67 1 ships same day
114 192-1508 Axle $14.18 1 ships same day
115 192-1561 Screw 60 x 20 torx head $2.56 8 ships same day
116 192-1514 Bracket (OBSOLETE) $7.21 2 usually ships 17-21 days
117 192-5555 Plate (OBSOLETE) $2.20 1 usually ships 1-5 days
118 192-2774 Snap ring $2.56 2 Series 02 after 01.2006 usually ships 1-5 days
119 192-1084 TASKI decal $3.72 1 usually ships 17-21 days
120 192-3360 Measuring cup (OBSOLETE) $8.18 1 usually ships 17-21 days
121 192-0714 Cord (sold by the inch) $2.56 .30 ships same day
122 192-2939 Contactor $630.33 1 usually ships 17-21 days
123 192-1595 Screw M40 x 16mm torx head $2.56 2 ships same day
124 192-5784 Protective shield $27.82 1 usually ships 1-5 days
125 192-1513 Locking plate $3.66 1 usually ships 17-21 days
126 192-2591 Nut M8 caged $2.56 2 ships same day
127 192-1524 Screw M8 x 20mm flange socket head $2.56 2 ships same day
128 192-0102 7 3/4 inch cable tie $2.56 2 usually ships 17-21 days
129 192-1571 Screw M50 x 16mm $2.56 2 ships same day
130 192-0942 Relay $135.85 1 ships same day
131 192-0664 Start capacitor (black) $33.85 1 usually ships 17-21 days
132 192-0665 Run capacitor (white) $11.67 1 usually ships 17-21 days
133 292-5142 Support $3.28 1 usually ships 17-21 days
134 192-7394 Washer M13 $19.49 1 ships same day
135 192-5596 2 pole plug housing $2.56 1 usually ships 17-21 days
136 192-3759 2 way flat connector housing $5.51 1 usually ships 17-21 days
137 192-1387 3 way plug housing $2.56 1 usually ships 17-21 days
138 192-3760 Flat crimp connector $2.56 3 usually ships 17-21 days
139 192-3592 Female plate clip $2.70 3 usually ships 17-21 days
140 192-1388 3 pole plug housing $2.56 1 usually ships 17-21 days
141 192-0185 Decal (blue) $2.56 1 usually ships 17-21 days
145 192-1519 Bushing (OBSOLETE) Call for price 1 Series 01 usually ships 1-5 days
N/S 192-2501 P clamp $4.82 1 Series 01 ships same day
