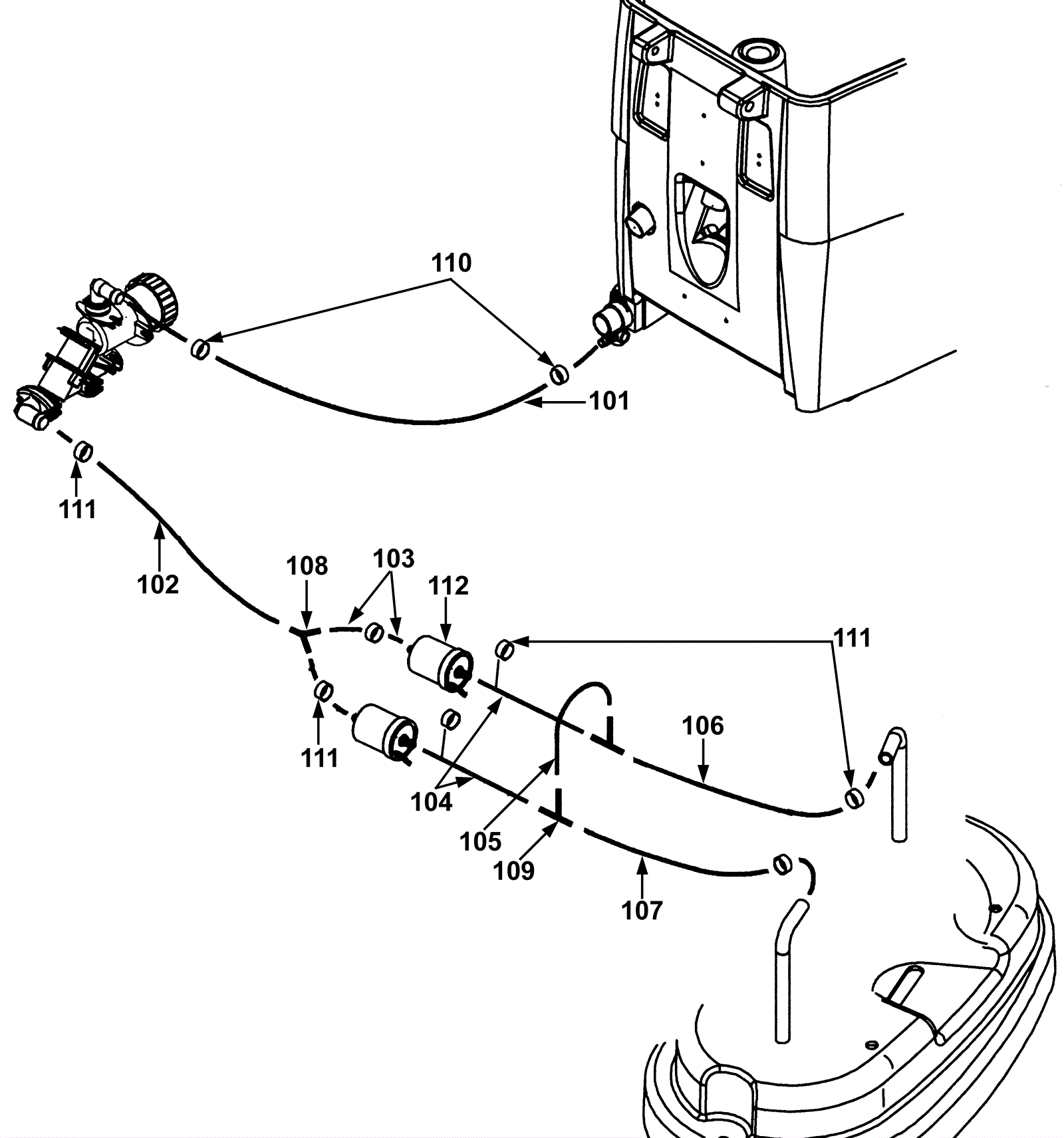

Solution Line Assembly - Series 1

#PartDescription ReqNotesAvailability
101 192-0400 Wire reinforced hose (sold by the inch) 33 in
102 192-0404 Wire reinforced hose (sold by the inch) 22 in
103 192-4461 Tygon hose (sold by the inch) 3 in (2 3 inch sections)
104 192-4461 Tygon hose (sold by the inch) 3 in (2 3 inch sections)
105 192-0404 Wire reinforced hose (sold by the inch) 8 in
106 192-0404 Wire reinforced hose (sold by the inch) 12 in
107 192-0404 Wire reinforced hose (sold by the inch) 8 in
108 192-7548 Y-pipe 1
109 192-7109 T-nipple 2
110 192-0334 Hose clamp 2
111 192-4377 Hose clamp 7
112 192-1474 Pump 2
