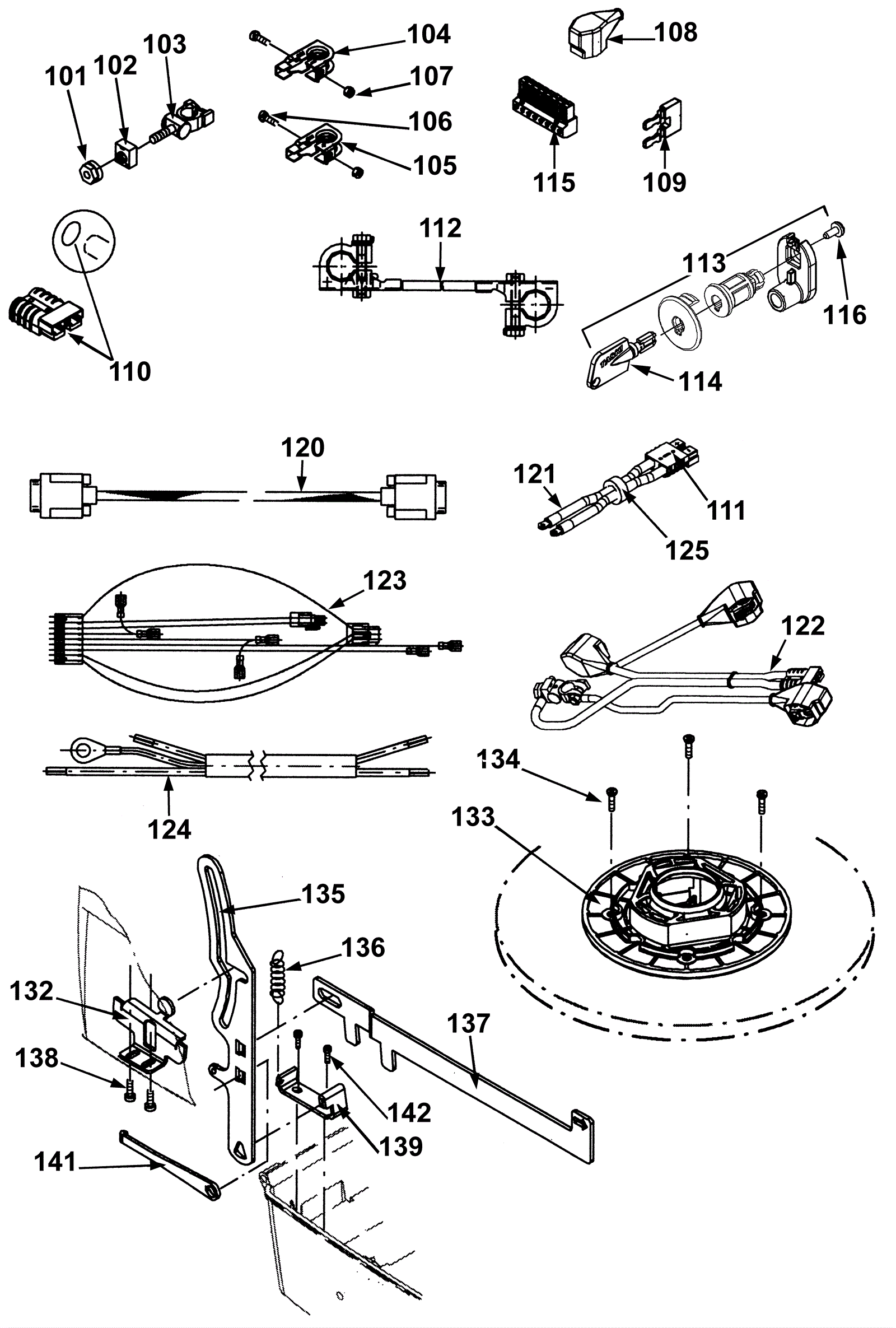

| # | Part | Description | Price | Req | Notes | Availability |
|---|
101 |
192-4577
|
Insulating nut |
$22.06
|
1 |
|
ships same day |
102 |
192-1420
|
75amp fuse |
$16.68
|
1 |
|
ships same day |
103 |
192-2505
|
Battery cable clamp |
$22.42
|
1 |
|
ships same day |
104 |
192-1926
|
Negative battery clamp |
$5.98
|
1 |
|
ships same day |
105 |
192-1927
|
Positive battery clamp |
$7.49
|
1 |
|
ships same day |
106 |
192-4224
|
Screw M6 x 35mm hex head |
$2.76
|
1 |
|
usually ships 24-40 days |
107 |
192-0151
|
Nut M6 hex |
$2.44
|
1 |
|
ships same day |
108 |
192-0886
|
Battery post cover |
$13.31
|
1 |
|
ships same day |
109 |
192-4644
|
Jumper |
$7.45
|
1 |
|
usually ships 24-40 days |
110a |
192-0389
|
50amp charger plug SB50 with hole (gray) |
$16.68
|
1 |
(series 2) (after 01.2004) |
ships same day |
110b |
192-0388
|
50amp charger plug SB50 with post (gray) |
$8.86
|
1 |
(series 1) |
ships same day |
112 |
192-1406
|
Battery cable |
$61.29
|
1 |
|
ships same day |
113 |
192-4658
|
Key switch assembly (OBSOLETE) |
$48.14
|
1 |
(includes 114 and 116) (series 2) |
usually ships 24-40 days |
114 |
292-5254
|
Steel key |
$3.78
|
1 |
(series 2) |
ships same day |
115 |
192-1622
|
8 Way plug (OBSOLETE) |
$41.44
|
1 |
(series 2) |
usually ships 24-40 days |
116 |
192-8584
|
Screw 40 x 8 |
$2.44
|
1 |
(series 2) |
usually ships 24-40 days |
120 |
192-2948
|
Communication cable |
$60.17
|
1 |
(series 2) |
usually ships 24-40 days |
121 |
192-2568
|
Cable strand |
$184.35
|
1 |
(series 2) |
usually ships 24-40 days |
122 |
192-2567
|
Battery connection harness |
$234.92
|
1 |
(series 2) |
usually ships 24-40 days |
123 |
N/A
|
Not available |
Call for price
|
1 |
(series 2) (wiring harness) |
usually ships 3-26 days |
124 |
192-2651
|
Carbon brush (sold individually) |
$19.12
|
1 |
(series 2) |
usually ships 24-40 days |
132 |
192-9302
|
Catch (OBSOLETE) |
Call for price
|
1 |
(series 2) |
usually ships 1-5 days |
133 |
192-3013
|
Brush coupling |
$13.19
|
1 |
(series 1) |
ships same day |
134 |
192-0445
|
Screw M5 x 25mm pan head tap |
$2.44
|
4 |
(series 1) |
usually ships 24-40 days |
135 |
192-9299
|
Detend (OBSOLETE) |
Call for price
|
1 |
(series 2) |
usually ships 1-5 days |
136 |
192-0710
|
Tension spring |
$2.44
|
1 |
(series 1) |
usually ships 24-40 days |
137 |
192-9300
|
Tension lever (OBSOLETE) |
Call for price
|
1 |
(series 2) |
usually ships 1-5 days |
138 |
192-1561
|
Screw 60 x 20 torx head |
$2.44
|
2 |
(series 1) |
ships same day |
139 |
N/A
|
Not available |
Call for price
|
1 |
(series 1) (pillow block) |
usually ships 3-26 days |
140 |
192-9251
|
Catch (OBSOLETE) |
Call for price
|
1 |
(series 1) |
usually ships 1-5 days |
141 |
192-9303
|
Lever (OBSOLETE) |
Call for price
|
1 |
(series 1) |
usually ships 1-5 days |
142 |
192-1571
|
Screw M50 x 16mm |
$2.44
|
2 |
(series 1) |
ships same day |
N/S |
192-6014
|
Reset key set |
$313.24
|
1 |
(to reset service hours) |
usually ships 24-40 days |
