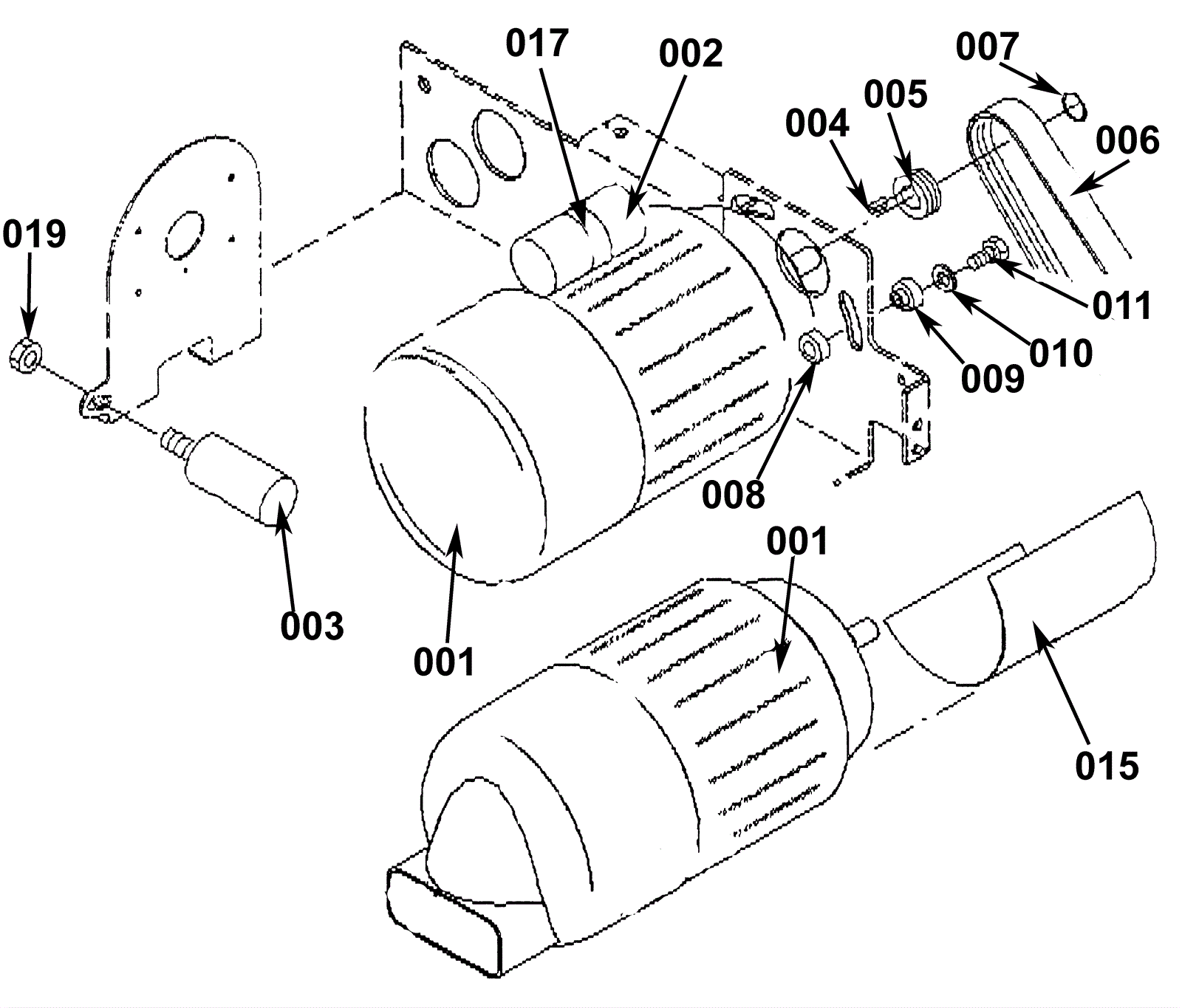

COMBIMAT 300 Brush Motor Assembly - Series 02 - 07.1997 - 05.2004

#PartDescriptionPriceReqNotesAvailability
001 192-5047 Motor 120 volt 60 hz $1,083.47 1 usually ships 30-75 days
002 192-6712 Start capacitor 160 uF (black) $90.60 1 usually ships 1-5 days
003 192-6227 Run capacitor 40 uF (white) $107.15 1 usually ships 1-5 days
004 192-4648 Square keyway $2.44 1 ships same day
005 192-5805 Pulley $149.70 1 usually ships 1-5 days
006 192-3392 Drive belt $9.35 1 usually ships 30-75 days
007 192-6037 Retaining ring $0.89 1 ships same day
008 192-7407 Insulating washer $2.44 3 usually ships 30-75 days
009 192-4571 Insulating bushing $2.44 3 usually ships 1-5 days
010 192-7421 Washer $2.44 3 usually ships 30-75 days
011 192-1285 Screw M6 x 25mm hex head $2.44 3 ships same day
015a 192-5783 Protection shield (OBSOLETE) $6.45 1 usually ships 1-5 days
015b 192-0794 Cable tie $0.89 4 ships same day
017a N/A Not available Call for price 1 Fixation usually ships 3-26 days
017b 192-5929 Screw M4 x 8mm raised cheese head $0.89 2 ships same day
019 192-0347 Nut M8 hex $0.89 1 ships same day
N/S 192-5013 Mechanic centrifugal switch 60 hz (OBSOLETE) $74.48 1 usually ships 1-5 days
N/S 192-5101 Motor hood (OBSOLETE) $33.47 1 usually ships 1-5 days
N/S 192-6293 Screw M4 x 8 (OBSOLETE) $2.20 2 usually ships 1-5 days
