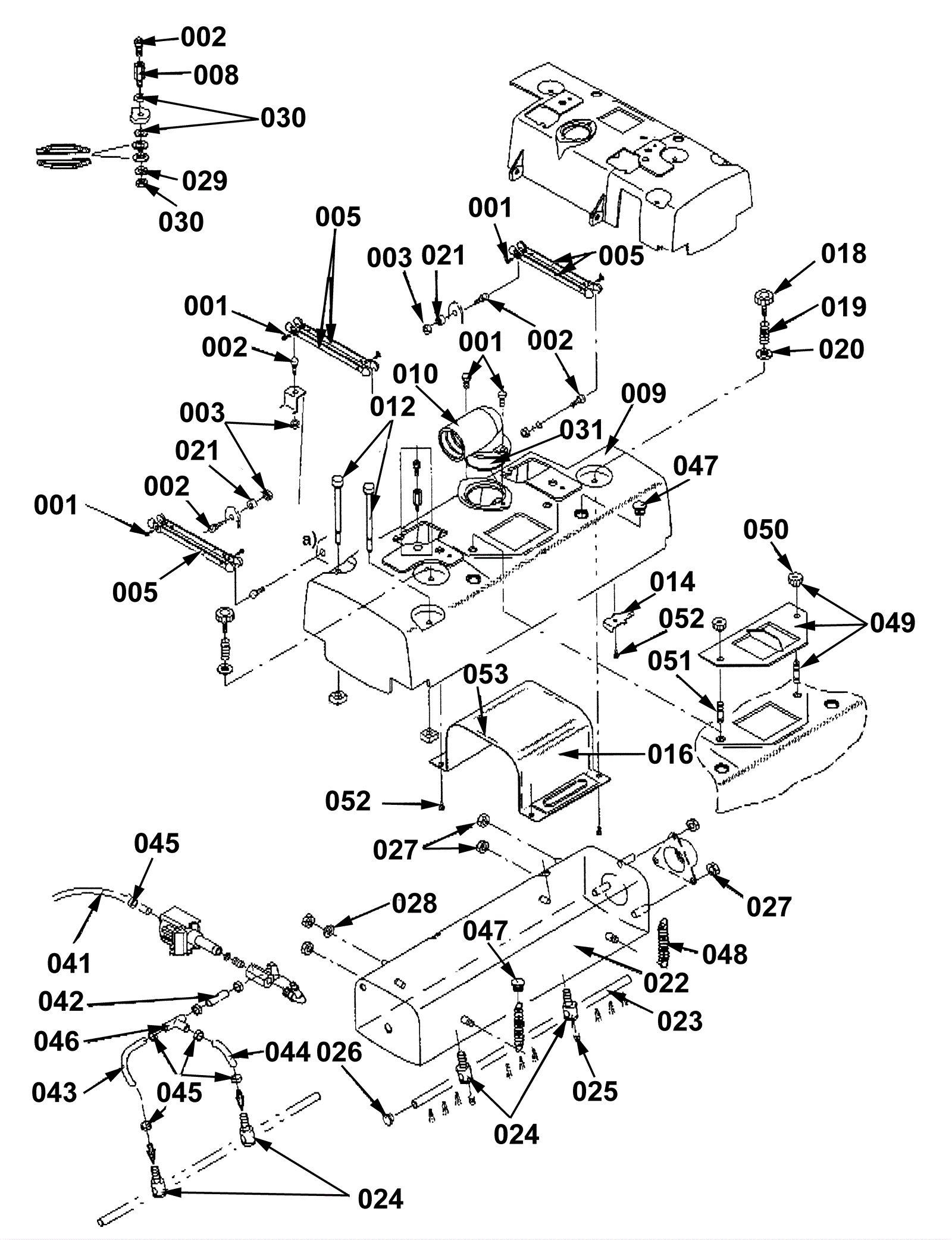

COMBIMAT 300 Squeegee and Brush Housing Assembly

#PartDescriptionPriceReqNotesAvailability
001 192-0377 Screw M5 x 10mm self-tapping $2.44 8 usually ships 30-75 days
002 192-1880 Pivot ball $5.98 6 usually ships 1-5 days
003 192-0347 Nut M8 hex $0.89 18 ships same day
005a 192-1713 Articulated lever $6.06 6 Series 02 (after 05.2004) usually ships 1-5 days
005b 192-1713 Articulated lever $6.06 3 Series 02 (before 07.1997) usually ships 1-5 days
008 192-3440 Eccentric shaft $16.41 1 usually ships 1-5 days
009 192-4528 Squeegee housing 18 inch $2.44 1 usually ships 1-5 days
010 192-3712 Flange $13.75 2 usually ships 30-75 days
011 192-0377 Screw M5 x 10mm self-tapping $2.44 2 Series 02 (07.1997 to 05.2004) usually ships 30-75 days
012 192-6560 Spindle $14.41 2 usually ships 30-75 days
013 192-6048 Retaining ring 6A (OBSOLETE) $2.20 2 Series 02 (07.1997 to 05.2004) usually ships 1-5 days
014 192-6381 Bracket $8.09 1 usually ships 1-5 days
015 192-1240 Screw M5 x 10mm raised cheese head $3.25 6 Series 02 (07.1997 to 05.2004) usually ships 30-75 days
016 192-3064 Cover $62.81 1 usually ships 1-5 days
018a 192-4677 Knurled cap M6 $3.93 2 Series 02 (before 07.1997) usually ships 30-75 days
019 192-5677 Pressure spring $2.44 2 usually ships 30-75 days
020b 192-7421 Washer $2.44 2 Series 02 (before 07.1997) usually ships 30-75 days
020c 192-0216 Washer $1.22 2 Series 02 (before 03.1996) ships same day
021 192-2369 Bushing $3.30 2 usually ships 30-75 days
022 192-2290 Brush housing $204.61 1 usually ships 1-5 days
023 192-4627 Jet tube $51.38 1 usually ships 1-5 days
024 192-5166 Nipple $10.63 2 usually ships 30-75 days
025 192-4195 Screw M4 x 6 hex head grub $2.44 2 usually ships 1-5 days
026 192-8577 Plug $2.44 2 ships same day
027 999-1308 Nut M6-1 hex stainless steel $0.99 7 ships same day
028 192-0179 Washer M6 serrated lock $2.44 1 usually ships 30-75 days
029 192-3310 Spring washer $3.78 2 usually ships 1-5 days
030 192-3339 Spacer $2.44 3 usually ships 1-5 days
031 192-0252 O-ring $0.89 1 ships same day
041 192-0639 Solution hose (sold by the inch) $0.99 25 in ships same day
042 192-0639 Solution hose (sold by the inch) $0.99 7 in ships same day
043 192-0639 Solution hose (sold by the inch) $0.99 9 in ships same day
044 192-0639 Solution hose (sold by the inch) $0.99 2 in ships same day
045 192-0642 Hose clamp $3.00 7 ships same day
046 192-7110 T-nipple $3.37 1 usually ships 1-5 days
047 192-6764 Plug (OBSOLETE) $3.76 2 usually ships 30-75 days
048 192-7072 Tension spring $3.62 4 usually ships 30-75 days
049 192-3173 Cover set $24.54 1 Series 02 (after 05.2004) usually ships 1-5 days
050 192-4682 Nut M5 knurled $4.76 2 Series 02 (after 05.2004) usually ships 30-75 days
051 192-4067 Grub screw M5 x 16 $2.44 2 Series 02 (after 05.2004) usually ships 1-5 days
052 192-0377 Screw M5 x 10mm self-tapping $2.44 6 Series 02 (after 05.2004) usually ships 30-75 days
053 192-6310 Seal strip (sold by the inch) $0.99 20 in Series 02 (after 05.2004) ships same day
N/S 192-0964 Washer $2.44 3 Series 02 (after 05.2004) ships same day
N/S 192-1877 Ball cup (OBSOLETE) $5.75 3 Series 02 (07.1997 to 05.2004) usually ships 1-5 days
N/S 192-6240 Safety clip (OBSOLETE) $2.20 3 usually ships 1-5 days
