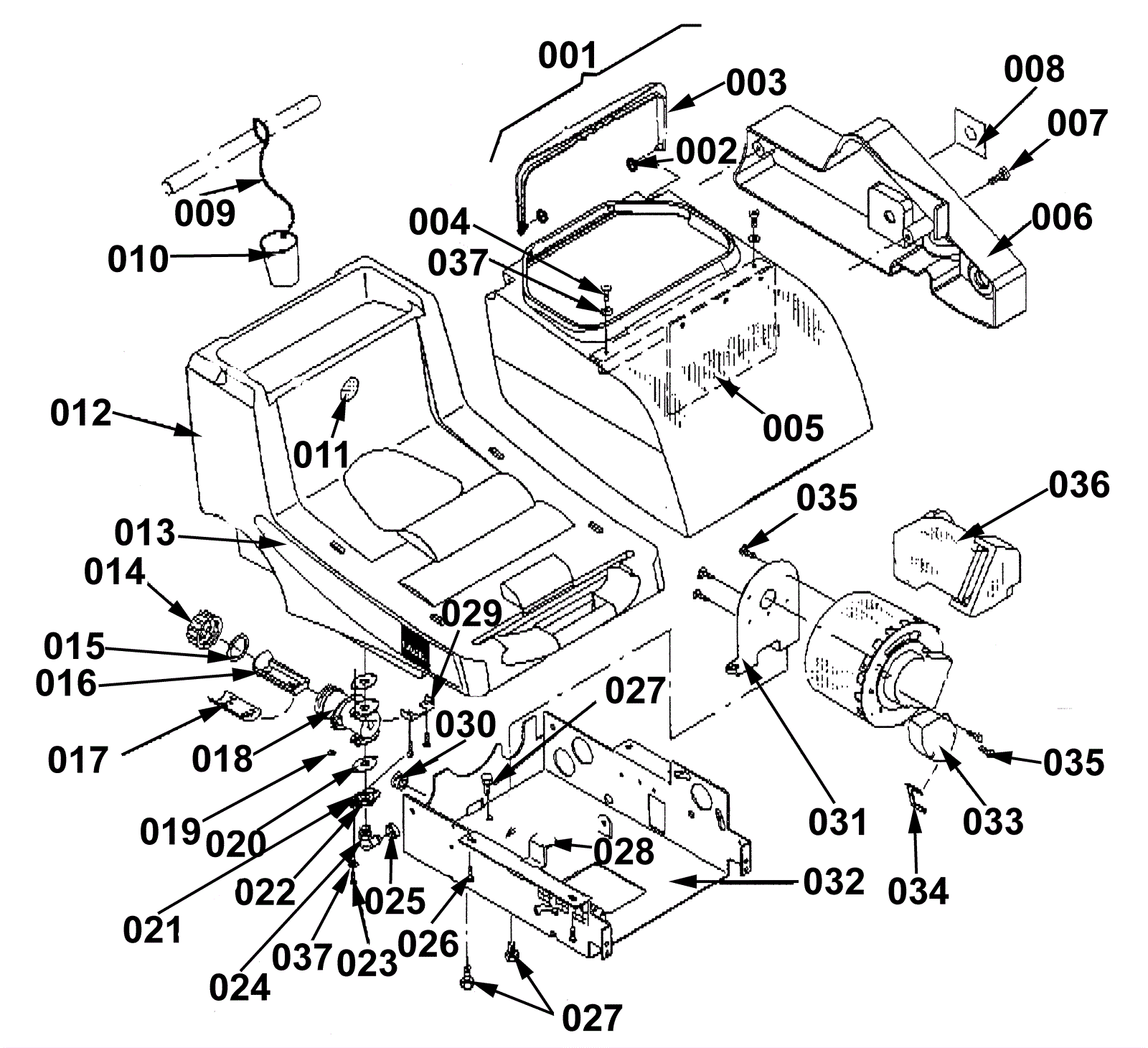

COMBIMAT 300 Tank Assembly

#PartDescriptionPriceReqNotesAvailability
001 192-7014 Complete tank $264.30 1 usually ships 1-5 days
002 192-5385 O-ring $2.44 2 usually ships 30-75 days
003 192-4150 Handle $3.10 1 usually ships 30-75 days
004a 192-0148 Screw M4 x 10mm raised cheese head $2.44 2 Series 02 (07.1997 - 05.2004) usually ships 30-75 days
004b 192-8909 Screw M4 x 10 raised cheese head Call for price 2 Series 02 (after 05.2004) usually ships 1-5 days
005 192-5786 Protection strip $55.80 1 usually ships 30-75 days
006 192-3063 Cover $25.88 1 usually ships 30-75 days
007 192-0162 Screw M5 x 8 self tapping forming $2.88 2 ships same day
008 192-6990 Water regulating symbol $3.74 1 usually ships 1-5 days
009 192-0714 Cord (sold by the inch) $2.44 19 in Series 02 (07.1997 - 05.2004) ships same day
010 192-3357 Measuring cup $3.91 1 Series 02 (07.1997 - 05.2004) ships same day
011 192-0185 Decal (blue) $2.44 1 Series 02 (07.1997 - 05.2004) usually ships 30-75 days
012 192-6510 Solution tank $328.81 1 usually ships 30-75 days
013 192-3255 Decorative strip $20.27 1 usually ships 1-5 days
014 292-0082 Filter kit $11.11 1 ships same day
015 292-0082 Filter kit $11.11 1 ships same day
016 292-0082 Filter kit $11.11 1 ships same day
017 192-5898 Quick connector $10.25 1 Series 02 (07.1997 - 05.2004) usually ships 30-75 days
018 192-0910 Filter housing $6.67 1 ships same day
019 192-0915 Nut M4 square $3.30 2 ships same day
020 192-0914 Gasket $2.44 2 ships same day
021 192-6286 Screw KA 40 x 18 $2.44 2 Series 02 (07.1997 - 05.2004) usually ships 30-75 days
022 192-3728 Flange $8.50 1 usually ships 30-75 days
023 192-0912 Screw M4 x 16mm raised head $2.44 2 ships same day
024 192-4730 Elbow $3.78 1 usually ships 1-5 days
025 192-0642 Hose clamp $3.00 1 Series 02 (07.1997 - 05.2004) ships same day
026 192-0968 Screw KA 60 x 16 $4.40 4 Series 02 (07.1997 - 05.2004) ships same day
027a 192-0509 Screw M8 x 12mm hex head $2.52 2 Series 02 (07.1997 - 05.2004) usually ships 30-75 days
027b 192-4228 Screw M8 x 16mm hex head $2.44 2 Series 02 (after 05.2004) usually ships 30-75 days
028a 192-2504 Cable clamp (OBSOLETE) $7.48 1 Series 02 (07.1997 - 05.2004) usually ships 1-5 days
028b 192-0148 Screw M4 x 10mm raised cheese head $2.44 1 Series 02 (07.1997 - 05.2004) usually ships 30-75 days
028c 192-0039 Nut M4 hex $4.10 1 Series 02 (07.1997 - 05.2004) usually ships 30-75 days
028d 192-2502 Cable clamp $2.44 1 Series 02 (after 05.2004) usually ships 30-75 days
028f 192-0162 Screw M5 x 8 self tapping forming $2.88 1 Series 02 (after 05.2004) ships same day
029 192-6842 Bracket $11.79 1 Series 02 (07.1997 - 05.2004) usually ships 1-5 days
030 192-4062 Grommet (OBSOLETE) $2.20 1 usually ships 1-5 days
031 192-2141 Bracket $78.58 1 usually ships 1-5 days
032 192-2757 Chassis $233.65 1 usually ships 30-75 days
033 192-3065 Cover $5.40 1 Series 02 (07.1997 - 05.2004) usually ships 1-5 days
034 192-5753 Cable cover $2.44 1 Series 02 (07.1997 - 05.2004) usually ships 1-5 days
035 192-0767 Screw KA 40 x 10 $3.91 7 Series 02 (07.1997 - 05.2004) ships same day
036 192-5243 Noise absorbing block $33.58 1 usually ships 1-5 days
037 192-0325 Washer $2.44 4 usually ships 30-75 days
N/S 192-0008 Self-adhesive plate (OBSOLETE) $0.61 2 usually ships 30-75 days
N/S 192-0102 7 3/4 inch cable tie $2.44 5 usually ships 30-75 days
N/S 192-0218 12mm teflon tape $14.77 1 usually ships 1-5 days
N/S 192-0973 3 1/4 inch cable tie $2.44 2 usually ships 30-75 days
N/S 192-6992 Filter label $2.44 1 usually ships 30-75 days
