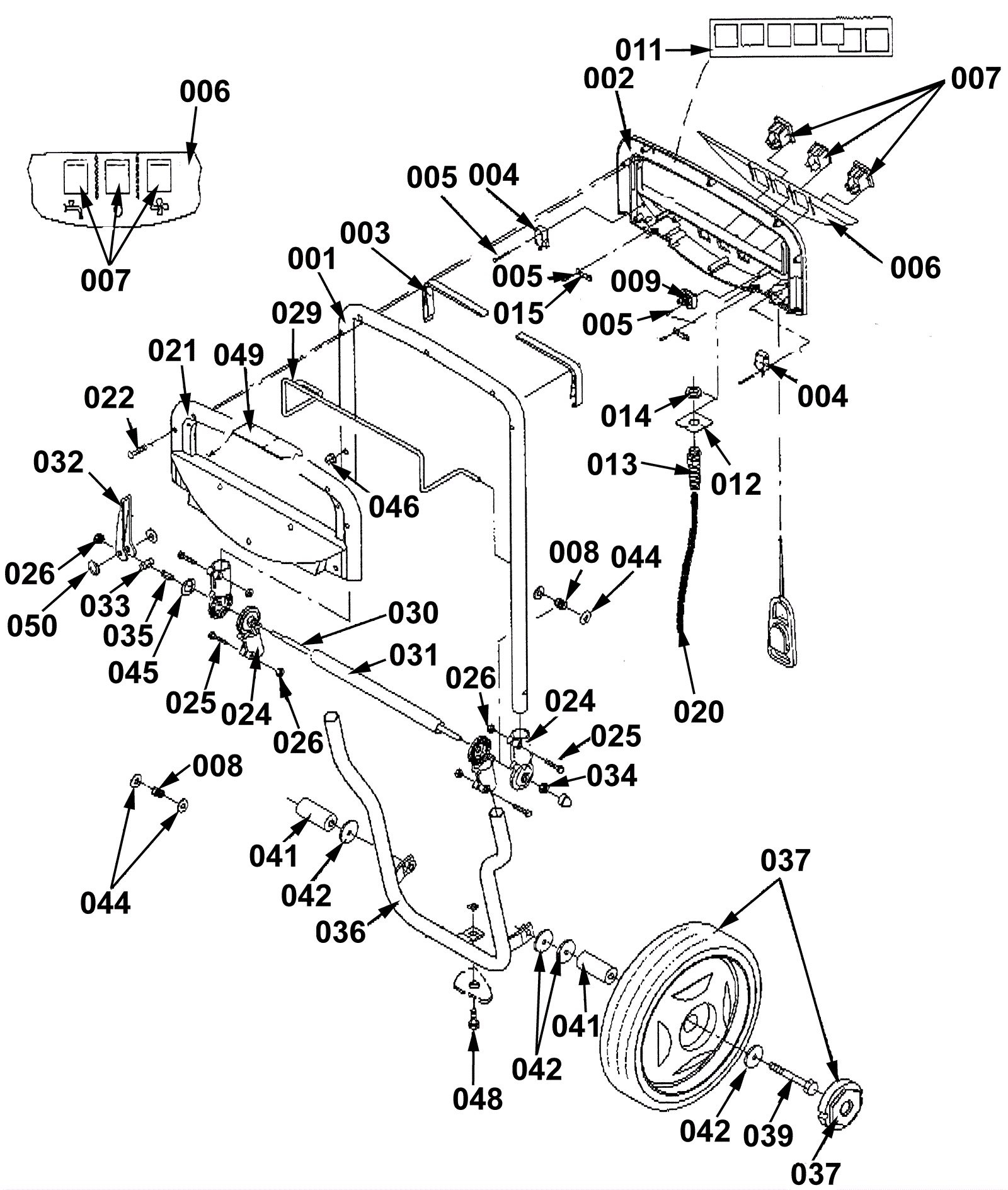

COMBIMAT 300 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
001 192-4125 Handle $250.13 1 usually ships 19-25 days
002 192-3866 Handle front $21.67 1 usually ships 1-5 days
003 192-6953 Switch lever $5.84 2 usually ships 1-5 days
004 192-0681 Microswitch $14.18 9 usually ships 19-25 days
005 192-0452 Screw for plastic KA 30 x 16mm $2.56 1 usually ships 19-25 days
006 192-3815 Foil $43.74 3 usually ships 1-5 days
007 192-6098 Rocker switch $4.49 2 usually ships 19-25 days
008 192-0559 Pressure spring $2.44 1 usually ships 19-25 days
009 192-0954 3 way connection block $3.97 1 usually ships 19-25 days
011 192-5484 Pictograph $11.29 1 usually ships 19-25 days
012 192-5546 Plate $3.28 1 usually ships 1-5 days
013 192-2492 Cable bushing $14.74 1 usually ships 1-5 days
014 192-5332 Nut $2.44 1 usually ships 1-5 days
015 192-2496 Cable clamp $2.56 2 usually ships 19-25 days
020 192-2433 Cable (OBSOLETE) $75.78 1 usually ships 1-5 days
021 192-1829 Handle back $21.67 1 usually ships 1-5 days
022 192-6286 Screw KA 40 x 18 $2.56 1 usually ships 19-25 days
024 192-6915 Swing support $15.72 10 usually ships 19-25 days
025 192-0899 Screw M6 x 25mm hex head $3.80 4 After 05.2004 ships same day
026 999-1308 Nut M6-1 hex stainless steel $0.99 4 ships same day
029 192-4289 Handle $15.85 5 usually ships 19-25 days
030 192-1884 Bar $44.36 1 usually ships 19-25 days
031 192-5550 Plate $20.42 1 usually ships 19-25 days
032 192-4747 Lever $17.69 1 usually ships 19-25 days
033 192-1761 Axle $8.80 1 usually ships 19-25 days
034 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
035 192-2365 Bushing $11.87 1 usually ships 19-25 days
036 192-2140 Bracket $325.64 1 ships same day
037 192-0649 Wheel (includes hubcap) $33.08 2 usually ships 19-25 days
039 192-4234 Screw M8 x 70 hex head $2.56 2 ships same day
041 192-0648 Bushing $19.82 2 usually ships 19-25 days
042 192-1222 Tool support $10.98 5 After 05.2004 usually ships 19-25 days
044 192-3340 Spacer $5.26 4 usually ships 19-25 days
045 192-8576 Ring $11.02 1 usually ships 19-25 days
046 192-2507 Cable clip $3.72 6 usually ships 1-5 days
048 192-4228 Screw M8 x 16mm hex head $2.44 1 After 05.2004 usually ships 19-25 days
049 192-5425 Packing strip $5.90 1 usually ships 1-5 days
050 192-6668 Star cap $2.56 2 usually ships 19-25 days
