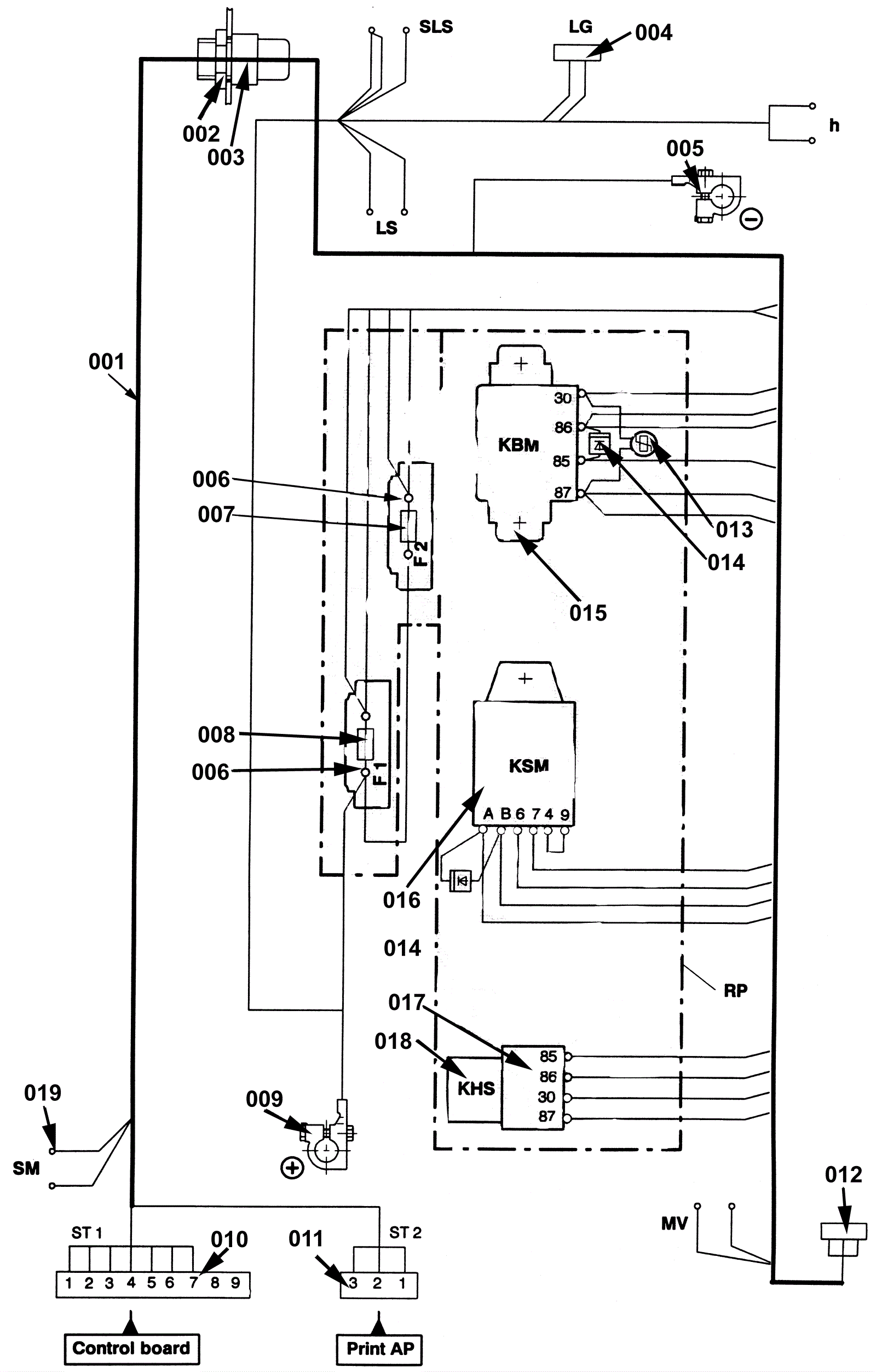

COMBIMAT 600 Electrical Diagram - Series 06 Part 1

#PartDescriptionPriceReqNotesAvailability
001 192-1247 Cable strand complete (without red plug) (OBSOLETE) $273.53 1 usually ships 1-5 days
002 192-1248 Lock nut $2.44 1 usually ships 1-5 days
003 192-1249 Cable bushing $6.11 1 usually ships 1-5 days
004a 192-0686 2-Pole plug (OBSOLETE) $2.20 1 usually ships 1-5 days
004b 192-1255 Socket insert (OBSOLETE) $2.20 2 usually ships 1-5 days
005a 192-1250 Battery clamp (negative) (OBSOLETE) $30.51 1 usually ships 1-5 days
005b 192-0886 Battery post cover $13.31 ships same day
006a 192-1251 Fuse holder (OBSOLETE) $17.85 2 usually ships 30-75 days
006b 192-0377 Screw M5 x 10mm self-tapping $2.44 4 usually ships 30-75 days
007 192-0873 Fuse strip 25 amp (OBSOLETE) $2.20 1 usually ships 30-75 days
008 192-1252 Fuse strip 40 amp $2.44 1 usually ships 30-75 days
009a 192-1253 Battery clamp (positive) (OBSOLETE) $30.68 1 usually ships 30-75 days
009b 192-0886 Battery post cover $13.31 ships same day
010a 192-1254 9 - Pole plug (OBSOLETE) $2.49 1 usually ships 1-5 days
010b 192-1255 Socket insert (OBSOLETE) $2.20 usually ships 1-5 days
011a 192-1256 3 - Pole plug (OBSOLETE) $2.20 1 usually ships 1-5 days
011b 192-1255 Socket insert (OBSOLETE) $2.20 usually ships 1-5 days
012a 192-1257 Plug housing (OBSOLETE) $4.08 3 usually ships 1-5 days
012b 192-1258 Plug tongue (OBSOLETE) $2.20 usually ships 1-5 days
013 192-1259 Overvoltage suppressor (OBSOLETE) $2.74 1 usually ships 1-5 days
014 192-1260 Diode 1 volt 3 amp (OBSOLETE) $4.55 2 usually ships 1-5 days
015a 192-0374 Relay 24V $392.62 1 usually ships 30-75 days
015b 192-0162 Screw M5 x 8 self tapping forming $2.88 2 ships same day
016a 192-0372 24V relay (OBSOLETE) $76.92 1 usually ships 30-75 days
016b 192-0060 Screw M4 x 8 self tapping forming $2.44 2 usually ships 30-75 days
017a 192-0871 Relay console (OBSOLETE) $4.62 1 usually ships 1-5 days
017b 192-0162 Screw M5 x 8 self tapping forming $2.88 1 ships same day
018 192-0870 Relay 24V $8.93 1 ships same day
019a 192-1261 2 - Pole plug (OBSOLETE) $2.20 1 usually ships 1-5 days
019b 192-1262 Socket insert (OBSOLETE) $2.20 usually ships 1-5 days
