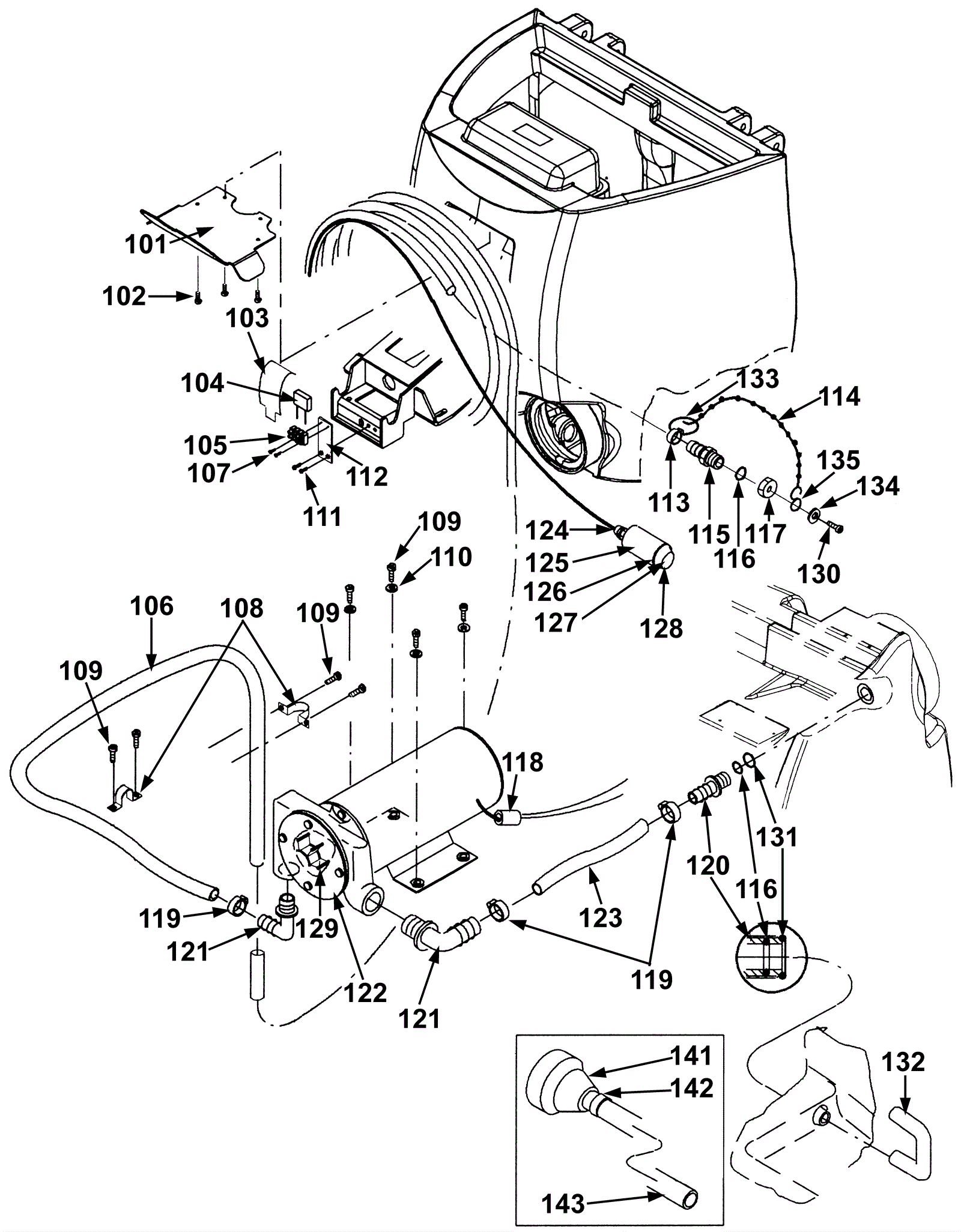

COMBIMATSWINGO3500 Drainage Pump Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-1222 Tool support $10.45 1 usually ships 30-75 days
102 192-1571 Screw M50 x 16mm $2.44 4 (series 6) ships same day
103 192-1223 Protection (OBSOLETE) $4.59 1 usually ships 1-5 days
104 192-0952 Noise condenser (OBSOLETE) $4.43 1 usually ships 1-5 days
105 192-1224 4 way connection block $3.98 1 ships same day
106 192-0203 Hose (sold by the inch) $0.99 126 in usually ships 30-75 days
107 192-0054 Screw M3 x 16mm raised cheese head $4.76 2 ships same day
108 192-2803 Clamp (OBSOLETE) $2.44 2 usually ships 1-5 days
109a 192-1066 Screw 40 x 12 $4.28 8 (before 01.2004) usually ships 30-75 days
109b 192-0625 Screw 50 x 25 for plastic $3.49 4 (after 01.2004) ships same day
110a 192-0149 Washer $2.44 4 (before 01.2004) ships same day
110b 192-0971 Washer $2.44 4 (after 01.2004) ships same day
111 192-0035 Screw M5 x 16mm socket head cap $1.11 2 ships same day
112 192-1226 Bracket (OBSOLETE) $31.99 1 usually ships 1-5 days
113 192-0204 Hose clamp $5.86 1 usually ships 30-75 days
114 192-2732 Chain (sold by the inch) $14.48 6 in usually ships 30-75 days
115 192-1227 Nipple $47.86 1 usually ships 30-75 days
116 192-1228 O-ring $2.44 2 usually ships 30-75 days
117 192-1229 Tapped cap $35.97 1 usually ships 30-75 days
118 192-1153 Toroidal choke $9.41 1 usually ships 30-75 days
119 192-1230 Hose clamp $2.76 3 usually ships 30-75 days
120 192-1232 Nipple $20.39 1 usually ships 30-75 days
121 192-1233 L-connector $7.69 2 usually ships 1-5 days
122 192-1234 Waste drainage pump $705.54 1 usually ships 30-75 days
123 192-0203 Hose (sold by the inch) $0.99 6 in usually ships 30-75 days
124a 192-0053 Cable bushing $4.10 1 (series 1) usually ships 30-75 days
124b 192-2573 Cable strand (OBSOLETE) $260.88 1 (series 1) usually ships 30-75 days
124c 192-2490 Cable bushing $3.78 1 (series 2) usually ships 30-75 days
125 192-1235 Switch housing $19.78 1 usually ships 30-75 days
126 192-1236 Adapter $18.56 1 usually ships 30-75 days
127 192-1237 Switch $14.23 1 usually ships 30-75 days
128 192-1238 Protection cap $38.34 1 usually ships 30-75 days
129 192-1239 Impeller $106.71 1 usually ships 30-75 days
130 192-1240 Screw M5 x 10mm raised cheese head $3.25 1 usually ships 30-75 days
131 192-0227 O-ring 17.2 x 2.62mm $2.44 1 usually ships 30-75 days
132 192-1241 Rising pipe $37.97 1 usually ships 1-5 days
133 192-1242 Key ring 16 $2.44 1 usually ships 30-75 days
134 192-0705 Washer $2.44 1 usually ships 30-75 days
135 192-1243 S-hook $2.44 1 usually ships 30-75 days
141 192-0205 Filling hose $2.93 1 usually ships 30-75 days
142 192-0204 Hose clamp $5.86 1 usually ships 30-75 days
143 192-2803 Clamp (OBSOLETE) $2.44 80 in usually ships 1-5 days
N/S 192-0102 7 3/4 inch cable tie $2.44 1 (series 6) usually ships 30-75 days
N/S 192-0218 12mm teflon tape $14.77 1 (series 6) usually ships 1-5 days
N/S 192-1246 Insulating tape $22.96 1 usually ships 1-5 days
N/S 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 (series 6) ships same day
