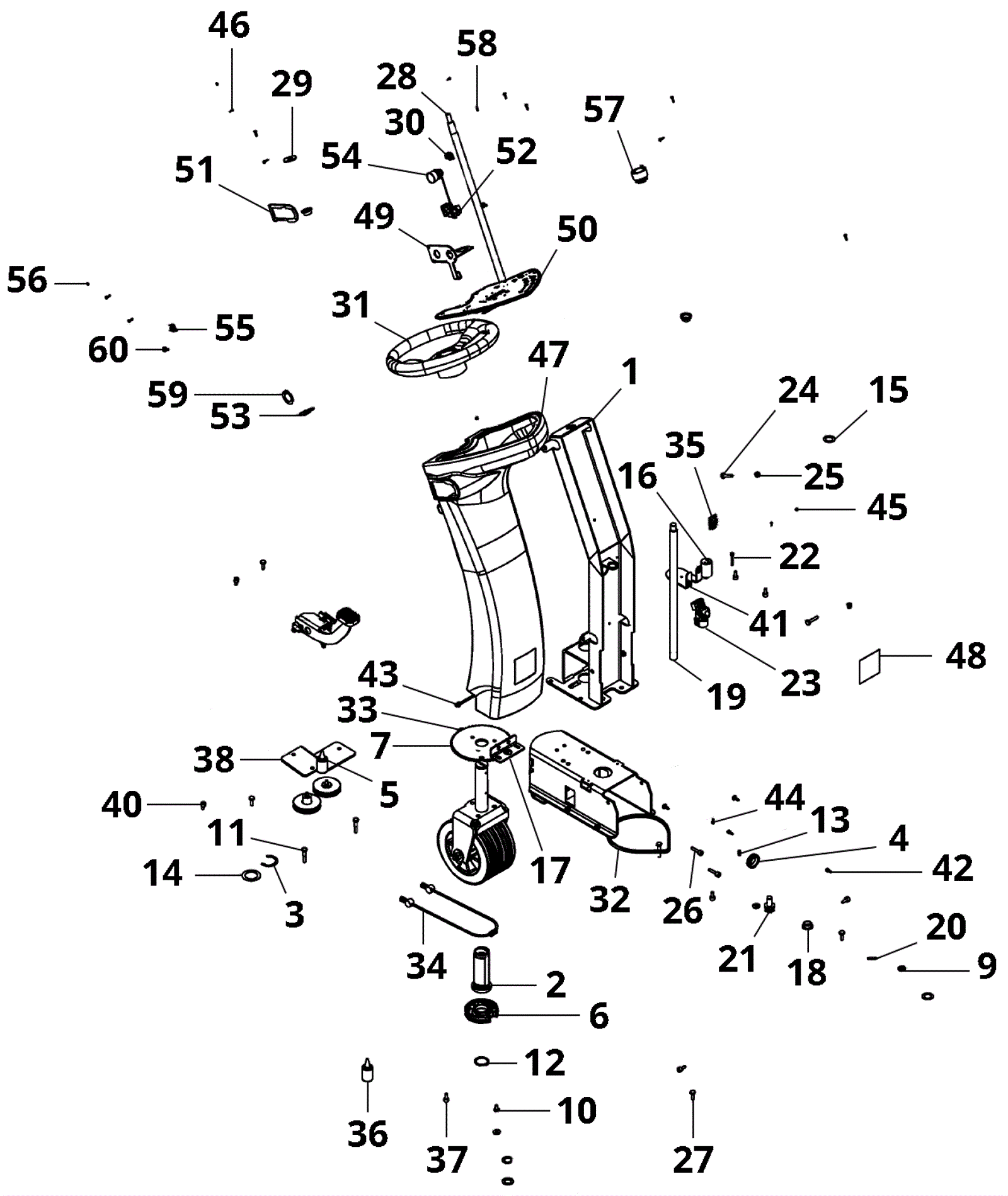

COMBIMATSWINGO3500 Steering Column Assembly

#PartDescriptionPriceReqNotesAvailability
1 192-1063 Bracket $271.26 1 usually ships 1-5 days
2 192-1952 Bearing bushing $246.10 1 usually ships 30-75 days
3 192-6043 Retaining ring 45 x 1-3/4 $4.88 1 usually ships 1-5 days
4 192-1082 Grommet $2.44 1 usually ships 30-75 days
5 192-1845 50 Gram balco glue tube $86.65 1 usually ships 1-5 days
6 192-1219 Rope roller $23.20 1 usually ships 30-75 days
7 192-1220 Chain sprocket $96.42 1 usually ships 1-5 days
8 192-1215 Stop bolt $15.09 1 usually ships 1-5 days
9 192-0079 Washer $0.89 3 ships same day
10 192-0509 Screw M8 x 12mm hex head $2.52 1 usually ships 30-75 days
11 192-9212 Screw M8 x 40/22mm hex $4.35 3 usually ships 30-75 days
12 192-0485 Retaining ring $5.08 1 usually ships 30-75 days
13 192-4854 Lubricator nipple $7.69 1 usually ships 30-75 days
14 292-8526 Bearing disc $7.40 1 usually ships 1-5 days
15 192-1077 Spacer disc $2.44 4 usually ships 30-75 days
16 292-0965 Stand off Call for price 1 usually ships 30-75 days
17 192-1073 Angled bracket $5.45 1 usually ships 30-75 days
18 192-1044 Slide bearing $3.37 3 ships same day
19 192-1070 Axle $67.23 1 usually ships 30-75 days
20 192-1076 Extensible pin 5 x 24 $5.69 1 usually ships 30-75 days
21 192-1075 Chain wheel $49.04 1 usually ships 30-75 days
22 192-1003 Screw M5 x 35mm raised cheese head torx $2.44 1 ships same day
23 192-1069 Cross joint $121.80 1 usually ships 30-75 days
24 192-0835 Screw M8 x 35mm hex head $3.74 2 usually ships 30-75 days
25 192-0510 Nut M8 self locking $2.44 2 ships same day
26 192-0603 Screw hex $4.28 2 usually ships 30-75 days
27 192-0153 Screw M8 x 20mm hex head $0.89 4 ships same day
28 192-1053 Axle $91.21 1 usually ships 1-5 days
29 192-1078 Washer $0.89 1 ships same day
30 192-1049 Nut M12 self locking $3.66 1 ships same day
31 192-1051 Steering wheel $250.75 1 ships same day
32 192-1216 3/8 inch roller chain $36.29 1 usually ships 30-75 days
33 192-1217 3/8 inch chain master link $2.44 1 usually ships 30-75 days
34 192-1218 Directing rope $33.09 1 usually ships 30-75 days
35 292-0410 Cover $9.77 1 ships same day
36 192-1872 Grease $11.99 1 ships same day
37 192-0078 Screw M8 x 16mm socket head $2.44 6 ships same day
38 292-0966 Support Call for price 1 usually ships 30-75 days
39 292-9099 Pedal set $448.40 1 usually ships 30-75 days
40 192-0364 Screw M8 x 12mm socket head $2.52 2 usually ships 30-75 days
41 292-0967 Sensor holder Call for price 1 usually ships 30-75 days
42 192-0077 Screw M5 x 12mm socket head $0.89 2 ships same day
43 292-8485 Sensor $245.18 1 usually ships 30-75 days
44 192-0425 Screw M4 x 10mm socket head cap $2.44 2 usually ships 30-75 days
45 192-0235 Nut M4 self locking $2.44 2 ships same day
46 192-0003 Screw M3 x 10mm raised head $1.13 4 ships same day
47 192-1068 Hood $363.54 1 usually ships 1-5 days
48 192-1084 TASKI decal $3.54 1 usually ships 30-75 days
49 292-0968 Holder Call for price 1 usually ships 30-75 days
50 292-0969 Control board set Call for price 1 usually ships 30-75 days
51 292-0970 Gasket Call for price 1 usually ships 30-75 days
52 292-8535 Key switch assembly $62.37 1 ships same day
53 292-5254 Steel key $3.78 1 ships same day
54 192-8729 Actuator stop button $160.44 1 ships same day
55 192-8721 Microswitch $27.98 2 ships same day
56 192-0677 Washer M3 $2.44 2 usually ships 30-75 days
57 192-6515 Horn $24.88 1 ships same day
58 192-0547 Screw KA 40 x 14 $2.44 10 ships same day
59 292-0971 Decal Call for price 1 usually ships 30-75 days
60 192-0968 Screw KA 60 x 16 $4.40 4 ships same day
N/S 192-0973 3 1/4 inch cable tie $2.44 1 usually ships 30-75 days
