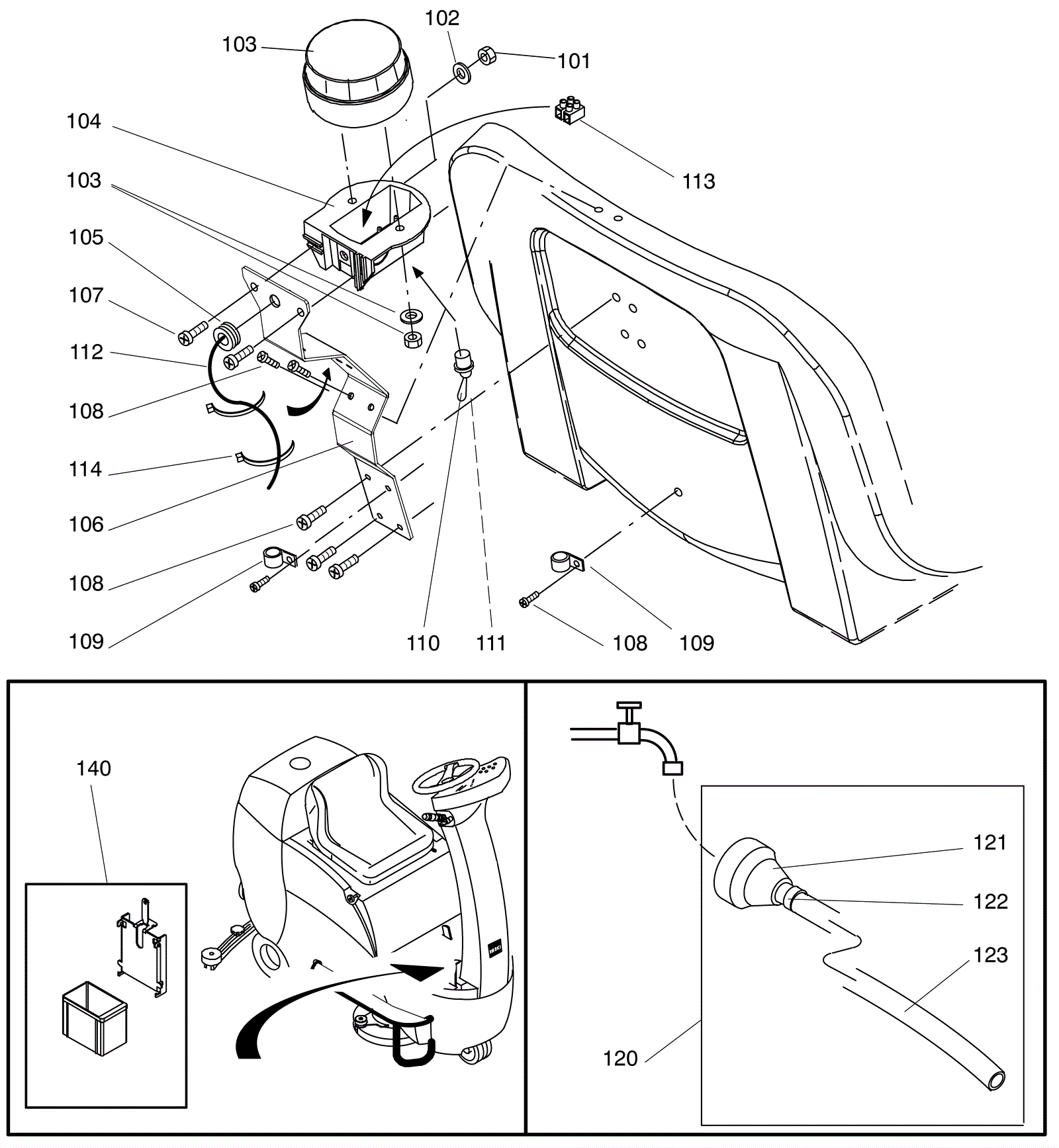

COMBIMATSWINGO3500 Warning Light and Accessories Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-0039 Nut M4 hex $4.10 2 usually ships 30-75 days
102 192-1195 Washer M4 $2.44 2 ships same day
103 192-1196 Flashing light $291.08 1 ships same day
104 192-1197 Support $64.42 1 ships same day
105 192-1198 Grommet $2.44 1 usually ships 30-75 days
106 192-1199 Bracket $60.69 1 usually ships 30-75 days
107 192-0148 Screw M4 x 10mm raised cheese head $2.44 2 usually ships 30-75 days
108 192-1066 Screw 40 x 12 $4.28 7 usually ships 30-75 days
109 192-1200 P clamp $5.01 2 usually ships 30-75 days
110 192-1201 Toggle switch $53.06 1 usually ships 30-75 days
111 192-1202 Switch boot $26.69 1 usually ships 30-75 days
112 192-1203 Warning light and seat switch cable $17.71 1 (4 wires that branch into two pairs) ships same day
113 192-2895 2 way connection block $2.44 1 usually ships 30-75 days
114 192-0973 3 1/4 inch cable tie $2.44 2 usually ships 30-75 days
120 292-5375 Filling hose with universal water coupling $60.57 1 (includes 121-123) usually ships 30-75 days
121 192-0205 Filling hose $2.93 1 usually ships 30-75 days
122 192-0204 Hose clamp $5.86 1 usually ships 30-75 days
123 192-0203 Hose (sold by the inch) $0.99 79 in usually ships 30-75 days
140 292-8525 Dirt container $82.18 1 (optional) usually ships 1-5 days
