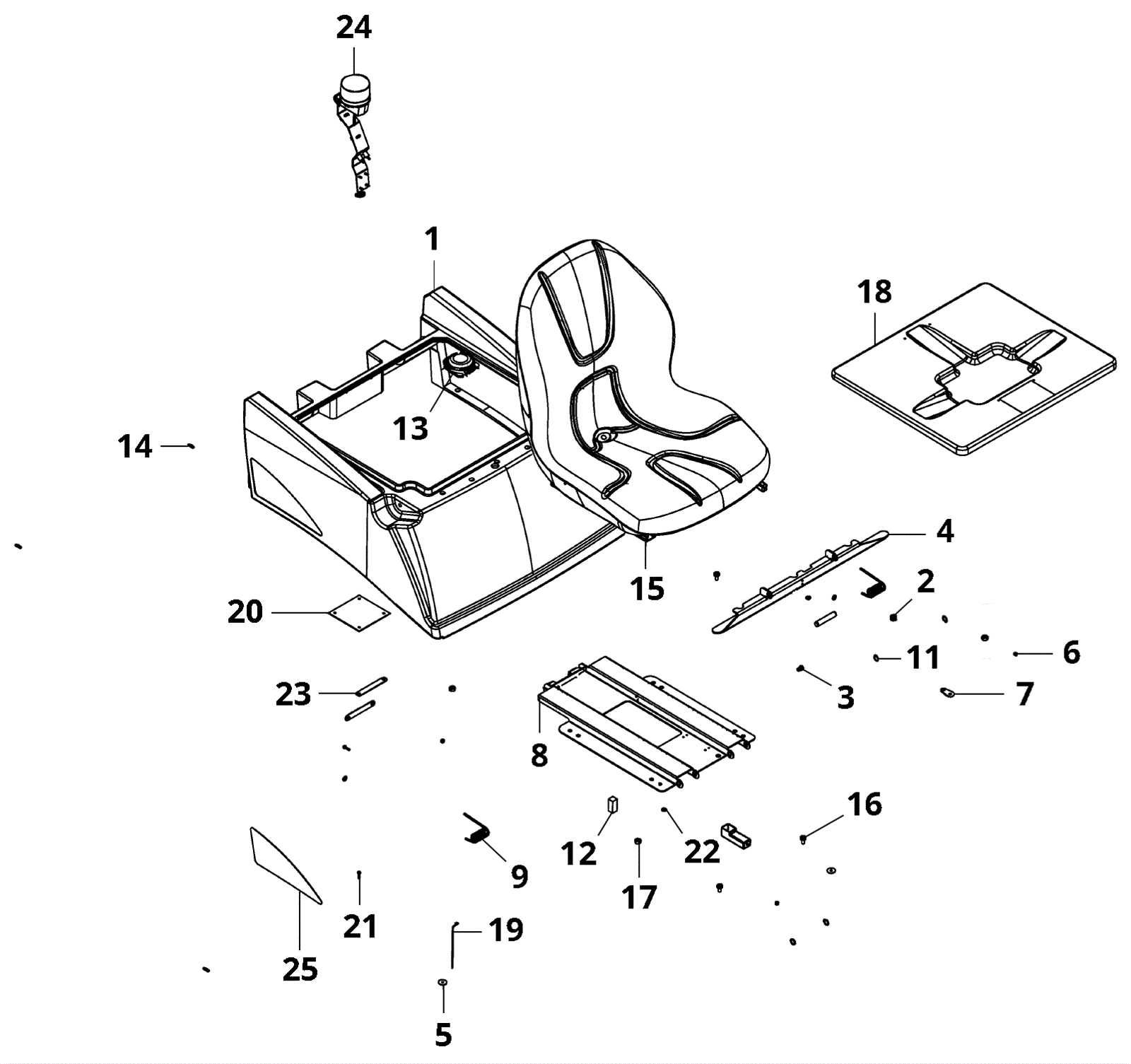

COMBIMATSWINGO3500 Driver Seat Assembly

#PartDescriptionPriceReqNotesAvailability
1 192-4273 Hood $542.37 1 usually ships 30-75 days
2 192-0627 Grommet $2.44 1 usually ships 30-75 days
3 192-9150 Stopper $2.44 1 usually ships 1-5 days
4 192-1187 Hinge $89.01 1 ships same day
5 192-0705 Washer $2.44 2 usually ships 30-75 days
6 192-0340 Nut M5 hex self locking $2.93 3 usually ships 30-75 days
7 192-6383 Shackle $4.84 1 usually ships 1-5 days
8 192-1193 Seat console $127.60 1 usually ships 30-75 days
9 192-1184 Tension spring $15.53 2 ships same day
11 192-6037 Retaining ring $0.89 4 ships same day
12 292-8523 Buffer $8.62 2 usually ships 30-75 days
13a 192-1191 Seat switch assembly $152.94 1 (includes 13b) ships same day
13b 192-2919 Disc $2.44 1 usually ships 30-75 days
14 192-0973 3 1/4 inch cable tie $2.44 3 usually ships 30-75 days
15 192-1183 Driver seat $505.13 1 ships same day
16 999-1409 Screw M8-1.25 x 12mm socket head stainless steel $1.57 4 usually ships 1-5 days
17 192-0347 Nut M8 hex $0.89 4 ships same day
18 192-1928 Battery cover $178.83 1 usually ships 30-75 days
19 192-0714 Cord (sold by the inch) $2.44 17 in ships same day
20 192-6156 Rubber plate $7.03 1 usually ships 30-75 days
21 192-0912 Screw M4 x 16mm raised head $2.44 4 ships same day
22 192-0149 Washer $2.44 4 ships same day
23 192-5559 Plate $13.26 2 ships same day
24 292-0977 Flashlight $564.66 1 (models 8004741 and 7525162) usually ships 30-75 days
25 192-3246 Swingo 2500 decal $9.11 1 usually ships 30-75 days
N/S 192-1186 Axle $11.07 2 usually ships 30-75 days
N/S 192-0057 6 pole female plug $2.44 1 ships same day
N/S 192-1620 6 pole male plug $2.52 1 ships same day
N/S 192-1203 Warning light and seat switch cable $17.71 1 (version 6) ships same day
N/S 192-1189 Snap hook $2.44 1 (version 6) usually ships 30-75 days
N/S 192-0348 Screw M8 x 12mm truss head $2.44 4 (version 6) ships same day
N/S 292-8524 Disc $5.01 1 (version 6) usually ships 30-75 days
N/S 192-2919 Disc $2.44 1 (version 6) usually ships 30-75 days
