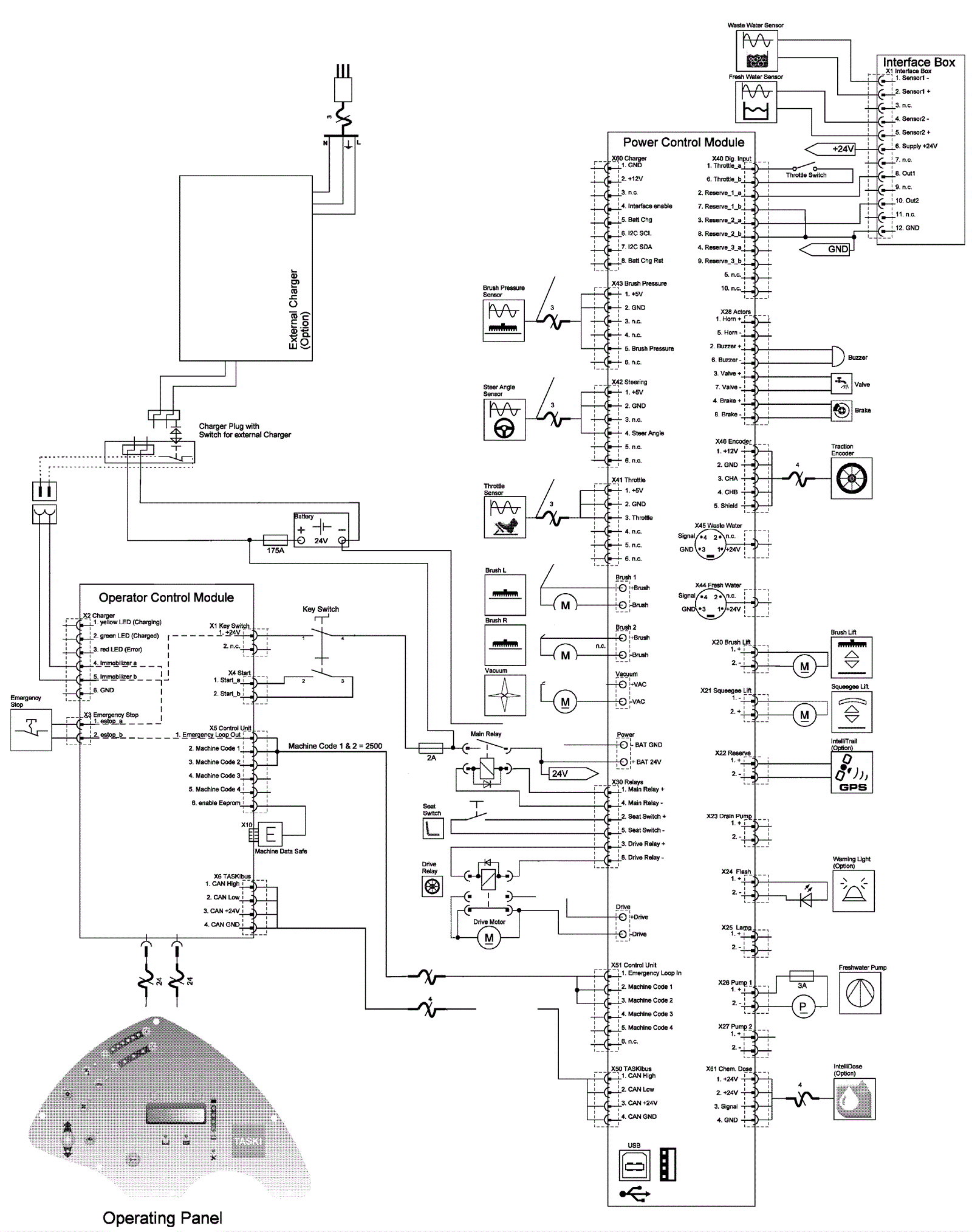

COMBIMATSWINGO3500 Wiring Diagram - After 01.2004

#PartDescriptionPriceReqNotesAvailability
292-0978 Wiring harness Call for price 1 usually ships 30-75 days
292-0979 Wiring harness Call for price 1 usually ships 30-75 days
292-0980 Wiring harness Call for price 1 usually ships 30-75 days
292-0981 Wiring harness Call for price 1 usually ships 30-75 days
292-0982 Wiring harness Call for price 1 usually ships 30-75 days
292-0983 Wiring harness Call for price 1 usually ships 30-75 days
292-0918 Wire harness $215.75 1 usually ships 30-75 days
292-0237 Wiring harness $253.61 1 usually ships 30-75 days
292-0343 175amp fuse $19.36 1 ships same day
292-0917 Wire 2 AWG (red) $70.08 1 usually ships 30-75 days
192-9553 Wiring harness (power board to J-fit option) $17.58 1 usually ships 30-75 days
292-5604 Cable $76.63 1 usually ships 30-75 days
292-0984 Wiring harness Call for price 1 usually ships 30-75 days
292-0985 Wiring harness Call for price 1 usually ships 30-75 days
292-5600 Connection cable $26.05 1 usually ships 1-5 days
192-1203 Warning light and seat switch cable $17.71 1 ships same day
292-5618 Cable $13.87 1 usually ships 1-5 days
292-5605 Cable $2.44 1 usually ships 1-5 days
292-5602 Wire $2.44 1 usually ships 1-5 days
292-5603 Cable $19.42 1 usually ships 1-5 days
292-5601 Wire $2.44 1 usually ships 1-5 days
192-1174 2amp fuse clip $5.81 1 ships same day
292-0986 Cable Call for price 1 usually ships 30-75 days
292-8486 Sensor $243.66 1 usually ships 30-75 days
292-8485 Sensor $245.18 1 usually ships 30-75 days
192-9770 Sensor $251.35 1 usually ships 30-75 days
292-0987 Wiring harness Call for price 1 usually ships 30-75 days
