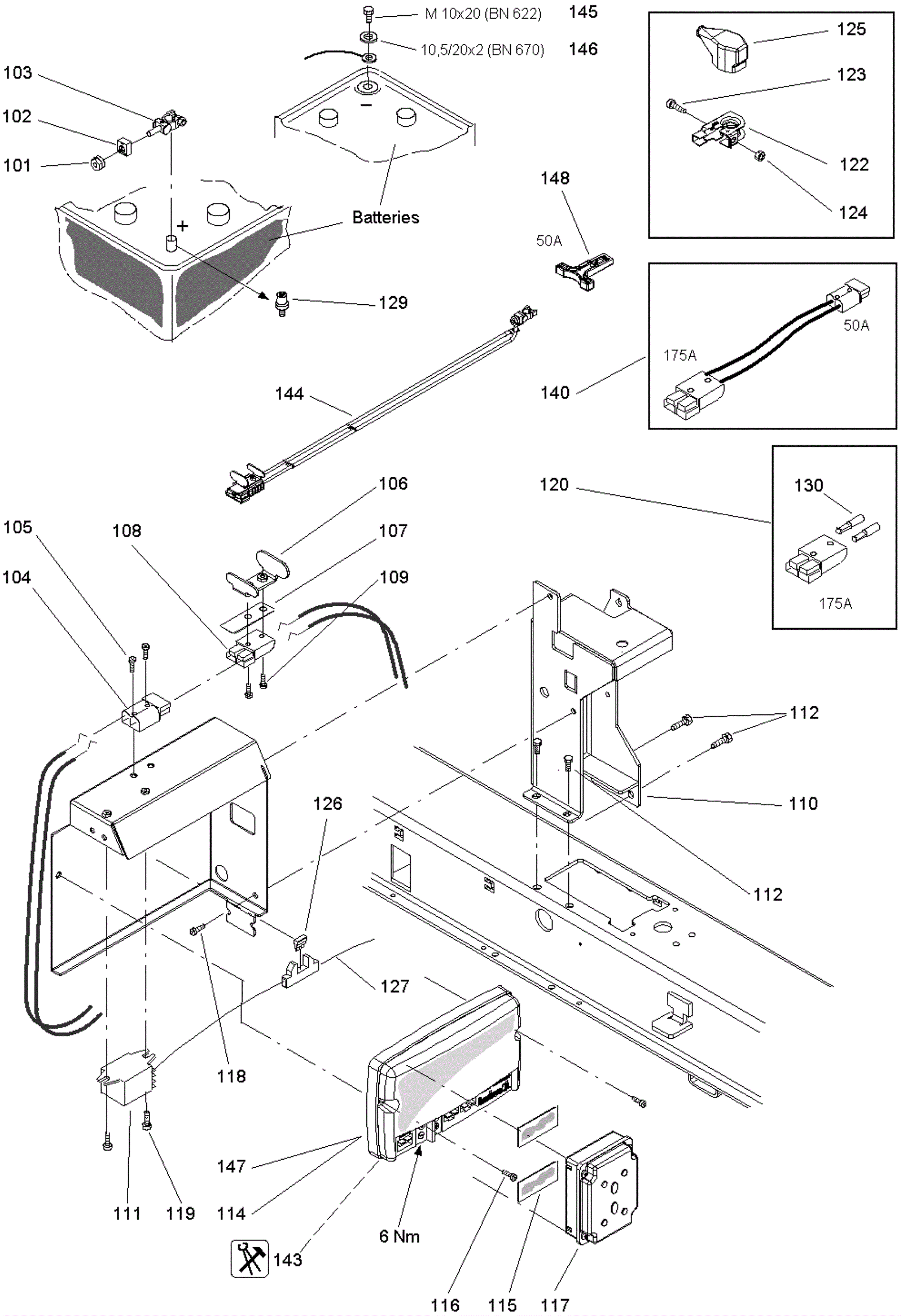

COMBIMATSWINGO3500 Electrical Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-4577 Insulating nut $22.06 1 usually ships 30-75 days
102 192-3891 125amp fuse cartridge $38.95 1 ships same day
103 192-2505 Battery cable clamp $22.42 1 ships same day
104 192-1157 175amp charger housing with post (gray) $63.49 1 ships same day
105 999-6766 Screw M6-1.0 x 30mm socket head stainless steel $1.45 2 ships same day
106 192-1161 Handle $34.39 1 ships same day
107 192-1170 Plate $11.19 1 ships same day
108 192-1162 175amp charger housing with hole (gray) $66.62 1 usually ships 30-75 days
109 192-1156 Screw M6 x 30mm socket head cap $5.32 2 usually ships 30-75 days
110 192-2190 Bracket $117.66 1 usually ships 1-5 days
111 292-0924 24V relay $123.15 1 usually ships 30-75 days
112 192-0153 Screw M8 x 20mm hex head $0.89 4 ships same day
114 192-1439 Trio board $1,287.55 1 usually ships 30-75 days
115 192-3572 Fastener strip (sold by the inch) $70.92 9 in usually ships 30-75 days
116 192-0337 Screw M5 x 25mm socket head cap $3.30 2 usually ships 1-5 days
117 192-2942 Control sensors $374.77 1 usually ships 30-75 days
118 192-1109 Screw M6 x 10mm hex head $0.89 2 ships same day
119 192-5929 Screw M4 x 8mm raised cheese head $0.89 2 ships same day
120 991-2112 175amp charger plug with pins (gray) SB175 $16.09 1 ships same day
122 192-1926 Negative battery clamp $5.98 1 ships same day
123 192-9355 Screw M6 x 40mm hex head $5.50 1 ships same day
124 192-0151 Nut M6 hex $2.44 1 ships same day
125 192-0886 Battery post cover $13.31 1 ships same day
126 192-1176 10amp fuse clip $6.30 1 usually ships 30-75 days
127 192-7520 Wire harness pump $100.68 1 usually ships 30-75 days
129 192-7082 Positive terminal post $26.94 1 usually ships 30-75 days
130 192-2752 Jack charger tongue 175 amp/35 $22.34 2 usually ships 1-5 days
140 192-9597 Adapter $49.04 1 usually ships 30-75 days
143 192-7177 Trio configuration set $635.24 1 usually ships 30-75 days
144 292-0925 Wire harness $286.03 1 usually ships 30-75 days
145 192-0468 Screw M10 x 20 hex $4.71 1 usually ships 30-75 days
146 192-0496 Washer M10 $2.44 1 ships same day
147 292-8593 Wiring harness for trio board $249.04 1 usually ships 30-75 days
148 192-7083 T-handle $55.51 1 (option) ships same day
