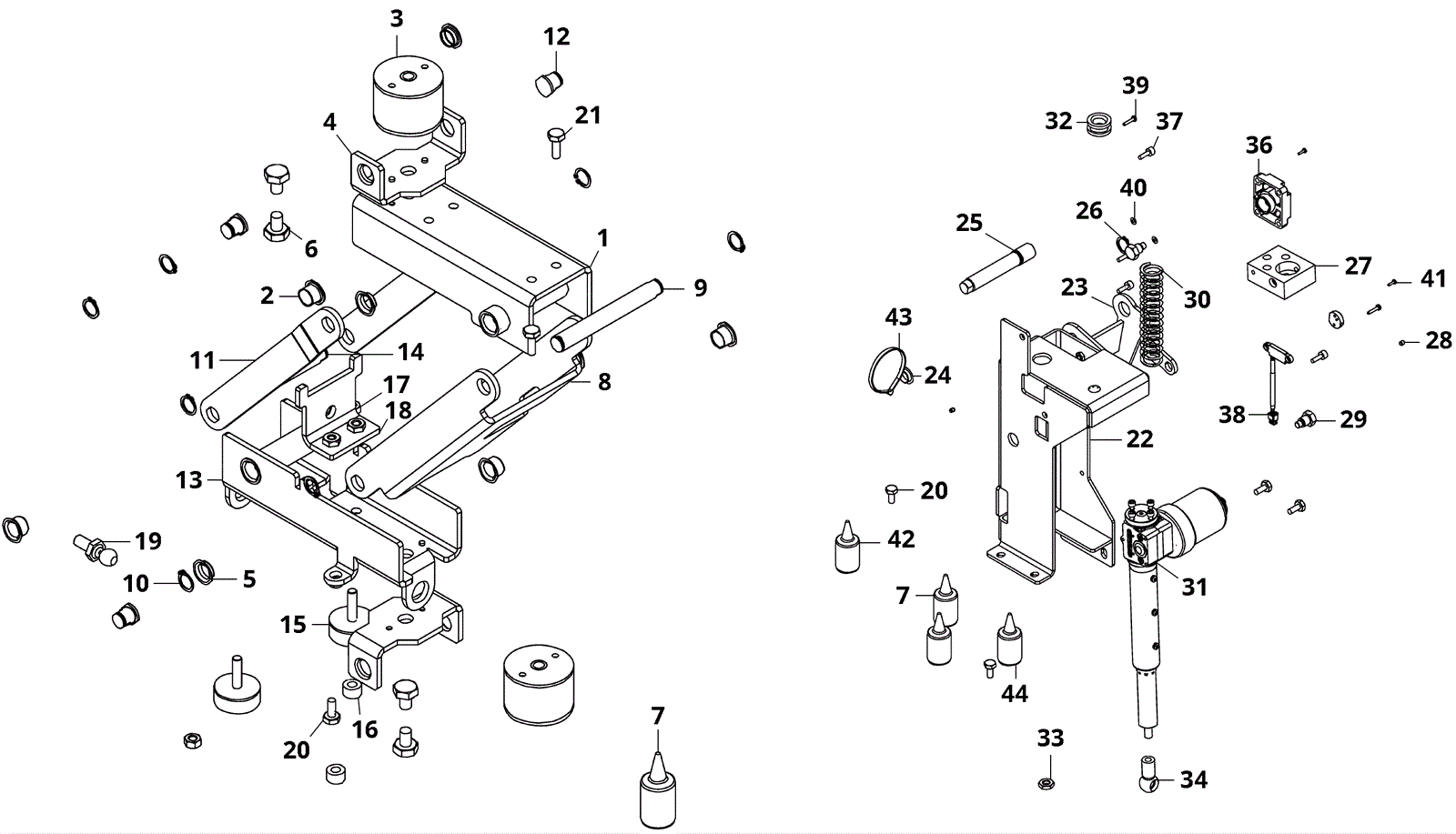

COMBIMATSWINGO2500 Brush Lowering Assembly - version 7

#PartDescriptionPriceReqNotesAvailability
1 192-1132 Bracket $93.97 1 ships same day
2 192-0074 Slide bearing $1.41 4 ships same day
3 192-2325 Buffer $56.85 2 usually ships 30-75 days
4 192-1120 Bracket $14.48 2 usually ships 30-75 days
5 192-1035 Slide bearing $2.44 4 usually ships 30-75 days
6 192-1115 Screw M12 x 14 hex head $2.44 4 usually ships 30-75 days
7 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 2 usually ships 11-24 days
8 192-1134 Rocker $49.52 1 usually ships 30-75 days
9 192-1133 Axle $14.77 1 usually ships 30-75 days
10 192-0075 Retaining ring $5.81 9 usually ships 30-75 days
11 192-1118 Strut $15.14 2 usually ships 30-75 days
12 192-1119 Bolt $10.13 4 usually ships 30-75 days
13 192-1123 Bracket $112.09 1 usually ships 30-75 days
14 192-1124 Axle $15.75 1 usually ships 30-75 days
15 192-1125 Stop buffer $4.84 2 ships same day
16 192-1306 Bushing $7.03 2 usually ships 1-5 days
17 192-0347 Nut M8 hex $0.89 2 ships same day
18 192-1122 Bracket $17.71 1 usually ships 30-75 days
19 192-1881 Ball pivot $21.32 1 usually ships 30-75 days
20 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc $0.99 6 ships same day
21 192-0153 Screw M8 x 20mm hex head $0.89 2 ships same day
22 292-0973 Support Call for price 1 usually ships 30-75 days
23 292-0975 Support Call for price 1 usually ships 30-75 days
24 192-9351 Grommet $2.44 1 ships same day
25 292-0976 Bolt Call for price 1 usually ships 30-75 days
26 192-0807 Retaining ring $2.44 1 ships same day
27 192-2062 Block $45.00 1 usually ships 30-75 days
28 192-5531 Pivot $4.71 2 usually ships 30-75 days
29 192-2106 Bolt with collar M8 $10.75 2 usually ships 30-75 days
30 192-5689 Pressure spring $11.11 1 usually ships 30-75 days
31 192-4792 Actuator $559.68 1 ships same day
32 192-0959 Grommet $6.42 1 usually ships 30-75 days
33 192-8682 Nut M10 hex $2.44 1 usually ships 30-75 days
34 192-0695 Ball pivot 10mm $6.90 1 ships same day
36 192-9769 Sensor holder (OBSOLETE) $3.76 1 usually ships 30-75 days
37 192-0007 Screw M6 x 16mm socket head cap $2.44 4 ships same day
38 192-9770 Sensor $251.35 1 usually ships 30-75 days
39 192-6286 Screw KA 40 x 18 $2.44 2 usually ships 30-75 days
40 192-9755 Spring washer 3 x 9 x 1 $2.44 2 usually ships 1-5 days
41 192-0003 Screw M3 x 10mm raised head $1.13 2 ships same day
42 192-1872 Grease $10.90 1 ships same day
43 192-0794 Cable tie $0.89 1 ships same day
44 192-1872 Grease $10.90 1 ships same day
N/S 192-1136 Strong locking adhesive $252.45 1 usually ships 1-5 days
N/S 192-0699 Safety clip $0.89 1 ships same day
