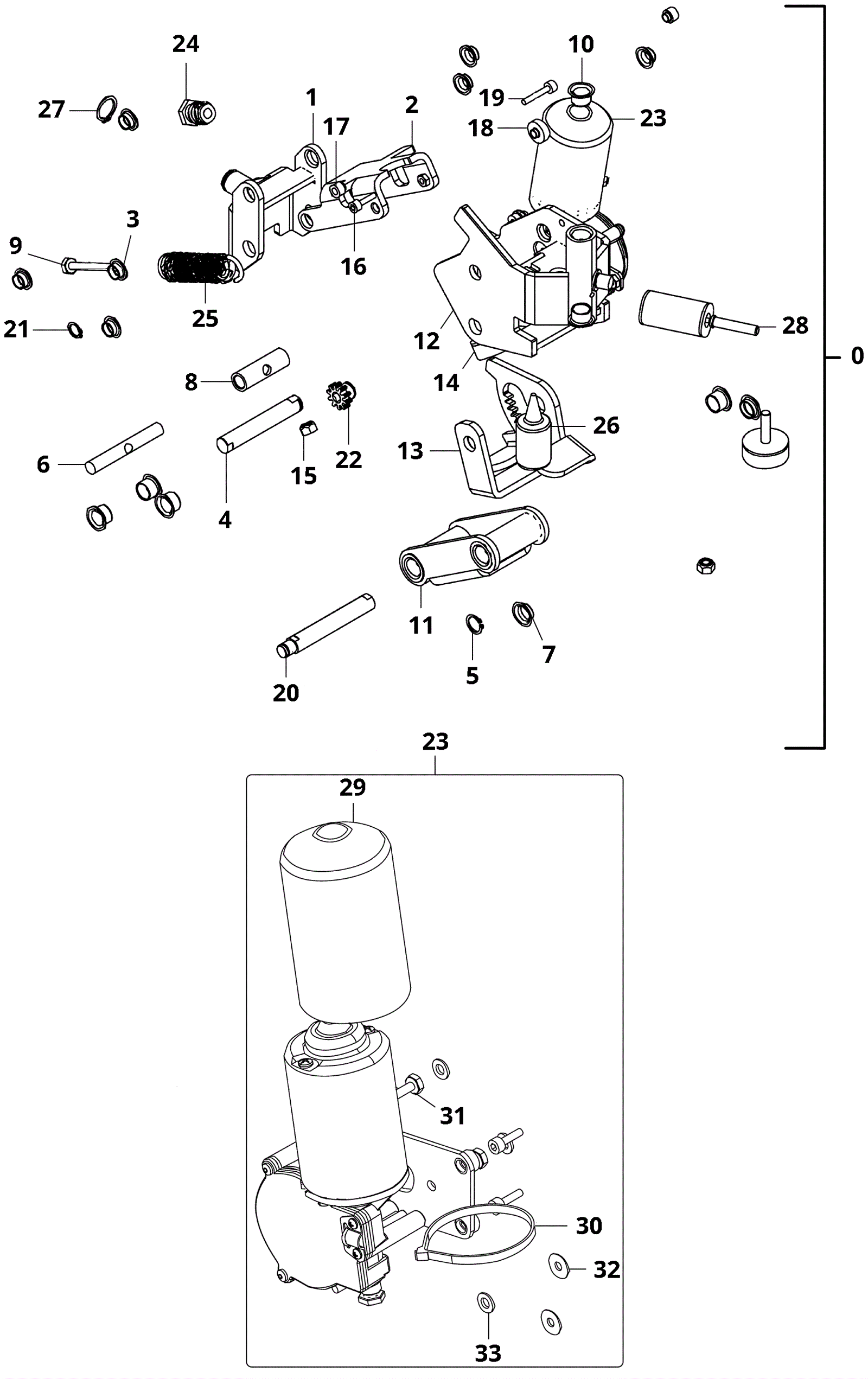

COMBIMATSWINGO3500 Squeegee Mechanism Assembly

#PartDescriptionPriceReqNotesAvailability
0a 292-1027 Squeegee mechanism set Call for price 1 (includes 1-28) usually ships 30-75 days
0b 192-1018 Squeegee mechanism assembly $1,169.62 1 (includes 1-11, 13-14, 16-26, 28) usually ships 30-75 days
1 192-1040 Bracket $54.16 1 ships same day
2 192-1032 Bracket $33.45 1 ships same day
3 192-1034 Slide bearing $2.44 7 ships same day
4 192-1041 Axle $13.07 1 ships same day
5 192-0075 Retaining ring $5.81 2 ships same day
6 192-1797 Axle $9.97 1 ships same day
7 192-1035 Slide bearing $2.44 2 ships same day
8 192-1038 Pipe $11.61 1 ships same day
9 192-1039 Screw M8 x 60mm hex head $0.89 1 ships same day
10 192-0074 Slide bearing $2.44 6 usually ships 30-75 days
11 192-1043 Lever $52.50 1 usually ships 30-75 days
12 292-0956 Console Call for price 1 usually ships 30-75 days
13 292-8521 Catch $71.43 1 usually ships 30-75 days
14 192-1125 Stop buffer $4.84 2 ships same day
15 192-0510 Nut M8 self locking $2.44 2 ships same day
16 192-0194 Screw M6 x 20mm socket head cap $3.91 1 usually ships 30-75 days
17 192-1030 Bushing $9.28 2 ships same day
18 192-1033 Bushing $16.97 1 usually ships 30-75 days
19 999-6766 Screw M6-1.0 x 30mm socket head stainless steel $1.45 3 ships same day
20 292-8520 Axle $13.75 1 ships same day
21 192-6037 Retaining ring $0.89 1 ships same day
22 192-1027 Gear $96.54 1 ships same day
23 192-1023 Squeegee actuator $483.42 1 (includes 29-33) ships same day
24 192-1025 Stud for spring $11.61 1 usually ships 30-75 days
25 192-1026 Spring $14.97 1 usually ships 30-75 days
26 192-1872 Grease $11.99 1 ships same day
27 192-0807 Retaining ring $2.44 1 ships same day
28 192-1024 Buffer assembly $96.28 1 ships same day
29 292-8519 Rubber cap $15.51 1 usually ships 30-75 days
30 192-0794 Cable tie $0.89 1 ships same day
31a 192-0035 Screw M5 x 16mm socket head cap $1.11 3 ships same day
31b 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 3 ships same day
32 192-0091 Washer $0.89 3 ships same day
33 192-0200 Washer M6 $3.12 3 ships same day
N/S 192-1021 Support $350.94 1 (version 6) (included with 0b) usually ships 30-75 days
N/S 192-1029 Bracket $146.48 1 (version 6) (included with 0b) usually ships 30-75 days
N/S 292-8522 Resistor $41.54 1 (version 6) (2008-2009) (included with 0b) usually ships 30-75 days
N/S 192-1028 Bolt $36.59 1 (version 6) (included with 0b) ships same day
N/S 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 (version 6) (included with 0b) ships same day
