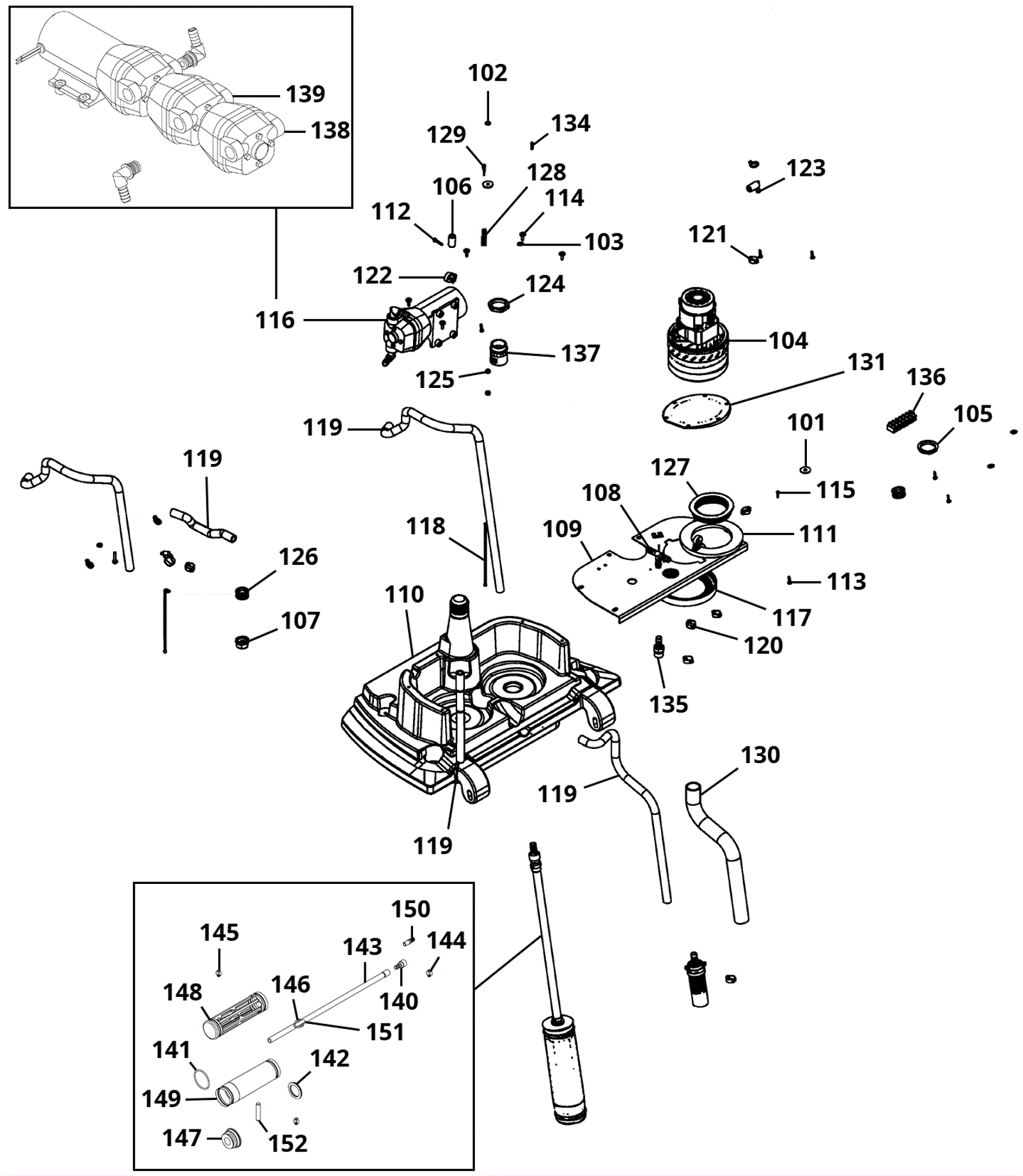

COMBIMATSWINGO3500 Upper Tank Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-0965 Washer $2.44 4 ships same day
102 192-0964 Washer $2.44 2 ships same day
103 192-0971 Washer $2.44 10 ships same day
104 192-0956 24V 3 stage vac motor $241.00 1 ships same day
105 192-0414 Valve seal $14.61 1 ships same day
106 192-0732 Ferrite bushing $3.00 2 usually ships 30-75 days
107 192-3095 Cover $11.07 1 usually ships 30-75 days
108 192-0401 T-connector $5.98 1 ships same day
109 192-0955 Base plate $121.24 1 usually ships 30-75 days
110 192-0969 Tank base $343.78 1 ships same day
111 192-0772 Gasket $42.44 1 ships same day
112 192-0625 Screw 50 x 25 for plastic $3.49 4 ships same day
113 192-0958 Screw 50 x 16 for plastic $5.93 6 ships same day
114 192-0968 Screw KA 60 x 16 $4.40 6 ships same day
115 192-0054 Screw M3 x 16mm raised cheese head $4.76 2 ships same day
116 192-1452 Solution pump assembly $480.76 1 (includes 138-139) ships same day
117 192-1562 Guide ring $7.39 1 ships same day
118 192-0966 Tank sensor $26.26 2 usually ships 30-75 days
119a 192-0400 Wire reinforced hose (sold by the inch) $0.99 8 in ships same day
119b 192-0400 Wire reinforced hose (sold by the inch) $0.99 10 in ships same day
119c 192-0400 Wire reinforced hose (sold by the inch) $0.99 20 in ships same day
119d 192-0400 Wire reinforced hose (sold by the inch) $0.99 25 in (models 8004741 and 7525162) ships same day
119e 192-0400 Wire reinforced hose (sold by the inch) $0.99 46 in (models 8004740 and 7525161) ships same day
120 192-0978 Hose clamp $3.54 3 ships same day
121 192-0957 Hose clamp $3.12 3 ships same day
122 192-0334 Hose clamp $3.26 4 usually ships 12-29 days
123 192-0899 Screw M6 x 25mm hex head $3.62 2 ships same day
124 192-0960 Nut lock $2.44 1 usually ships 30-75 days
125 999-1308 Nut M6-1 hex stainless steel $0.99 4 ships same day
126 192-0959 Grommet $6.42 2 usually ships 30-75 days
127 192-1569 Sealing ring $6.79 1 ships same day
128 192-3890 Fuse holder $15.87 1 usually ships 30-75 days
129 192-3892 Fuse clip $2.44 1 ships same day
130 192-0962 Corrugated hose (sold by the inch) $64.54 16 in usually ships 30-75 days
131 192-0967 Filter disc $63.61 1 ships same day
134 192-3596 Female plate clip $2.44 1 usually ships 1-5 days
135 192-0398 Male connector $2.87 1 ships same day
136 192-0951 6 way connection block $9.77 1 usually ships 30-75 days
137 192-0961 Adapter $30.84 1 usually ships 30-75 days
138 192-1385 Pump head assembly $289.70 1 usually ships 30-75 days
139 192-5860 Pump head $375.19 1 ships same day
140 192-1205 Female quick connect $103.30 1 (models 8004741 and 7525162) usually ships 30-75 days
141 192-0220 O-ring $1.22 2 (models 8004741 and 7525162) ships same day
142 192-0224 Packing ring $19.17 1 (models 8004741 and 7525162) usually ships 30-75 days
143 192-0400 Wire reinforced hose (sold by the inch) $0.99 24 in (models 8004741 and 7525162) ships same day
144 192-0978 Hose clamp $3.54 1 (models 8004741 and 7525162) ships same day
145 192-0957 Hose clamp $3.12 2 (models 8004741 and 7525162) ships same day
146 192-0959 Grommet $6.42 1 (models 8004741 and 7525162) usually ships 30-75 days
147 192-1206 Cover $35.65 1 (models 8004741 and 7525162) usually ships 30-75 days
148 192-1209 Filter cage $149.64 1 (models 8004741 and 7525162) usually ships 30-75 days
149 192-0222 10 inch outer filter sleeve $43.18 1 (models 8004741 and 7525162) usually ships 30-75 days
150 192-1204 Male quick connect $47.44 1 (models 8004741 and 7525162) usually ships 30-75 days
151 192-1207 Pipe $11.61 1 (models 8004741 and 7525162) usually ships 30-75 days
152 192-0221 Pin $14.05 1 (models 8004741 and 7525162) usually ships 30-75 days
N/S 192-0102 7 3/4 inch cable tie $2.44 3 usually ships 30-75 days
N/S 192-0973 3 1/4 inch cable tie $2.44 4 usually ships 30-75 days
N/S 192-0992 Filter cage $7.21 1 (models 8004740 and 7525161) ships same day
N/S 192-0991 O-ring $2.44 1 ships same day
N/S 192-0993 4 inch filter bag $19.61 1 ships same day
N/S 192-0990 Screwing socket $22.22 1 ships same day
