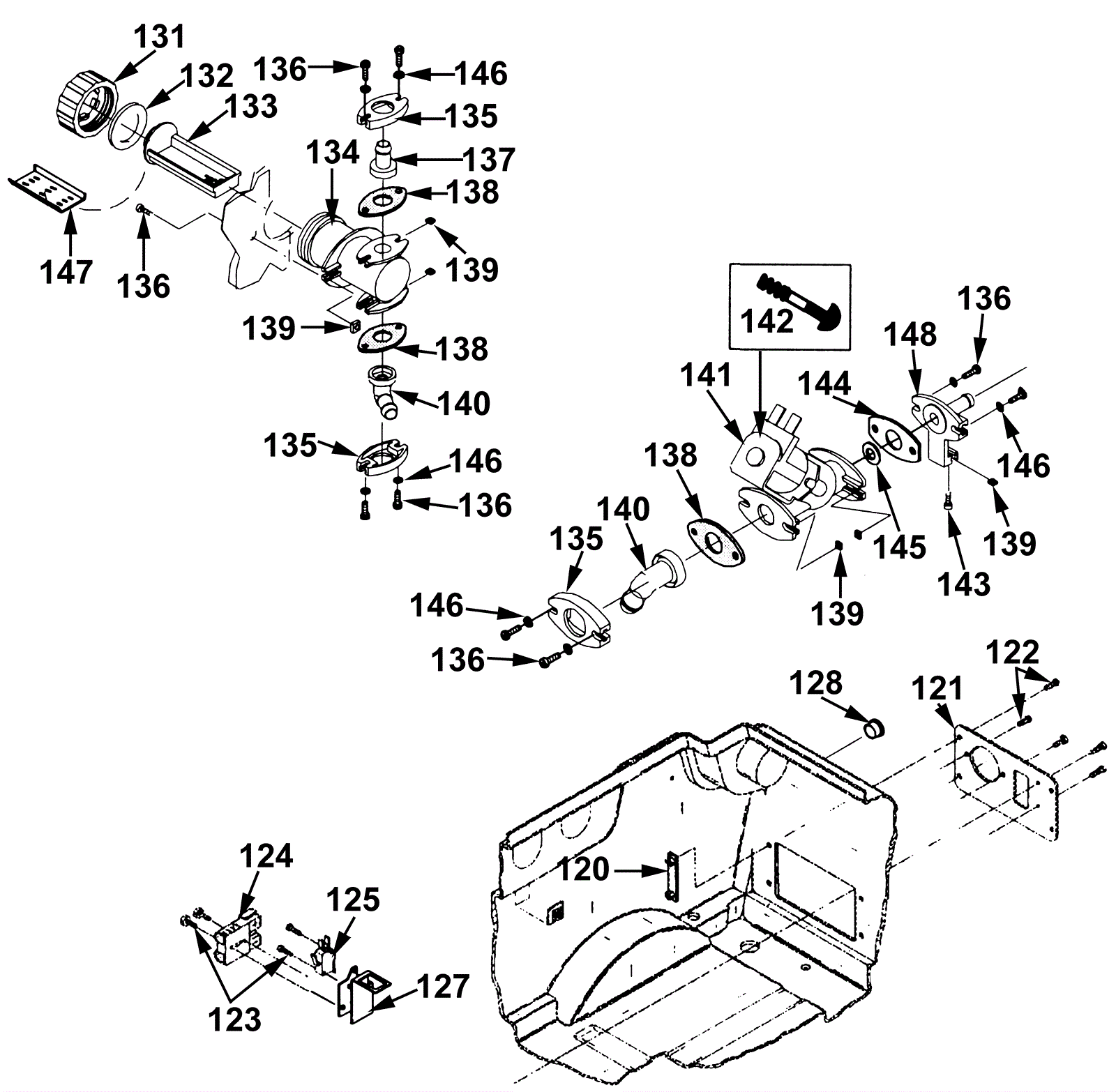

| # | Part | Description |
Req | Notes | Availability |
|---|
120 |
192-1263
|
Plate (OBSOLETE) |
2 |
|
|
121 |
192-1265
|
Plate (OBSOLETE) |
1 |
|
|
122 |
192-0912
|
Screw M4 x 16mm raised head |
8 |
|
|
123 |
192-0294
|
Screw M3 x 20 raised cheese head |
4 |
|
|
124a |
192-1266
|
50amp charger plug SB50 |
1 |
|
|
124b |
192-0388
|
50amp charger plug SB50 with post (gray) |
1 |
(On the charger) |
|
124c |
192-0389
|
50amp charger plug SB50 with hole (gray) |
1 |
(On the machine) |
|
125 |
192-1268
|
Microswitch (OBSOLETE) |
1 |
|
|
127 |
192-1269
|
Holder (OBSOLETE) |
1 |
|
|
128 |
192-0717
|
Plug (OBSOLETE) |
1 |
|
|
131 |
292-0082
|
Filter kit |
1 |
|
|
132 |
292-0082
|
Filter kit |
1 |
|
|
133 |
292-0082
|
Filter kit |
1 |
|
|
134 |
192-0910
|
Filter housing |
1 |
|
|
135 |
192-0911
|
Flange |
3 |
|
|
136 |
192-0912
|
Screw M4 x 16mm raised head |
10 |
|
|
137 |
192-0913
|
Nipple |
1 |
|
|
138 |
192-0914
|
Gasket |
4 |
|
|
139 |
192-0915
|
Nut M4 square |
11 |
|
|
140 |
192-0916
|
Angled nipple |
2 |
|
|
141 |
192-0917
|
24V magnetic valve (OBSOLETE) |
1 |
|
|
142 |
N/A
|
Not available |
1 |
Repair set valve |
|
143 |
192-0920
|
Screw M4 x 16 hex |
1 |
|
|
144 |
192-1270
|
Intermediate plate |
1 |
|
|
145 |
192-1271
|
Gasket |
1 |
|
|
146 |
192-0149
|
Washer |
8 |
|
|
147 |
192-1272
|
Filter insert |
1 |
|
|
148 |
192-0919
|
Valve flange (OBSOLETE) |
1 |
|
|
N/S |
192-0033
|
24V hour meter |
1 |
|
|
