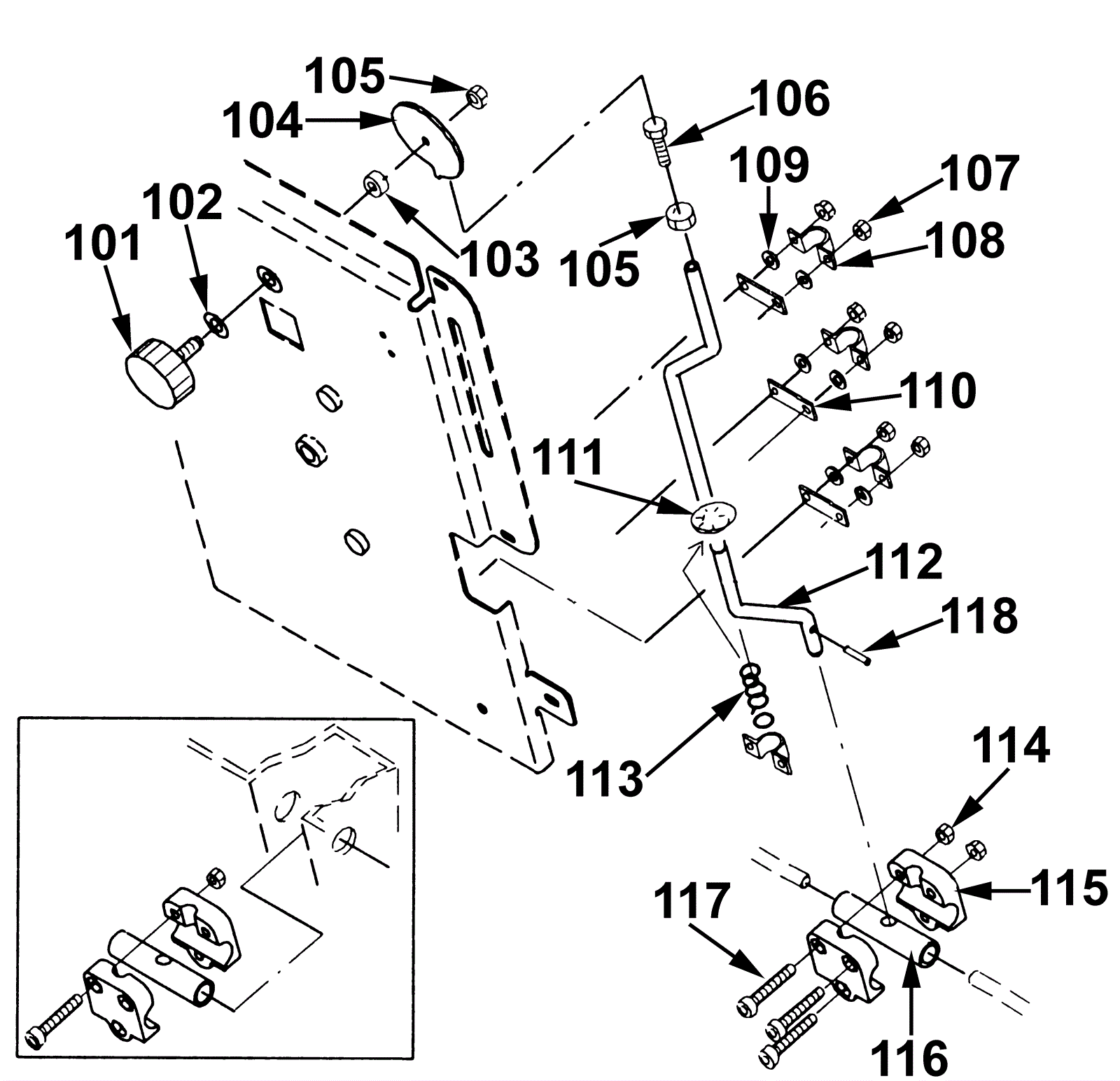

COMBIMAT 700 Water Regulating System

#PartDescriptionPriceReqNotesAvailability
101 192-0895 Screw knurled (OBSOLETE) $13.86 1 usually ships 1-5 days
102 192-0896 Washer 18/11 waved (OBSOLETE) $2.20 1 usually ships 1-5 days
103 192-0897 Washer $4.35 1 usually ships 30-75 days
104 192-0898 Cam disk (OBSOLETE) $14.40 1 usually ships 1-5 days
105 192-0151 Nut M6 hex $2.44 2 ships same day
106 192-1285 Screw M6 x 25mm hex head $2.44 1 ships same day
107 192-0235 Nut M4 self locking $2.44 6 ships same day
108 192-0900 Clamp (OBSOLETE) $2.20 3 usually ships 1-5 days
109 192-0200 Washer M6 $3.12 6 ships same day
110 192-0901 Plate (OBSOLETE) $2.20 3 usually ships 1-5 days
111 192-0902 Snap ring $2.44 1 ships same day
112 192-0903 Pressure bar (OBSOLETE) $33.85 1 usually ships 1-5 days
113 192-0904 Pressure spring (OBSOLETE) $2.20 1 usually ships 1-5 days
114 192-0383 Nut M5 hex $0.89 3 ships same day
115 192-0905 Clamping plate (OBSOLETE) $8.39 2 usually ships 1-5 days
116 192-0906 Bushing (OBSOLETE) $10.59 1 usually ships 1-5 days
117 192-0262 Screw M5 x 20mm socket head cap $3.54 3 usually ships 30-75 days
118 192-1408 Extension pin $2.44 1 usually ships 1-5 days
N/S 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 ships same day
