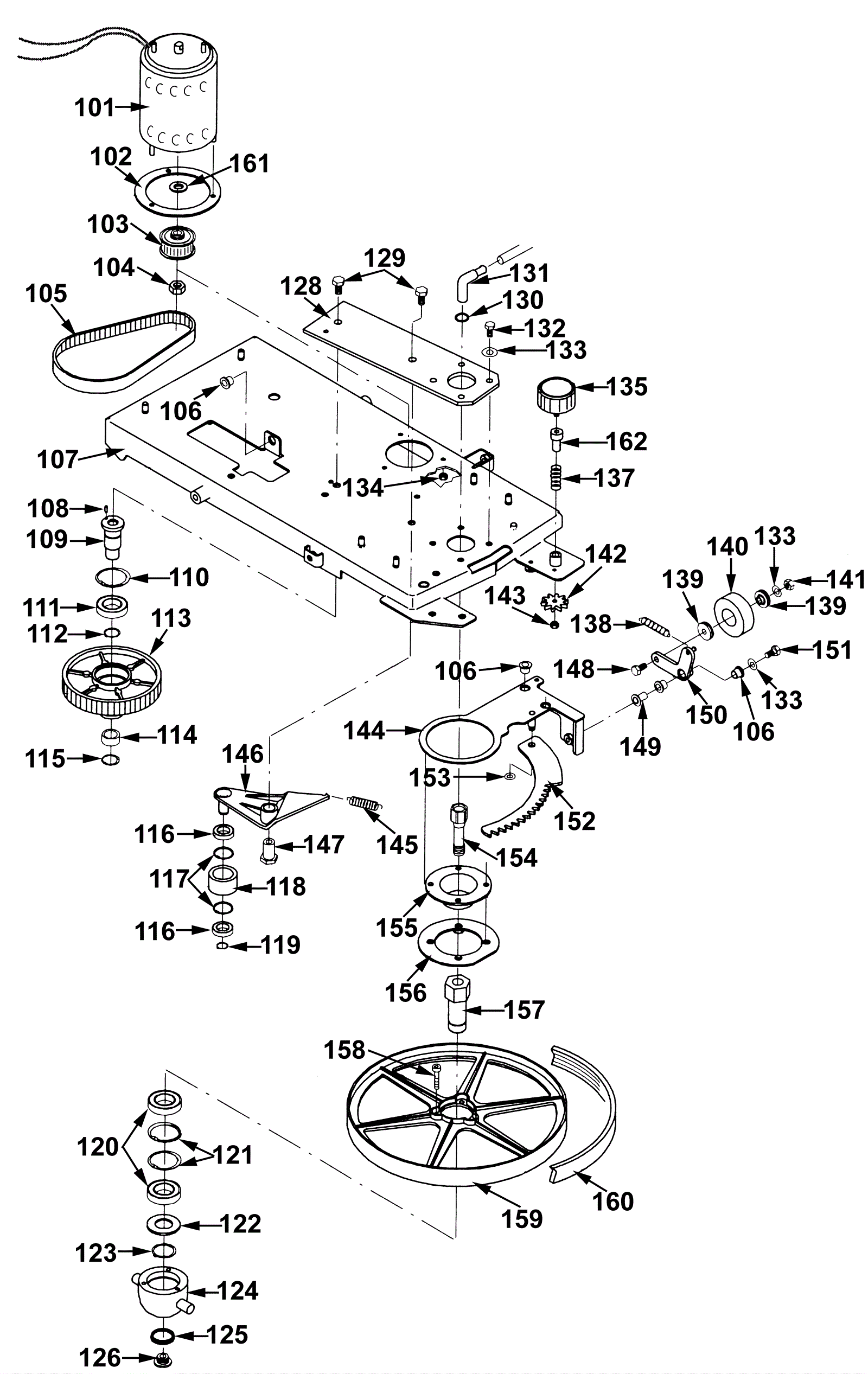

Brush Drive Assembly

#PartDescription ReqNotesAvailability
101a 192-0796 24V Brush motor (OBSOLETE) 1
101b 192-0797 Carbon brush with holder (OBSOLETE) 1
102 192-0798 Ring (OBSOLETE) 1
103 192-0799 Drive sprocket (OBSOLETE) 1
104 192-0800 Nut M12 left hand thread hex 1
105 192-0801 Toothed belt 1
106 192-0784 Slide bearing 4
107 192-0802 Chassis (OBSOLETE) 1
108 192-0885 Extensible pin 3x16 1
109 192-0804 Lever axle (OBSOLETE) 1
110 192-0805 Retaining ring (OBSOLETE) 1
111 192-0806 Ball bearing (OBSOLETE) 1
112 192-0807 Retaining ring 1
113 192-0808 Intermediate sprocket 1
114 192-0809 Needle bearing (OBSOLETE) 1
115 192-0810 Retaining ring 1
116 192-0488 Ball bearing 2
117 192-0489 Retaining ring 1
118 192-0812 Tensioner pulley (OBSOLETE) 1
119 192-0075 Retaining ring 1
120 192-0501 Ball bearing 2
121 192-0500 Retaining ring 2
122 192-0813 Spacer 1
123 192-0503 Retaining ring 1
124 192-0814 Coupling 1
125 192-0815 Shaft seal 1
126 192-0816 Supporting plug 1
128 192-0818 Plate (OBSOLETE) 1
129 192-6474 Screw M10 x 30mm socket head cap 2
130 192-0820 O-ring 1
131 192-0821 Angled nipple (OBSOLETE) 1
132 192-0822 Screw M8 x 25 hex head 3
133 192-0079 Washer 5
134 192-0151 Nut M6 hex 3
135a 192-0823 Leveling knob (OBSOLETE) 1
135b 192-0824 Symbol (OBSOLETE) 1
137 192-0826 Pressure spring (OBSOLETE) 1
138 192-0827 Tension spring (OBSOLETE) 1
139 192-0828 Bushing (OBSOLETE) 2
140 192-0829 Pulley (OBSOLETE) 1
141 192-0347 Nut M8 hex 1
142 192-0830 Gear (OBSOLETE) 1
143 192-0563 Nut M6 self-locking 1
144 192-0831 Swiveling lever (OBSOLETE) 1
145 192-0832 Tension spring (OBSOLETE) 1
146 192-0833 Tensioner bracket (OBSOLETE) 1
147 192-0834 Bushing (OBSOLETE) 1
148 192-0835 Screw M8 x 35mm hex head 1
149 192-0836 Bushing (OBSOLETE) 1
150 N/A Not available 1 (Lever)
151 192-0838 Screw M8 x 30 hex head 1
152 192-0839 Toothed quadrant (OBSOLETE) 1
153 192-0840 Snap ring 1
154 192-0841 Nipple (OBSOLETE) 1
155 192-0842 Flange (OBSOLETE) 1
156 192-0843 Disc (OBSOLETE) 1
157 192-0844 Axle 1
158 192-1405 Screw M6 x 35 socket head cap 3
159 192-0846 Pulley (OBSOLETE) 1
160 192-0847 Drive belt (OBSOLETE) 1
161 192-0291 Washer 1
162 192-0825 Bushing (OBSOLETE) 1
N/S 192-0467 Lite thread lock compound 1
