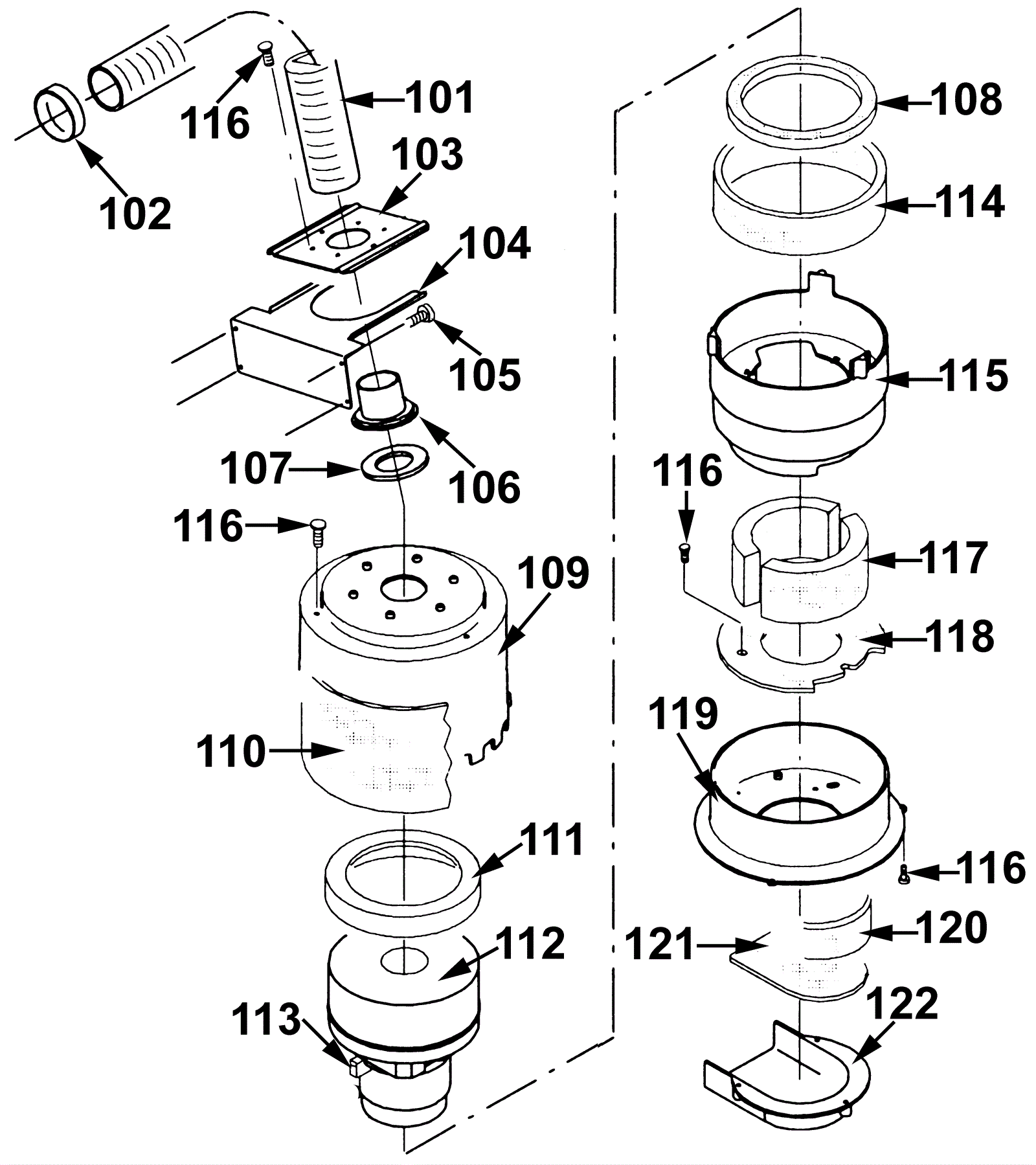

| # | Part | Description |
Req | Notes | Availability |
|---|
101 |
192-0763
|
Hose (sold by the inch) (OBSOLETE) |
16 in |
|
|
102 |
192-0764
|
Hose clamp |
1 |
|
|
103 |
192-0765
|
Plate (OBSOLETE) |
1 |
|
|
104 |
192-0766
|
Bracket (OBSOLETE) |
1 |
|
|
105 |
192-0547
|
Screw KA 40 x 14 |
4 |
|
|
106 |
192-0748
|
Socket (OBSOLETE) |
1 |
|
|
107 |
192-0759
|
Sealing ring (OBSOLETE) |
1 |
|
|
108 |
192-0772
|
Gasket |
3 |
|
|
109 |
192-0768
|
Cover |
1 |
|
|
110 |
192-0769
|
Noise absorbing strip |
1 |
|
|
111 |
192-0253
|
Gasket (OBSOLETE) |
1 |
|
|
112 |
192-0770
|
24V vacuum motor |
1 |
|
|
113 |
192-0771
|
Carbon brush plastic (black) (clip in) |
2 |
|
|
114 |
192-0773
|
Noise absorbing strip |
1 |
|
|
115 |
192-0774
|
Motor housing |
1 |
|
|
116 |
192-0767
|
Screw KA 40 x 10 |
9 |
|
|
117 |
192-0776
|
Noise absorbing strip |
2 |
|
|
118 |
192-0777
|
Noise absorbing ring |
1 |
|
|
119 |
192-0778
|
Cover |
1 |
|
|
120 |
192-0779
|
Sealing ring |
1 |
|
|
121 |
192-1396
|
Noise absorbing sheet |
1 |
|
|
122 |
192-0781
|
Cover |
1 |
|
|
123a |
192-0260
|
2-way connection block |
1 |
|
|
123b |
192-5455
|
Screw M2-.9 x 16mm pan head tapping |
1 |
|
|
123c |
192-0712
|
Coil with toric core |
1 |
|
|
123d |
192-0783
|
Noise support condenser |
1 |
|
|
