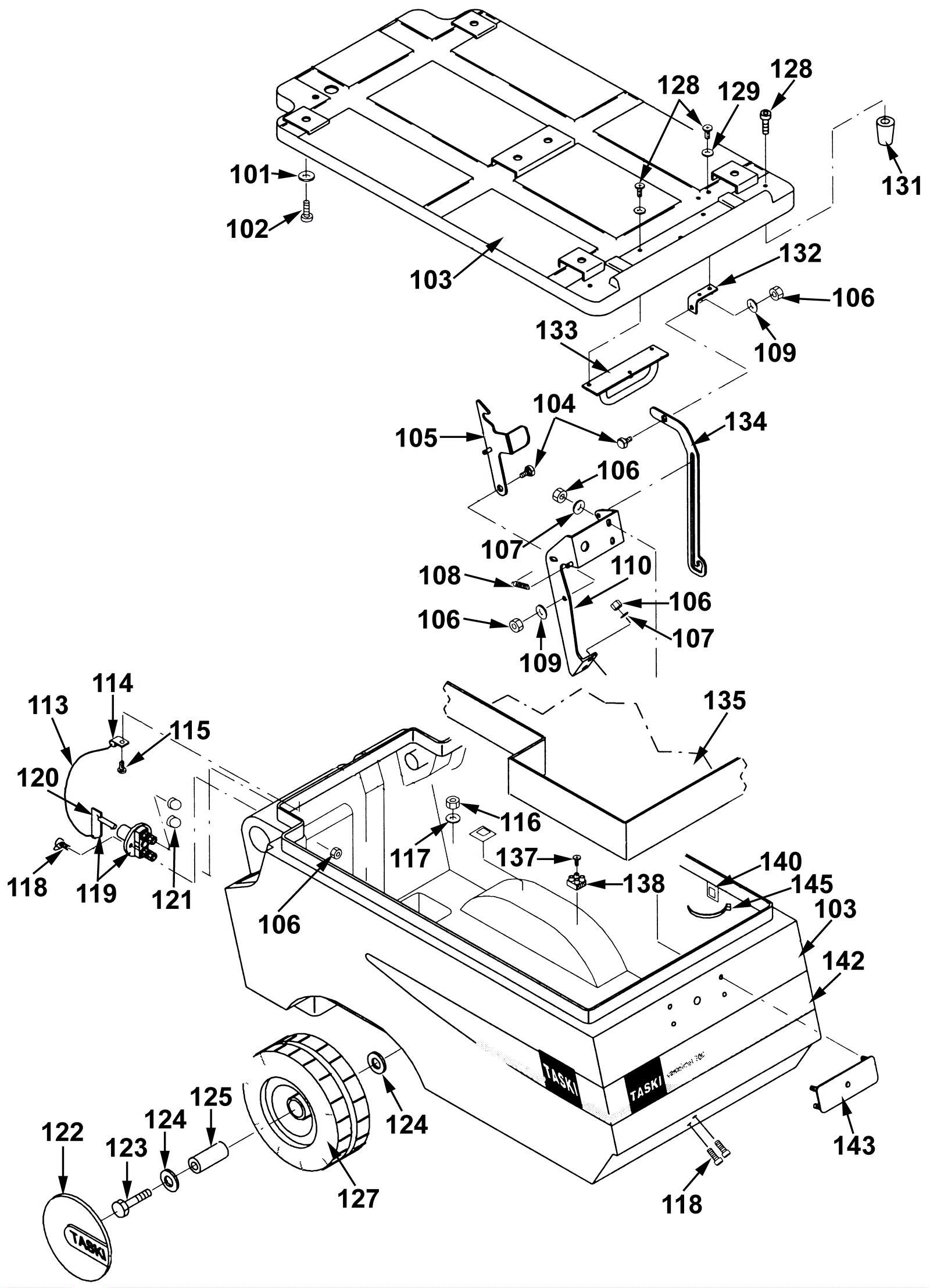

COMBIMAT 700 Machine Undercarriage

#PartDescriptionPriceReqNotesAvailability
101 192-0705 Washer $2.44 6 usually ships 30-75 days
102 192-0706 Screw M50 x 16mm for plastic $2.64 6 ships same day
103 192-1393 Tank tray (OBSOLETE) $523.35 1 usually ships 1-5 days
104 192-0708 Bolt (OBSOLETE) $5.31 3 usually ships 1-5 days
105 192-0709 Latch (OBSOLETE) $103.33 1 usually ships 1-5 days
106 192-0563 Nut M6 self-locking $2.44 10 ships same day
107 192-0200 Washer M6 $3.12 6 ships same day
108 192-0710 Tension spring $2.44 1 usually ships 30-75 days
109 192-0216 Washer $1.22 2 ships same day
110 192-0711 Bracket (OBSOLETE) $81.69 1 usually ships 1-5 days
113 192-0714 Cord (sold by the inch) $2.44 13 in ships same day
114 192-0715 P clamp $2.44 1 usually ships 1-5 days
115 192-0941 Screw M40 x M10 for plastic $4.35 1 usually ships 30-75 days
116 192-0510 Nut M8 self locking $2.44 6 ships same day
117 192-0647 Washer $5.01 6 ships same day
118 192-0158 Screw M6 x 20mm socket head cap $0.89 4 ships same day
119 192-0716 Disconnecting switch (OBSOLETE) $36.81 1 usually ships 1-5 days
120 192-1394 Key (OBSOLETE) $3.11 1 usually ships 30-75 days
121 192-0718 Hex cap $2.44 2 usually ships 1-5 days
122a 192-0279 Wheel cover w/springs (OBSOLETE) $12.09 2 usually ships 30-75 days
122b 192-0280 Spring (OBSOLETE) $2.20 6 usually ships 1-5 days
123 192-0719 Screw M10-50 hex head $2.44 2 usually ships 1-5 days
124 192-0112 Washer $2.44 4 ships same day
125 192-0720 Bushing (OBSOLETE) $5.43 2 usually ships 1-5 days
127 192-0722 Wheel $33.57 2 usually ships 30-75 days
128 192-0723 Screw M5 x 6mm $2.44 7 usually ships 30-75 days
129 192-0091 Washer $0.89 5 ships same day
131 192-0724 Guide bolt (OBSOLETE) $6.13 2 usually ships 1-5 days
132 192-0725 Bracket (OBSOLETE) $7.58 1 usually ships 1-5 days
133 192-0726 Hook (OBSOLETE) $38.38 1 usually ships 1-5 days
134 192-0727 Tank support (OBSOLETE) $22.73 1 usually ships 1-5 days
135 192-0728 Inner tray (OBSOLETE) $81.08 1 usually ships 1-5 days
137 192-0730 Screw KA 30 x 18 $2.44 1 usually ships 30-75 days
138 192-0731 2 way connection block $7.33 1 usually ships 30-75 days
140 192-0008 Self-adhesive plate (OBSOLETE) $0.61 7 usually ships 30-75 days
142 192-0734 Decorative stripe (OBSOLETE) $46.64 1 usually ships 1-5 days
143 192-0735 Plate (OBSOLETE) $34.07 1 usually ships 1-5 days
145 192-0102 7 3/4 inch cable tie $2.44 5 usually ships 30-75 days
N/S 192-1420 75amp fuse $16.68 1 ships same day
