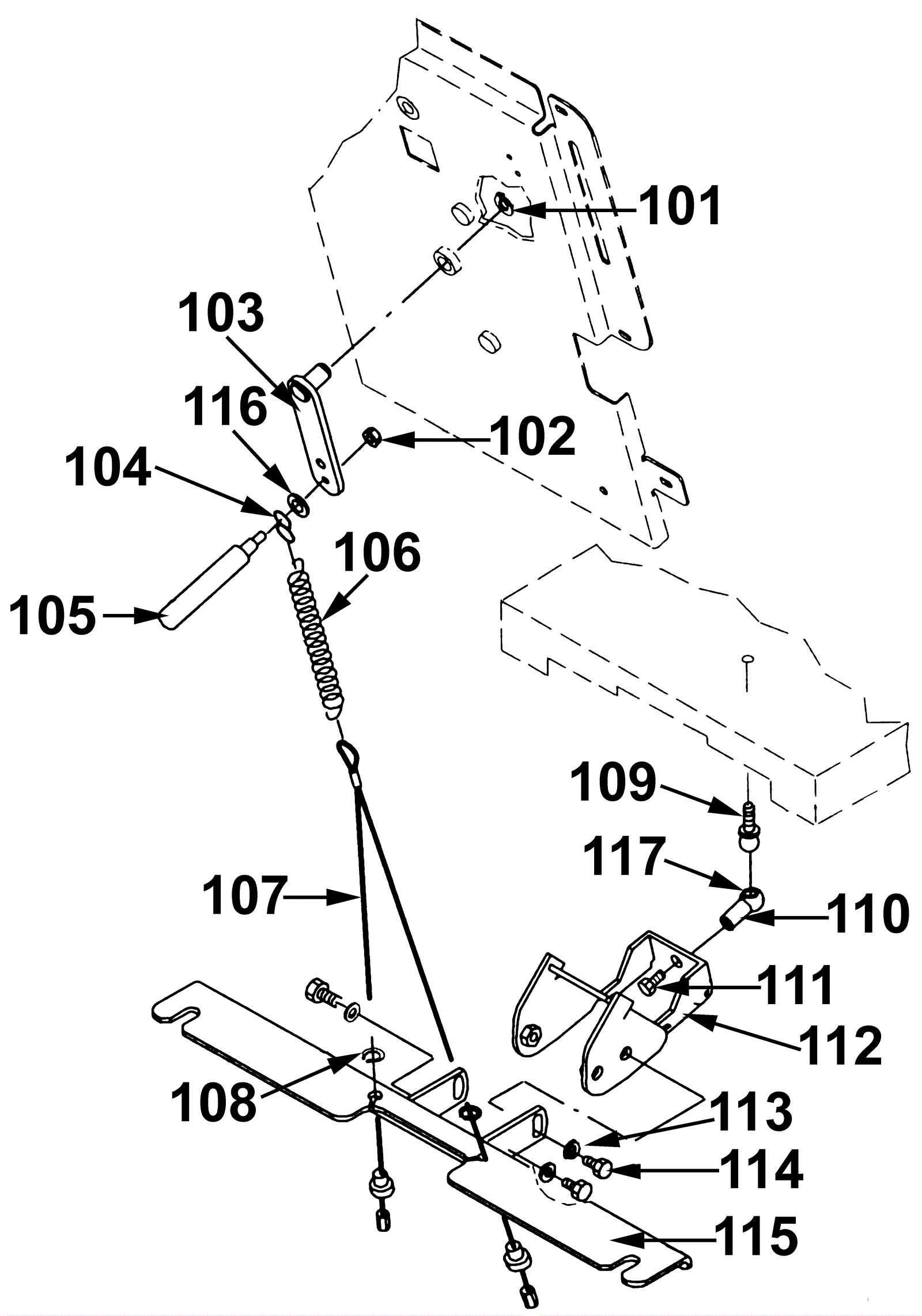

Squeegee Mechanism

#PartDescription ReqNotesAvailability
101 192-0086 Snap ring 1
102 192-0215 Nut M6 hex thin stainless steel 1
103 192-0688 Lever (OBSOLETE) 1
104 192-0689 S-hook (OBSOLETE) 1
105 192-0690 Handle (OBSOLETE) 1
106 192-0691 Tension spring (OBSOLETE) 1
107 192-0692 Wire cable (OBSOLETE) 1
108 192-0693 Retaining ring 2
109 192-0694 Ball pivot 1
110 192-0695 Ball pivot 10mm 1
111 192-0468 Screw M10 x 20 hex 1
112 192-0696 Bracket (OBSOLETE) 1
113 192-0105 Washer M8 3
114 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc 3
115 192-0697 Squeegee mounting bracket (OBSOLETE) 1
116 192-0200 Washer M6 1
117 192-0699 Safety clip 1
N/S 292-8528 .5ml capsule loctite medium strength thread lock (red) 1
