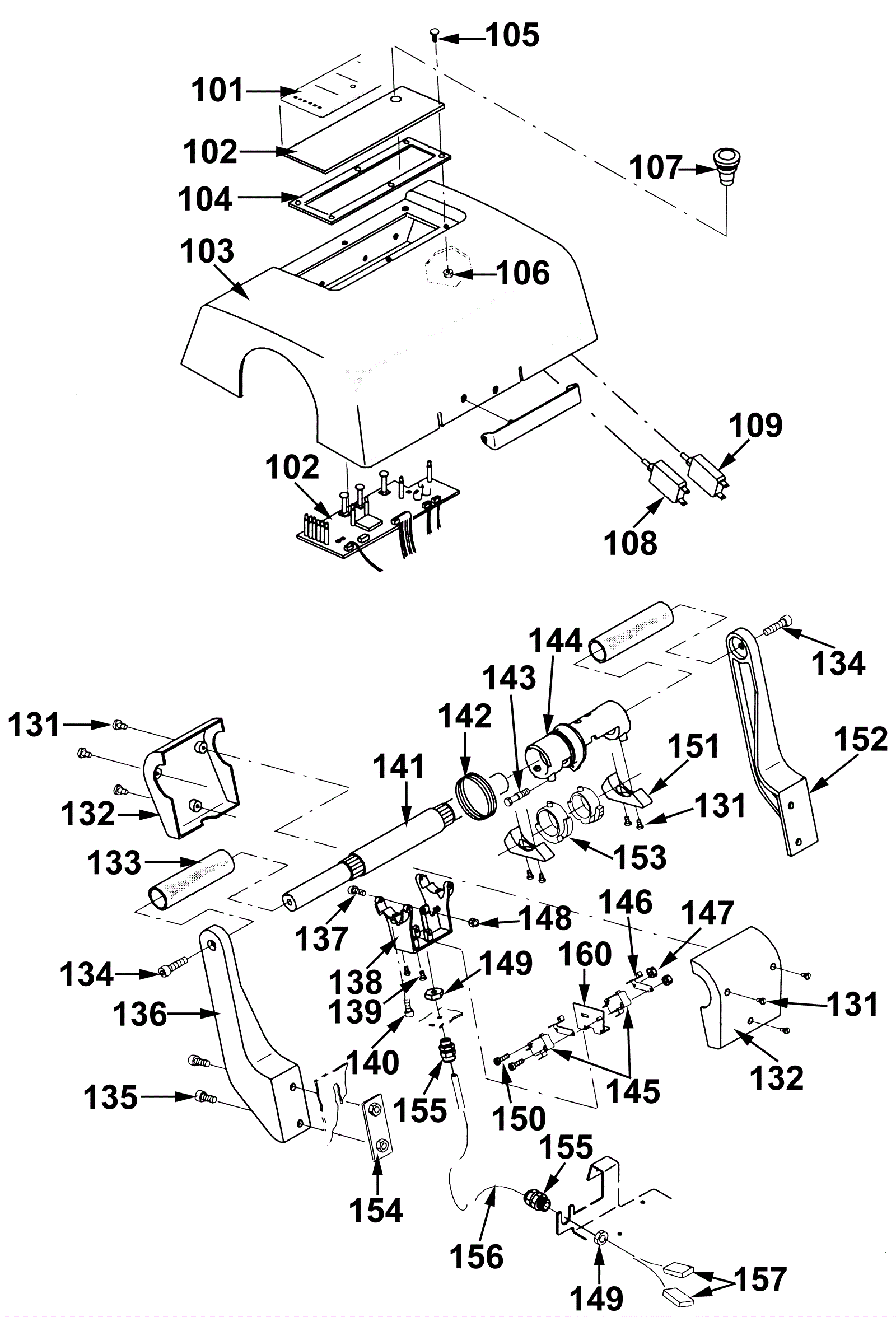

Control Board

#PartDescription ReqNotesAvailability
101 192-0668 Display panel (OBSOLETE) 1
102 192-1389 Key board print 1
103 192-1390 Housing (OBSOLETE) 1
104 192-0671 Gasket (OBSOLETE) 1
105 192-0676 Screw 3mmx12 counter sink head (OBSOLETE) 6
106 192-0015 Nut M3 self locking 6
107 192-6936 Switch (OBSOLETE) 1
108 192-1392 40 Amp overload switch (OBSOLETE) 1
109 192-1182 25amp overload switch 1
131 192-0060 Screw M4 x 8 self tapping forming 10
132 192-0061 Housing 2
133 192-0062 Handle grip (OBSOLETE) 2
134 999-6767 Screw M8-1.0 x 30mm socket cap 2
135 192-0078 Screw M8 x 16mm socket head 4
136 192-0037 Right hand support 1
137 192-0041 Screw 4mm centering 1
138 192-0038 Handle bar support 1
139 192-0680 Screw 4mmx6 socket head cap (OBSOLETE) 2
140 192-0035 Screw M5 x 16mm socket head cap 2
141 192-0040 Handle bar 1
142 192-0043 Torsion spring 1
143 192-0044 Bolt (OBSOLETE) 1
144 192-0042 Handle bar bushing 1
145 192-0681 Microswitch 2
146 192-0295 Lever 2
147 192-0048 Nut M3 hex 2
148 192-0039 Nut M4 hex 1
149 192-0052 Nut hex 2
150 292-5585 Screw M3 x 25 cheese head 2
151 192-0046 Lever 2
152 192-0045 Left hand support 1
153 192-0047 Positioning ring 2
154 192-0683 Tapped plate 8mm (OBSOLETE) 2
155 192-0053 Cable bushing 2
156 192-0684 Cable (OBSOLETE) 1
157a 192-0685 3-Pole plug 1
157b 192-0686 2-Pole plug (OBSOLETE) 1
157c 192-0058 Plug pin 5
160 192-0687 Bracket (OBSOLETE) 1
