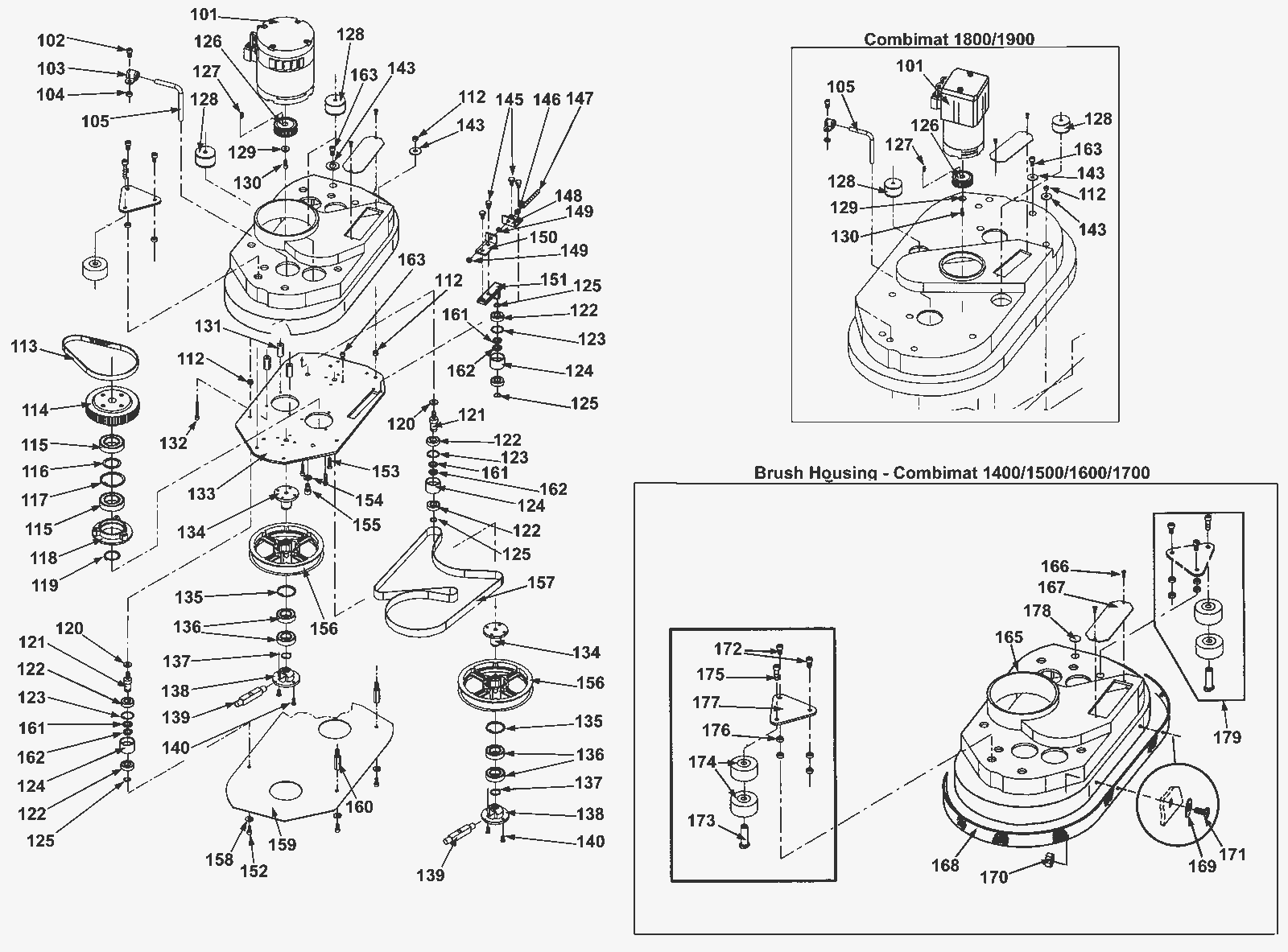

Brush Drive Assembly

#PartDescription ReqNotesAvailability
101a 192-0475 Brush motor 1 (1400-1700)
101b 192-0518 Brush motor 1 (1800-1900)
101c 192-0266 Carbon brush (pkg of 4) 1
101d 192-0476 Collar with clamp 1 (1400-1700)
101e 192-0520 Collar with clamp 1 (1800-1900)
101f 192-3566 Fan (OBSOLETE) 1 (1400-1700)
101g 192-3567 Fan (OBSOLETE) 1 (1800-1900)
101h 192-1867 Ball bearing 2 (1400-1700)
101i 192-1864 Ball bearing 6001 1 (1800-1900)
101j 192-5762 Protection cap 1 (1800-1900)
101k 192-0519 Brush holder (OBSOLETE) 1 (1800-1900)
102a 192-0036 Screw M8 x 20mm socket head 2 (1400-1900) (series 1, series 04)
102b 192-0153 Screw M8 x 20mm hex head 2 (1500/1700/1900) (series 1, 2, 3)
103 192-0478 Hose clamp 2
104 192-0330 Bushing 2
105a 192-0523 Solution pipe 2 (1400-1500)
105b 192-0477 Solution pipe 2 (1600-1900)
112 192-0347 Nut M8 hex 11
113 192-0479 Toothed belt 1
114a 192-0524 Intermediate wheel 1 (1400-1500)
114b 192-0480 Intermediate wheel 1 (1600-1900)
115 192-0481 Ball bearing 2
116 192-0482 Spacer 1
117 192-0483 Retaining ring 1
118 192-0484 Flanged bearing 1 (Part updated in 2019 from a six hole flange to a three. Change does not affect part function or fit.)
119 192-0485 Retaining ring 1
120 192-0486 Washer 2
121a 192-0525 Bearing axle 2 (1400-1500)
121b 192-0487 Bearing axle (OBSOLETE) 2 (1600-1900)
122 192-0488 Ball bearing 6
123 192-0489 Retaining ring 6
124a 192-0526 Idler wheel 3 (1400-1500)
124b 192-0490 Idler wheel 3 (1600-1900)
125 192-0075 Retaining ring 4
126 192-0491 Drive motor pulley 1
127 192-0267 Keyway 1
128 192-0492 Buffer 2
129 192-0269 Washer 1
130 192-0007 Screw M6 x 16mm socket head cap 1
131 192-0493 Bushing 3
132a 192-0495 Screw M6 x 50 socket head cap 3 (1400-1900) (series 1, Series 4)
132b 192-8038 Screw M6 x 45 socket head cap 3 (1600-1700) (series 1, 2, 3)
133a 192-0527 Base plate 1 (1400-1500)
133b 192-0494 Base plate 1 (1600-1700)
133c 192-0521 Base plate 1 (1800-1900)
134a 192-0528 Flange 2 (1400-1500)
134b 192-0498 Flange (OBSOLETE) 2 (1600-1900)
135 192-0500 Retaining ring 2
136 192-0501 Ball bearing 4
137 192-0503 Retaining ring 2
138 192-0505 Coupling yoke 2
139a 192-0529 Coupling shaft 2 (1400-1500)
139b 192-0504 Shaft 2 (1600-1900)
140 192-0157 Screw M6 x 16mm countersunk head cap 4
143 192-0647 Washer 6
145 192-0509 Screw M8 x 12mm hex head 4
146 192-0510 Nut M8 self locking 1
147 192-0511 Bolt M8 x 70 threaded 1
148 192-0512 Bracket 1
149 192-0240 Nut M8 hex 2
150 192-0513 Bracket 1
151a 192-0530 Bracket 1 (1400-1500)
151b 192-0514 Bracket 1 (1600-1900)
152a 192-0506 Screw M6 x 12mm socket head 12 (1400-1900)
152b 192-1109 Screw M6 x 10mm hex head 12 (1600-1700)
153 192-0066 Screw M6 x 25mm socket head cap 3
154 192-0496 Washer M10 2
155 192-0497 Screw M10 x 16 socket head cap 2
156a 192-0531 Pulley 2 (1400-1500)
156b 192-0499 Pulley (OBSOLETE) 2 (1600-1900)
157a 192-0532 Flat belt 1 (1400-1500)
157b 192-0517 Flat belt (OBSOLETE) 1 (1600-1900)
158 192-0179 Washer M6 serrated lock 5
159a 192-0537 Plate 1 (1400-1500)
159b 192-0507 Plate 1 (1600-1700)
159c 192-0522 Plate 1 (1800-1900)
160a 192-0533 Stand off bolt 2 (1400-1500)
160b 192-0508 Stand-off bolt 3 (1600-1900)
161 192-0534 Leveling disc 3 (1400-1500) (series 2 and series 3)
162a 192-0515 Leveling disc 3 (series 1 and series 4) (after 08.01)
162b N/A Not available 3 (leveling disc) (series 1 and series 4 before 08.01)
163 192-0364 Screw M8 x 12mm socket head 10
165a 192-2286 Brush housing 1400/1500 1 (1400-1500)
165b 192-0318 Brush housing 1600/1700 (OBSOLETE) 1 (1600-1700)
165c 192-2289 Brush housing 1800/1900 1 (1800-1900)
166 192-0320 Screw 50 x 12 for plastic 2
167 192-0321 Cover 1
168a N/A Not available 1 (protective molding) (1400-1700)
168b 192-0324 Protective molding (1800 and 1900) (OBSOLETE) 1 (1800-1900)
169 192-0325 Washer 8
170 192-0235 Nut M4 self locking 8
171 192-0326 Screw M4 x 16 raised head 8
172a 192-0078 Screw M8 x 16mm socket head 2 (1600-1900)
172b 192-0327 Screw M8 x 22 socket head cap 2 (1400-1500)
173 192-0328 Bushing 1
174 192-0329 Bumper wheel 2
175 192-0278 Screw M8 x 25mm socket head 1
176 192-0330 Bushing 4 (qty 2 for 1600-1900)
177 192-0331 Plate 1
178 192-0332 Hole plug (OBSOLETE) 2
179 192-4104 Guiding caster set 1 (optional)
N/S 192-6496 Screw M8 x 75 socket head cap (OBSOLETE) 1 (optional)
N/S 192-0467 Lite thread lock compound 1
N/S 192-0502 Bushing 2 (1600-1900)
