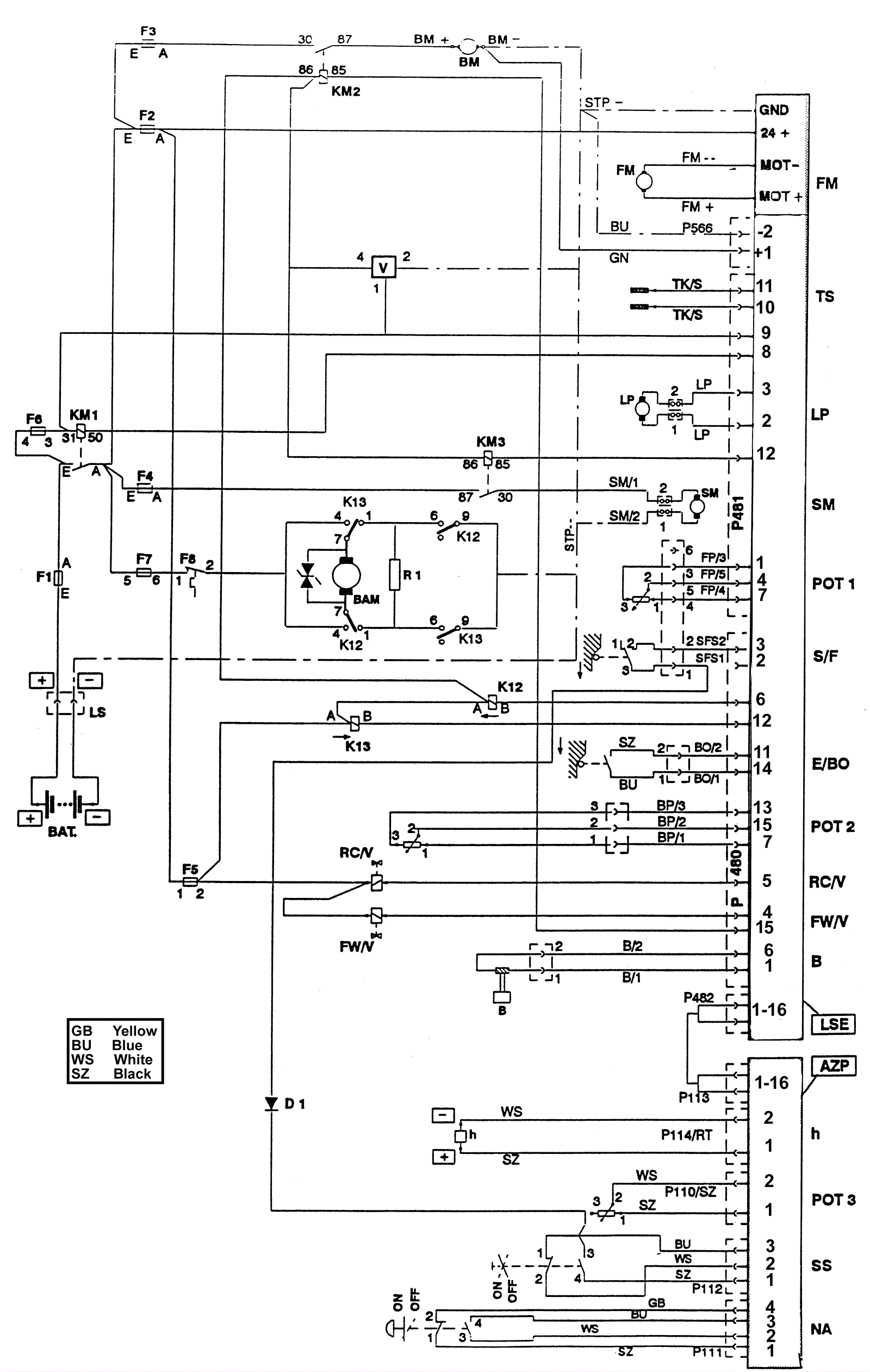

COMBIMAT 1900 Electrical Diagram - Series 4 - After 08.2001

#PartDescriptionPriceReqNotesAvailability
AZP 192-0018 Display panel $438.86 1 usually ships 1-5 days
BM 192-0475 Brush motor $1,092.92 1 1400, 1500, 1600, 1700 usually ships 30-75 days
BM 192-0518 Brush motor $1,229.09 1 1800 and 1900 models usually ships 1-5 days
E/BU 192-0296 Microswitch $102.02 1 ships same day
F1 192-0368 Fuse strip 80 amp $6.23 1 usually ships 30-75 days
F2 192-0369 Fuse strip 30 amp $2.44 1 usually ships 30-75 days
F3 192-0369 Fuse strip 30 amp $2.44 1 usually ships 30-75 days
F4 192-0369 Fuse strip 30 amp $2.44 1 usually ships 30-75 days
F5 192-0370 5amp fuse clip $2.44 1 usually ships 30-75 days
F6 192-0370 5amp fuse clip $2.44 1 usually ships 30-75 days
FM 192-0265 24V motor $1,114.43 1 usually ships 1-5 days
FW/V 192-0396 24V magnetic valve $183.15 1 ships same day
KM1 192-0025 Key switch assembly $280.57 1 ships same day
KM2 192-5135 Complete motor gear box (OBSOLETE) $563.49 1 usually ships 1-5 days
KM3 192-0956 24V 3 stage vac motor $241.00 1 ships same day
LP 192-0333 Solution pump (1400-1900 models) (OBSOLETE) $545.15 1 usually ships 30-75 days
LS 192-0405 Connector $2.93 usually ships 30-75 days
LSE 192-0367 Electronic control board $3,566.28 1 usually ships 30-75 days
POT1 192-0059 Potentiometer 5K $45.06 1 ships same day
POT2 192-0059 Potentiometer 5K $45.06 1 ships same day
S/F 192-0049 Microswitch (OBSOLETE) $21.76 1 usually ships 30-75 days
SM 192-0956 24V 3 stage vac motor $241.00 1 ships same day
SS 192-0025 Key switch assembly $280.57 1 ships same day
TS 192-0180 Probe $19.86 1 usually ships 30-75 days
