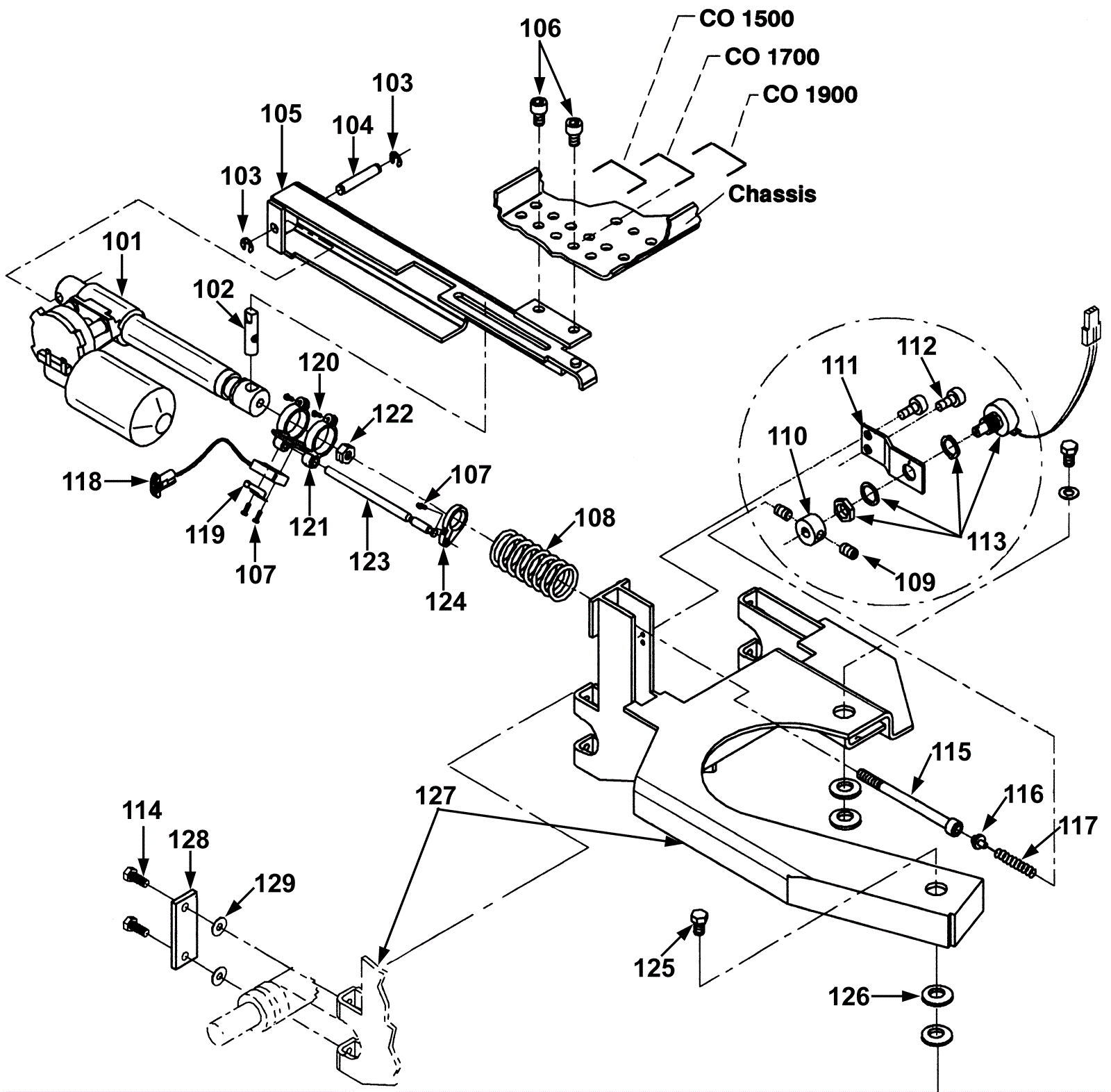

COMBIMAT 1900 Tool Lowering Assembly

#PartDescriptionPriceReqNotesAvailability
101a 192-0448 Brush actuator $1,848.47 1 usually ships 1-5 days
101b 192-0449 Actuator motor $883.22 1 usually ships 1-5 days
102 192-0450 Pin $22.37 1 usually ships 1-5 days
103 192-0086 Snap ring $2.44 2 ships same day
104 192-0301 Pin $6.06 1 usually ships 1-5 days
105 192-0451 Actuator bracket $185.17 1 usually ships 1-5 days
106a 192-0264 Screw M10 x 20mm socket head cap $5.86 2 (1500/1700/1900) (series 3 and series 4) usually ships 30-75 days
106b 192-0497 Screw M10 x 16 socket head cap $5.32 2 (1500/1700/1900) (series 1 and series 2) usually ships 1-5 days
107 192-0452 Screw for plastic KA 30 x 16mm $2.44 3 usually ships 30-75 days
108a 192-0935 Pressure spring (1400 and 1500) $21.64 1 (1500) usually ships 1-5 days
108b 192-0470 Pressure spring (1600 and 1700) $26.60 1 (1700) usually ships 1-5 days
108c 192-0472 Pressure spring (1800 and 1900) (OBSOLETE) $10.00 1 (1900) usually ships 1-5 days
109 192-0453 Screw 6 x 10 hex set $3.25 2 usually ships 30-75 days
110 192-0454 Bushing $6.67 1 usually ships 1-5 days
111 192-0455 Bracket $22.02 1 usually ships 1-5 days
112a 192-0407 Screw M5 x 10mm socket head cap $0.89 2 (1500/1700/1900) (series 2, 3, and 4) ships same day
112b 192-8933 Screw M5 x 12 hex Call for price 2 (1500/1700/1900) (series 1) usually ships 1-5 days
113a 192-0456 Potentiometer 5K $332.85 1 (1500/1700/1900) (series 3 and series 4) usually ships 30-75 days
113b 192-0059 Potentiometer 5K $45.06 1 (1500/1700/1900) (series 1 and series 2) ships same day
113c 192-0058 Plug pin $2.44 3 usually ships 30-75 days
113d 192-0685 3-Pole plug $4.22 1 usually ships 1-5 days
114 192-0153 Screw M8 x 20mm hex head $0.89 4 ships same day
115 192-0457 Screw M10 x 130 socket head cap $4.35 1 usually ships 1-5 days
116 192-0458 Spring holder $5.59 1 usually ships 1-5 days
117 192-0459 Pressure spring $30.18 1 usually ships 1-5 days
118a 192-0296 Microswitch $102.02 1 ships same day
118b 192-0297 2-pole plug $2.20 1 usually ships 30-75 days
118c 192-0298 Plug pin $2.20 2 usually ships 30-75 days
119 192-0295 Lever $56.09 1 ships same day
120 192-0460 Screw 30 x 10 $2.44 2 usually ships 30-75 days
122 192-1135 Nut M10 hex $2.44 1 ships same day
123 192-0463 Shaft $7.40 1 usually ships 30-75 days
124 192-0464 Clamp $4.10 1 usually ships 1-5 days
125a 192-0468 Screw M10 x 20 hex $4.71 2 (1500) usually ships 30-75 days
125b 192-0264 Screw M10 x 20mm socket head cap $5.86 2 (1700) (1900) usually ships 30-75 days
126 192-0465 Washer $4.13 4 (1500/1700/1900) usually ships 30-75 days
127a 192-0469 Console (1400 and 1500) $361.39 1 (1500) usually ships 1-5 days
127b 192-0471 Console (1600 and 1700) $821.13 1 (1700) usually ships 1-5 days
127c 192-0473 Console (1800 and 1900) $630.62 1 (1900) usually ships 1-5 days
128 192-0466 Plate $9.94 2 usually ships 1-5 days
129 192-0109 Washer 8 mm $5.98 4 usually ships 30-75 days
