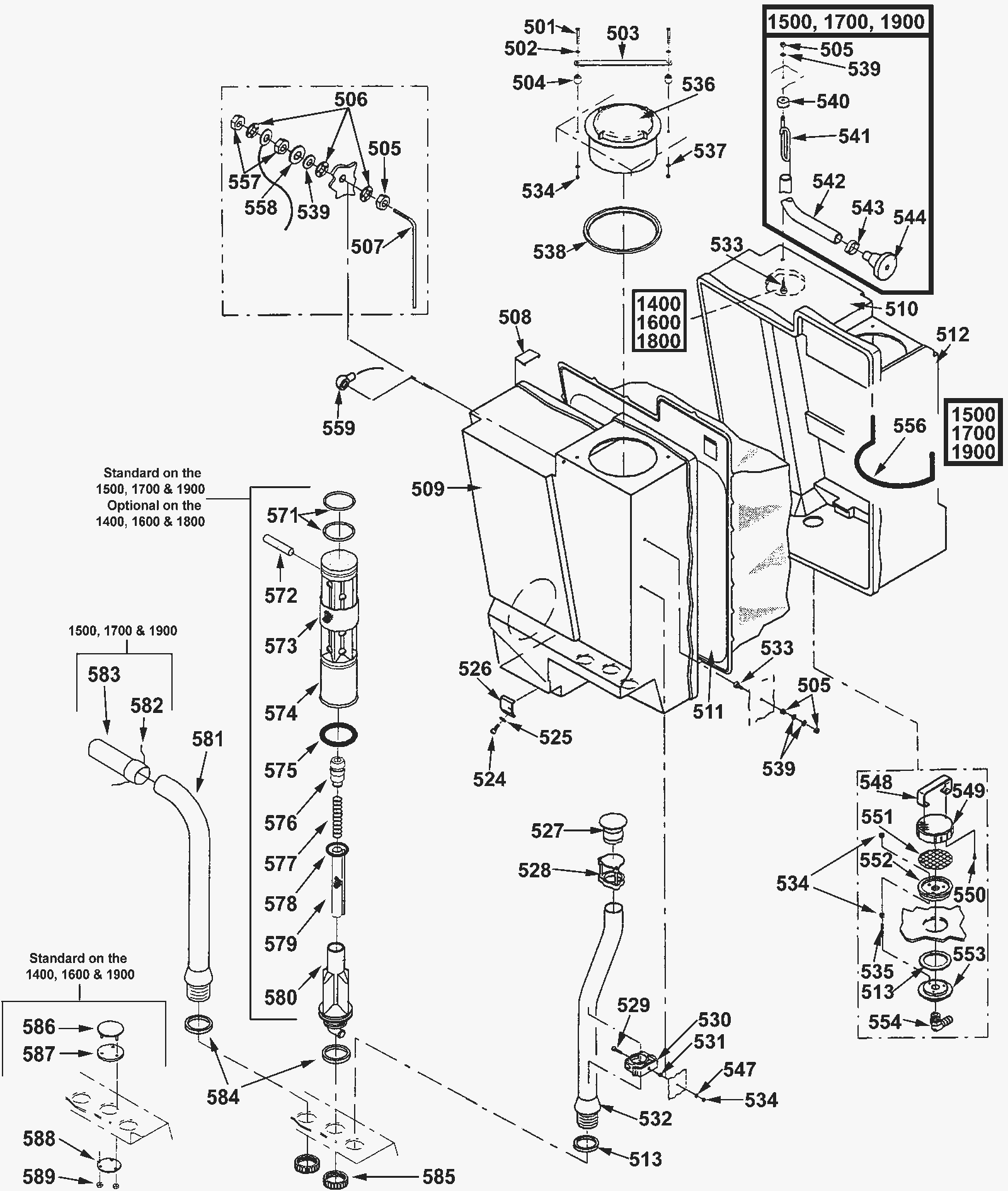

| # | Part | Description |
Req | Notes | Availability |
|---|
501 |
192-0174
|
Screw M5 x 35 hexagon |
4 |
|
|
502 |
192-0175
|
Washer countersunk |
8 |
|
|
503 |
192-1454
|
Protector |
2 |
|
|
504 |
192-0177
|
Spacer |
4 |
|
|
505 |
999-1308
|
Nut M6-1 hex stainless steel |
6 |
|
|
506 |
192-0179
|
Washer M6 serrated lock |
3 |
|
|
507 |
192-0180
|
Probe |
1 |
|
|
508 |
192-0181
|
Protector |
25 |
|
|
509 |
192-0182
|
Recovery tank |
1 |
|
|
510 |
192-0183
|
Solution tank |
1 |
|
|
511 |
192-0184
|
Tank membrane (OBSOLETE) |
1 |
|
|
512 |
192-0185
|
Decal (blue) |
1 |
|
|
513 |
192-0186
|
Gasket |
4 |
|
|
524 |
192-0036
|
Screw M8 x 20mm socket head |
2 |
|
|
525 |
192-0079
|
Washer |
2 |
|
|
526 |
192-0188
|
Tank mounting bracket |
2 |
|
|
527 |
192-0189
|
Suction tube filter |
1 |
|
|
528 |
192-0190
|
Protection flap |
1 |
|
|
529a |
192-0262
|
Screw M5 x 20mm socket head cap |
1 |
(1400/1600/1800 series 1 before 05.2003) (1500/1700/1900 series 4 after 05.2003) |
|
529b |
192-0035
|
Screw M5 x 16mm socket head cap |
1 |
(1400/1600/1800 series 1 before 05.2003) (1500/1700/1900 series 3 after 02.1997) (series 4 before 05.2003) |
|
530 |
192-0191
|
Hose bracket |
1 |
|
|
531 |
192-4207
|
Hexagon nut M5 (OBSOLETE) |
1 |
|
|
532 |
192-0193
|
Intake |
1 |
|
|
533 |
192-0194
|
Screw M6 x 20mm socket head cap |
2 |
|
|
534 |
192-0195
|
Nut M5 hex |
13 |
|
|
535 |
192-0196
|
Screw M5 x 25 grub |
3 |
|
|
536 |
192-0197
|
Cover |
2 |
|
|
537 |
192-0971
|
Washer |
4 |
|
|
538 |
192-0199
|
Gasket |
2 |
|
|
539 |
192-0200
|
Washer M6 |
4 |
|
|
540 |
192-0201
|
Bushing (OBSOLETE) |
1 |
|
|
541 |
192-0202
|
Hose holder |
1 |
|
|
542 |
192-0203
|
Hose (sold by the inch) |
79 in |
|
|
543 |
192-0204
|
Hose clamp |
1 |
|
|
544 |
192-0205
|
Filling hose |
1 |
|
|
547 |
192-0206
|
Washer M5 |
2 |
|
|
548 |
192-0207
|
Bracket |
1 |
|
|
549 |
192-0208
|
Filter |
1 |
|
|
550 |
192-0209
|
Screw M3 x 8 recessed countersunk head |
2 |
|
|
551 |
192-0210
|
Filter |
1 |
|
|
552 |
192-0211
|
Flange |
1 |
|
|
553 |
192-0212
|
Flange |
1 |
|
|
554 |
192-0213
|
90 degree fitting |
1 |
|
|
556 |
192-0214
|
Handle |
1 |
|
|
557 |
192-0215
|
Nut M6 hex thin stainless steel |
2 |
|
|
558a |
192-7420
|
Washer 6/16 |
1 |
(1400/1600/1800 series 1 before 05.2003) (1500/1700/1900 series 4 after 05.2003) |
|
558b |
192-0216
|
Washer |
1 |
(1400/1600/1800 series 1 before 05.2003) (1500/1700/1900 series 3 after 02.1997) (series 4 before 05.2003) |
|
559 |
192-0217
|
Protecting cap |
1 |
|
|
571 |
192-0220
|
O-ring |
2 |
|
|
572 |
192-0221
|
Pin |
1 |
|
|
573 |
192-0222
|
10 inch outer filter sleeve |
1 |
|
|
574 |
192-0223
|
Filter cage |
1 |
|
|
575 |
192-0224
|
Packing ring |
1 |
|
|
576 |
192-0225
|
Cone |
1 |
|
|
577 |
192-0226
|
Pressure spring |
1 |
|
|
578 |
192-0227
|
O-ring 17.2 x 2.62mm |
1 |
|
|
579 |
192-0228
|
Inner filter sleeve |
1 |
|
|
580 |
192-0229
|
Outlet |
1 |
|
|
581 |
192-0230
|
Pipe elbow (OBSOLETE) |
1 |
|
|
582 |
192-0231
|
Hose (sold by the inch) (OBSOLETE) |
8 in |
|
|
583 |
192-0102
|
7 3/4 inch cable tie |
1 |
|
|
584 |
192-0186
|
Gasket |
3 |
|
|
585 |
192-0187
|
Threaded collar |
3 |
|
|
586 |
192-0232
|
Cover |
1 |
|
|
587 |
192-0233
|
Gasket |
1 |
|
|
588 |
192-0234
|
Disk |
1 |
|
|
589 |
192-0235
|
Nut M4 self locking |
3 |
|
|
N/S |
192-5972
|
Recycling set co 14-16-1800 (OBSOLETE) |
1 |
(optional for 1400/1600/1800) |
|
N/S |
192-0218
|
12mm teflon tape |
1 |
|
|
N/S |
192-0219
|
Silicone sealer |
1 |
|
|
N/S |
292-1056
|
Membrane stay |
1 |
|
|
N/S |
292-1057
|
Membrane stay |
1 |
|
|
