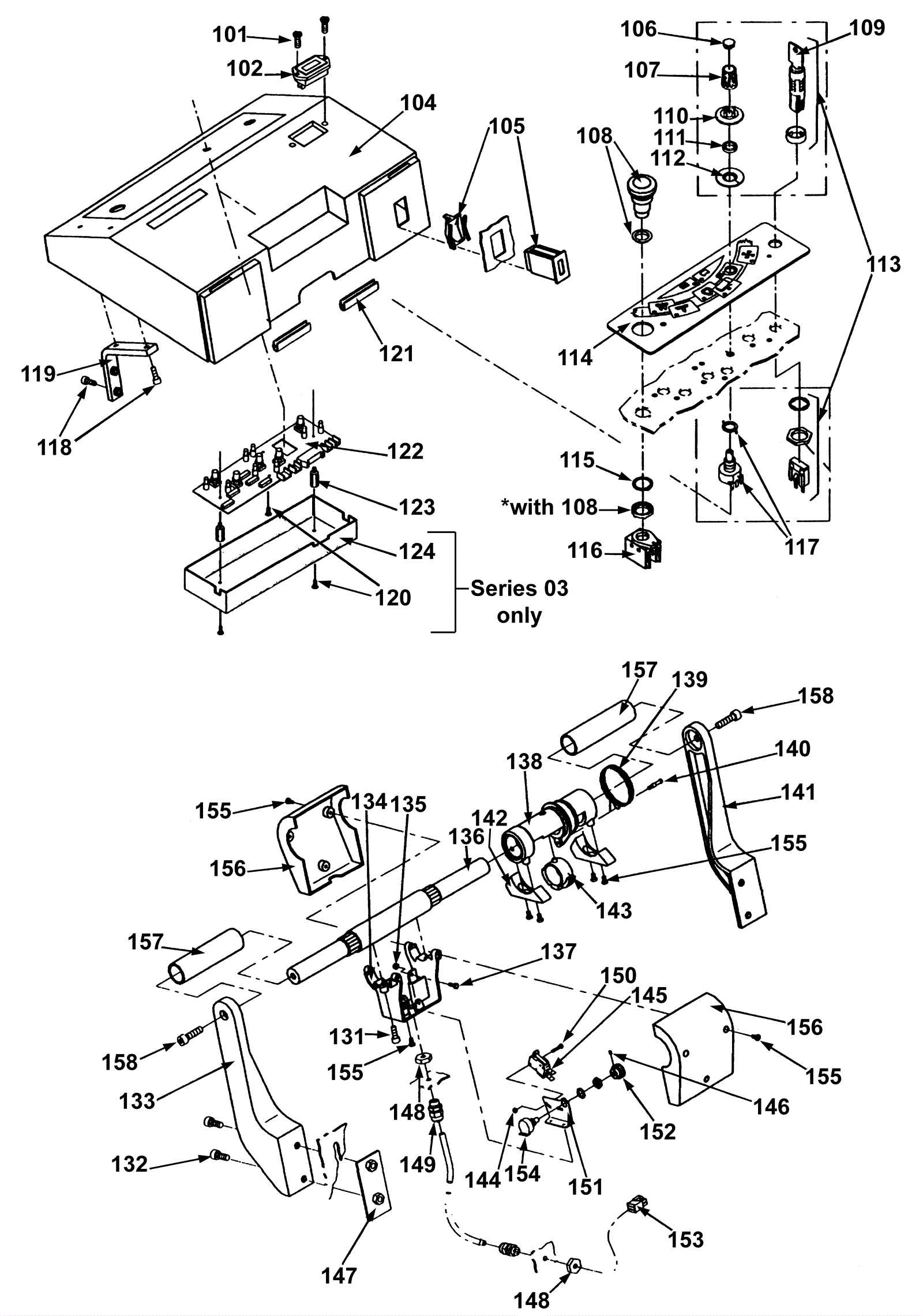

COMBIMAT 1900 Control Board Assembly - Series 1-3

#PartDescriptionPriceReqNotesAvailability
101 192-0003 Screw M3 x 10mm raised head $1.13 2 ships same day
102a 192-0004 Battery gauge (OBSOLETE) $233.51 1 usually ships 30-75 days
102b 192-0005 Cover (OBSOLETE) $2.74 1 usually ships 30-75 days
104 192-4524 Housing set $337.63 1 usually ships 30-75 days
105 192-0033 24V hour meter $81.88 1 usually ships 30-75 days
106 192-0019 Cover $2.44 1 usually ships 30-75 days
107 192-0020 Knob $12.35 1 usually ships 30-75 days
108 192-0029 Stop actuator (OBSOLETE) $147.94 1 usually ships 30-75 days
109a N/A Not available Call for price 1 (series 2 and 3) (center cut key) usually ships 3-26 days
109b 192-9311 Key Call for price 1 (series 1) usually ships 1-5 days
110 192-5323 Number disc (OBSOLETE) $3.27 1 usually ships 1-5 days
111 192-0022 Nut M10 x 3/4 $2.44 1 usually ships 1-5 days
112 192-0023 Reference disc $5.74 1 usually ships 1-5 days
113a 192-0025 Key switch assembly $280.57 1 (series 2 and 3) ships same day
113b 192-9310 Key switch Call for price 1 (series 1) usually ships 1-5 days
114 192-0017 Display panel $177.09 1 usually ships 1-5 days
115 192-0030 Ring $3.12 1 usually ships 1-5 days
116 192-0029 Stop actuator (OBSOLETE) $147.94 1 usually ships 30-75 days
117 192-0059 Potentiometer 5K $45.06 1 ships same day
118 192-0007 Screw M6 x 16mm socket head cap $2.44 8 ships same day
119 192-0006 Bracket (OBSOLETE) $26.60 2 usually ships 30-75 days
120 192-0013 Screw 3 x 5 raised head $4.59 4 (series 3) usually ships 30-75 days
121 192-2351 Bumper (sold by the inch) $9.06 3 in usually ships 30-75 days
122 192-0010 Display panel circuit board $464.00 1 usually ships 30-75 days
123 192-0011 Standoff bolt $9.85 2 usually ships 1-5 days
124 192-0012 Protection cover $58.75 1 (series 3) usually ships 30-75 days
131 192-0035 Screw M5 x 16mm socket head cap $1.11 2 ships same day
132 192-0036 Screw M8 x 20mm socket head $2.44 4 ships same day
133 192-0037 Right hand support $47.64 1 usually ships 1-5 days
134 192-0038 Handle bar support $55.34 1 usually ships 30-75 days
135 192-0039 Nut M4 hex $4.10 1 usually ships 30-75 days
136 192-0040 Handle bar $78.12 1 usually ships 30-75 days
137 192-0041 Screw 4mm centering $5.54 1 usually ships 1-5 days
138 192-0042 Handle bar bushing $22.68 1 usually ships 30-75 days
139 192-0043 Torsion spring $27.13 1 usually ships 30-75 days
140 192-0044 Bolt (OBSOLETE) $4.77 1 usually ships 1-5 days
141 192-0045 Left hand support $47.64 1 usually ships 1-5 days
142 192-0046 Lever $8.89 2 usually ships 30-75 days
143 192-0047 Positioning ring $24.74 1 usually ships 30-75 days
144 192-0048 Nut M3 hex $2.44 2 usually ships 30-75 days
145 192-0049 Microswitch (OBSOLETE) $21.76 1 usually ships 30-75 days
146 192-0050 Screw M3 x 5mm hex set $0.89 1 ships same day
147 192-0051 Tapped plate $20.08 2 usually ships 1-5 days
148 192-0052 Nut hex $2.44 2 usually ships 30-75 days
149 192-0053 Cable bushing $4.10 2 usually ships 30-75 days
150 192-0054 Screw M3 x 16mm raised cheese head $4.76 2 ships same day
151 192-0055 Angle bracket $92.50 1 usually ships 1-5 days
152 192-0056 Gear $11.35 1 usually ships 30-75 days
153 192-0057 6 pole female plug $2.44 1 ships same day
154 192-0059 Potentiometer 5K $45.06 1 ships same day
155 192-0060 Screw M4 x 8 self tapping forming $2.44 12 usually ships 30-75 days
156 192-0061 Housing $8.43 2 usually ships 30-75 days
157 192-0062 Handle grip (OBSOLETE) $17.53 2 usually ships 30-75 days
