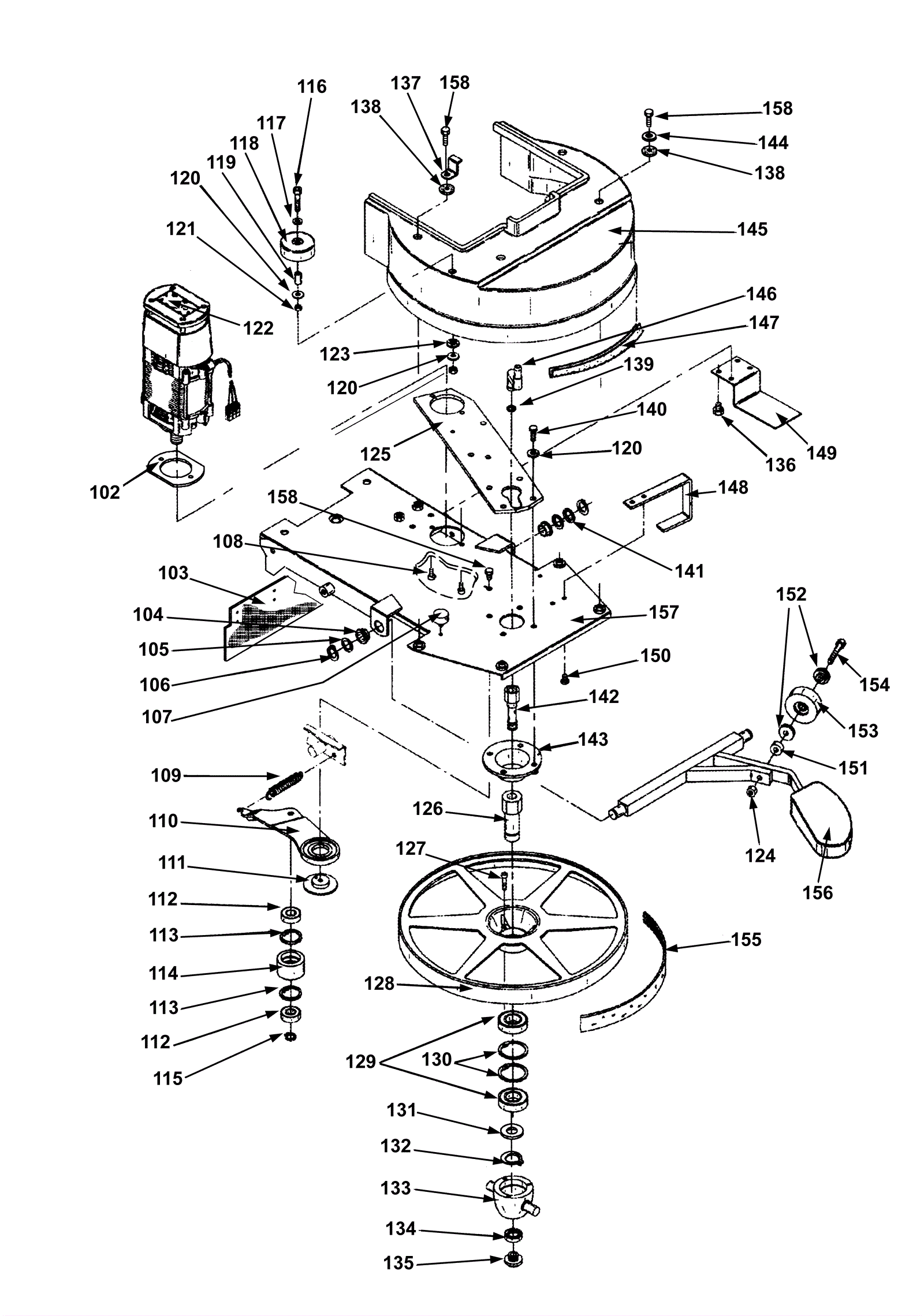

| # | Part | Description |
Req | Notes | Availability |
|---|
102 |
192-1279
|
Noise absorbing disc (OBSOLETE) |
1 |
|
|
103 |
192-1280
|
Noise absorbing shield (OBSOLETE) |
1 |
|
|
104 |
192-1281
|
Slide bearing (OBSOLETE) |
2 |
|
|
105 |
192-1282
|
Leveling disc (OBSOLETE) |
2 |
|
|
106 |
192-1283
|
Retaining ring (OBSOLETE) |
2 |
|
|
107 |
192-1284
|
Buffer (OBSOLETE) |
2 |
|
|
108a |
192-1285
|
Screw M6 x 25mm hex head |
2 |
Series 06 |
|
108b |
192-4222
|
Screw M6 x 20 hex head |
1 |
Series 04 |
|
109 |
192-1286
|
Tension spring |
1 |
|
|
110 |
192-1287
|
Shoulder mounting plate (OBSOLETE) |
1 |
|
|
111 |
192-1288
|
Shoulder disc (OBSOLETE) |
1 |
|
|
112 |
192-0488
|
Ball bearing |
2 |
|
|
113 |
192-0489
|
Retaining ring |
2 |
|
|
114 |
192-0812
|
Tensioner pulley (OBSOLETE) |
1 |
|
|
115 |
192-0075
|
Retaining ring |
1 |
|
|
116 |
192-1289
|
Screw M8 x 35mm socket head cap |
1 |
|
|
117 |
192-0105
|
Washer M8 |
1 |
|
|
118 |
192-0329
|
Bumper wheel |
1 |
|
|
119 |
192-1290
|
Bushing |
1 |
|
|
120 |
192-0079
|
Washer |
6 |
|
|
121 |
192-1292
|
Bushing |
1 |
|
|
122 |
192-1293
|
Battery installation guide |
1 |
|
|
123 |
192-1294
|
Rubber washer |
1 |
|
|
124 |
192-0347
|
Nut M8 hex |
2 |
|
|
125 |
192-1295
|
Plate (OBSOLETE) |
1 |
|
|
126 |
192-0844
|
Axle |
1 |
|
|
127b |
192-1405
|
Screw M6 x 35 socket head cap |
3 |
Series 04 |
|
128 |
192-1296
|
Pulley (OBSOLETE) |
1 |
|
|
129 |
192-0501
|
Ball bearing |
2 |
|
|
130 |
192-0500
|
Retaining ring |
2 |
|
|
131a |
192-0813
|
Spacer |
1 |
|
|
131b |
N/A
|
Not available |
1 |
(Series 04) (leveling disc) |
|
132 |
192-0503
|
Retaining ring |
1 |
|
|
133 |
192-0814
|
Coupling |
1 |
|
|
134 |
192-0815
|
Shaft seal |
1 |
|
|
135 |
192-0816
|
Supporting plug |
2 |
|
|
136 |
192-0509
|
Screw M8 x 12mm hex head |
2 |
|
|
137 |
192-1298
|
Bracket (OBSOLETE) |
6 |
|
|
138 |
192-1299
|
Gasket (OBSOLETE) |
1 |
|
|
139 |
192-0820
|
O-ring |
4 |
|
|
140 |
192-0153
|
Screw M8 x 20mm hex head |
1 |
|
|
141 |
192-0721
|
Washer waved |
1 |
|
|
142 |
192-0841
|
Nipple (OBSOLETE) |
1 |
|
|
143 |
192-1300
|
Flange (OBSOLETE) |
2 |
|
|
144 |
192-1301
|
Washer (OBSOLETE) |
1 |
|
|
145 |
192-1302
|
Brush housing (OBSOLETE) |
1 |
|
|
146 |
192-1303
|
Nipple (OBSOLETE) |
1 |
|
|
147 |
192-2351
|
Bumper (sold by the inch) |
36 in |
|
|
148 |
192-1304
|
Bracket (OBSOLETE) |
1 |
|
|
149 |
192-1305
|
Bracket (OBSOLETE) |
2 |
|
|
150 |
192-1109
|
Screw M6 x 10mm hex head |
1 |
|
|
151 |
192-1306
|
Bushing |
2 |
|
|
152 |
192-0828
|
Bushing (OBSOLETE) |
1 |
|
|
153 |
192-0829
|
Pulley (OBSOLETE) |
1 |
|
|
154 |
999-0178
|
Bolt 5/16-18 x 2 hex head grade 5 zinc plated |
1 |
|
|
155 |
192-1307
|
Drive belt |
1 |
|
|
156 |
192-1308
|
Lever (OBSOLETE) |
1 |
|
|
157 |
192-1309
|
Base plate (OBSOLETE) |
1 |
|
|
158 |
999-0517
|
Bolt M8-1.25 x 16mm hex head full thread zinc |
5 |
|
|
