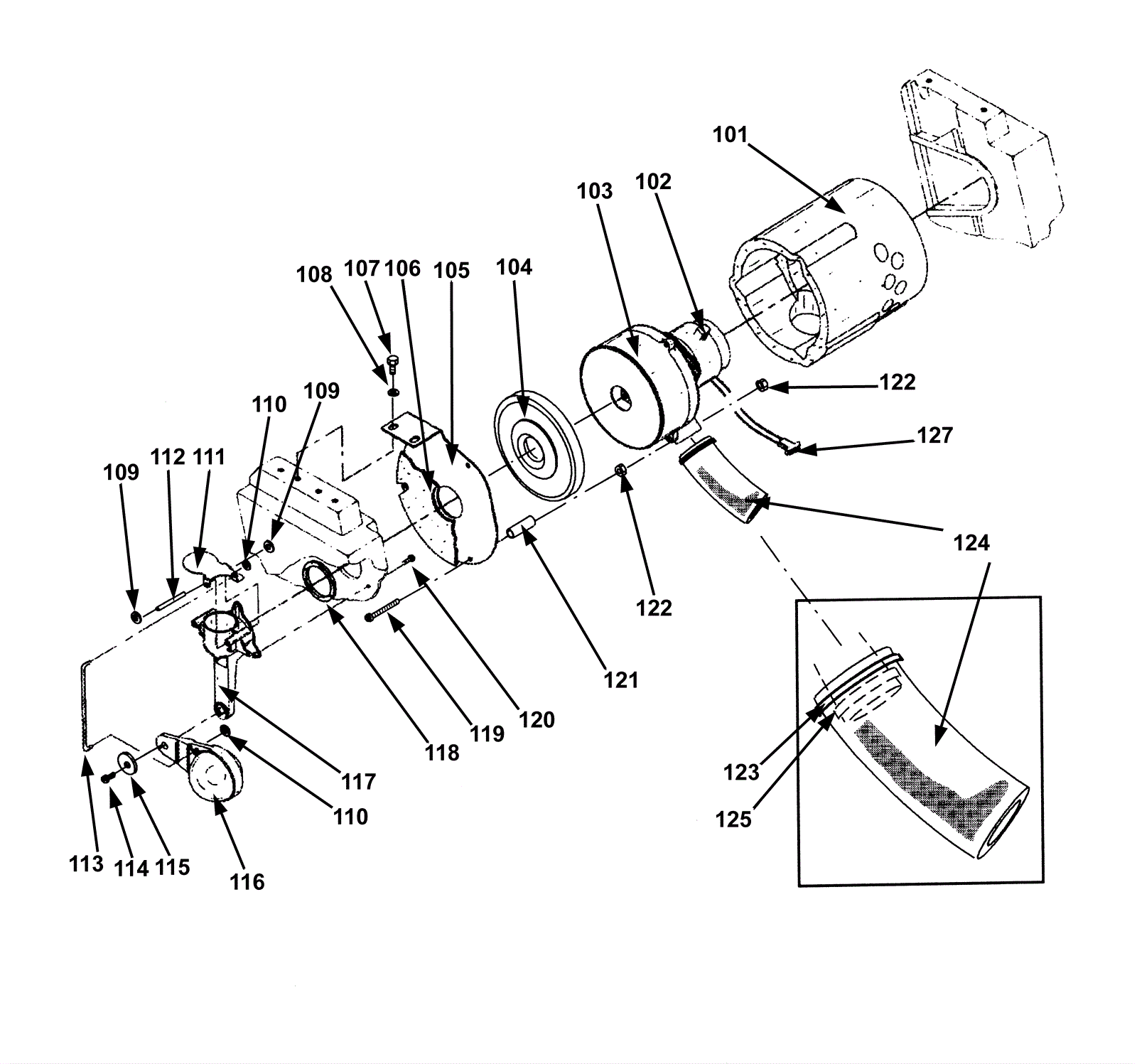

| # | Part | Description |
Req | Notes | Availability |
|---|
101 |
192-1316
|
Noise absorbing mantle (OBSOLETE) |
1 |
|
|
102 |
192-0771
|
Carbon brush plastic (black) (clip in) |
2 |
|
|
103 |
192-7280
|
24V, 2 stage vac motor by pass dual ball tangential discharg |
1 |
|
|
104 |
N/A
|
Not available |
1 |
(Gasket) |
|
105 |
192-1318
|
Bracket (OBSOLETE) |
1 |
|
|
106 |
192-1319
|
Noise absorbing disc (OBSOLETE) |
1 |
|
|
107 |
192-0509
|
Screw M8 x 12mm hex head |
2 |
|
|
108 |
192-0079
|
Washer |
2 |
|
|
109 |
192-0653
|
Washer |
2 |
|
|
110 |
192-0747
|
Washer (OBSOLETE) |
2 |
|
|
111 |
192-0746
|
Flap (OBSOLETE) |
1 |
|
|
112 |
192-0745
|
Dowel pin (OBSOLETE) |
1 |
|
|
113 |
192-0749
|
Rod (OBSOLETE) |
1 |
|
|
114 |
192-0767
|
Screw KA 40 x 10 |
1 |
|
|
115 |
192-0750
|
Washer (OBSOLETE) |
1 |
|
|
116 |
192-0758
|
Float (OBSOLETE) |
1 |
|
|
117 |
192-1320
|
Housing (OBSOLETE) |
1 |
|
|
118 |
192-0756
|
Gasket |
1 |
|
|
119 |
192-1321
|
Screw M6 x 80 raised cheese head (OBSOLETE) |
3 |
|
|
120 |
192-0547
|
Screw KA 40 x 14 |
3 |
|
|
121 |
192-1322
|
Bushing (OBSOLETE) |
3 |
|
|
122 |
192-0151
|
Nut M6 hex |
6 |
|
|
123 |
192-0794
|
Cable tie |
1 |
|
|
124 |
192-1323
|
Hose |
1 |
|
|
125 |
192-0764
|
Hose clamp |
1 |
|
|
127a |
192-0297
|
2-pole plug |
1 |
|
|
127b |
192-0298
|
Plug pin |
2 |
|
|
