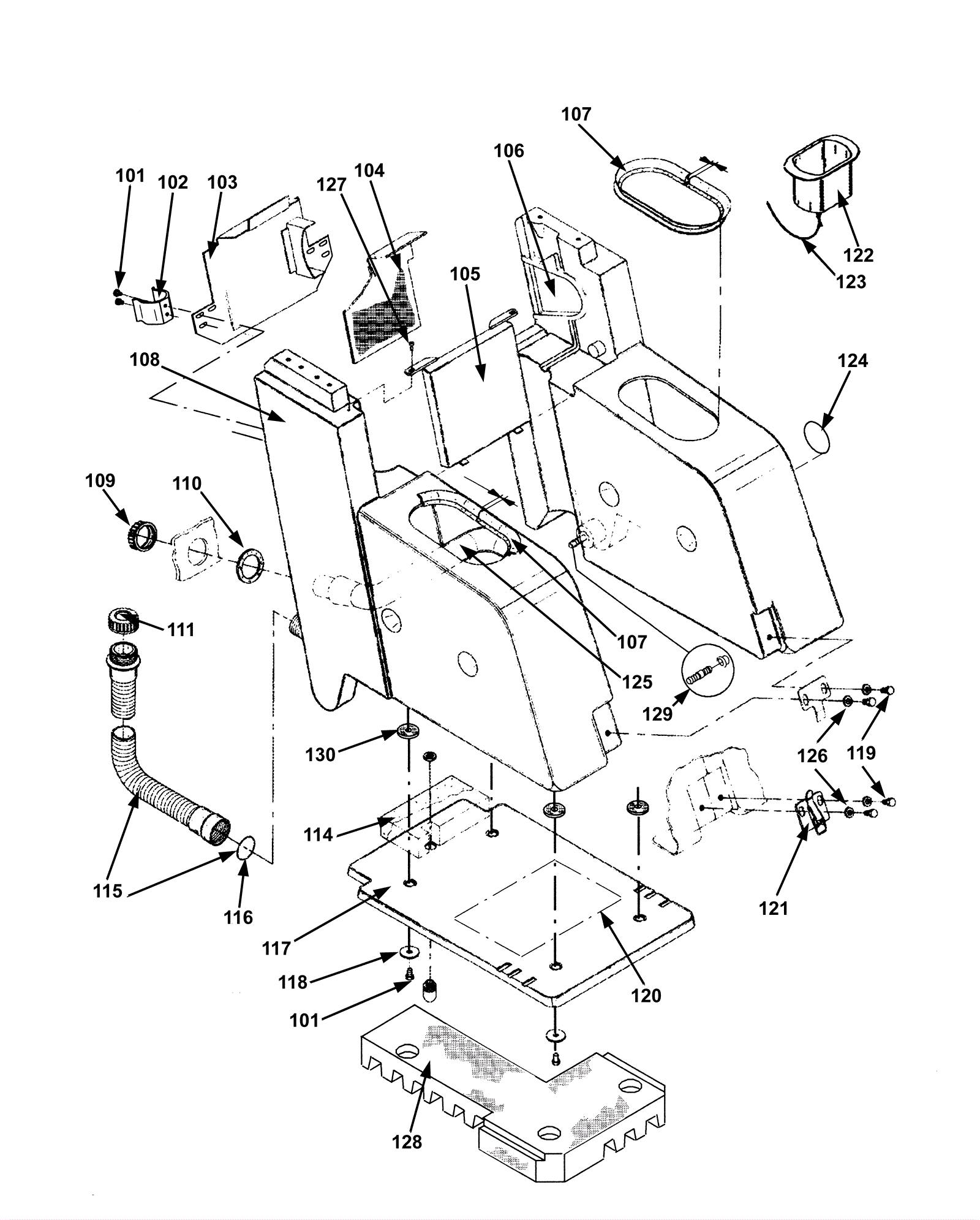

| # | Part | Description |
Req | Notes | Availability |
|---|
101a |
192-0968
|
Screw KA 60 x 16 |
8 |
Series 04 and 06 |
|
101b |
192-0460
|
Screw 30 x 10 |
2 |
Series 02 |
|
102a |
192-0099
|
Hose holder |
2 |
Series 04 and 06 |
|
102b |
N/A
|
Not available |
2 |
Series 02 (hose holder) |
|
103 |
192-1324
|
Cover (OBSOLETE) |
1 |
|
|
104 |
192-1325
|
Noise absorbing plate (OBSOLETE) |
1 |
|
|
105 |
192-1326
|
Cover (OBSOLETE) |
1 |
|
|
106 |
192-1327
|
Solution tank (OBSOLETE) |
1 |
|
|
107 |
192-0741
|
Gasket material (this piece is 39 iches) (OBSOLETE) |
1 |
cut to 22 inches |
|
108 |
192-1328
|
Recovery tank (OBSOLETE) |
1 |
|
|
109 |
192-0187
|
Threaded collar |
1 |
|
|
110 |
192-0737
|
Gasket |
1 |
|
|
111a |
192-0237
|
Threaded cap (red) |
1 |
|
|
111b |
192-0236
|
Threaded cap (blue) |
1 |
|
|
112 |
192-0236
|
Threaded cap (blue) |
1 |
|
|
114 |
192-1329
|
Noise absorbing plate (OBSOLETE) |
1 |
|
|
115 |
192-0739
|
Hose |
2 |
|
|
116 |
192-0115
|
O-ring |
2 |
|
|
117 |
192-1330
|
Cover (OBSOLETE) |
1 |
|
|
118 |
192-1331
|
Washer 7/35 |
4 |
|
|
119 |
192-0509
|
Screw M8 x 12mm hex head |
2 |
|
|
120a |
192-1332
|
Diagram |
1 |
Series 06 |
|
120b |
N/A
|
Not available |
1 |
Diagram, Series 02 |
|
121 |
192-1333
|
Latch (OBSOLETE) |
1 |
|
|
122 |
192-0742
|
Measuring cup (OBSOLETE) |
1 |
|
|
123 |
192-0714
|
Cord (sold by the inch) |
28 in |
|
|
124 |
192-0185
|
Decal (blue) |
1 |
|
|
125 |
192-0738
|
Intake hose |
1 |
|
|
126 |
192-0079
|
Washer |
2 |
|
|
127 |
192-1334
|
Screw pan head self tapping |
2 |
|
|
128 |
192-1335
|
Positioning plate |
1 |
|
|
129 |
192-1336
|
Nipple with gasket |
1 |
|
|
130 |
192-1337
|
Gasket (OBSOLETE) |
4 |
|
|
