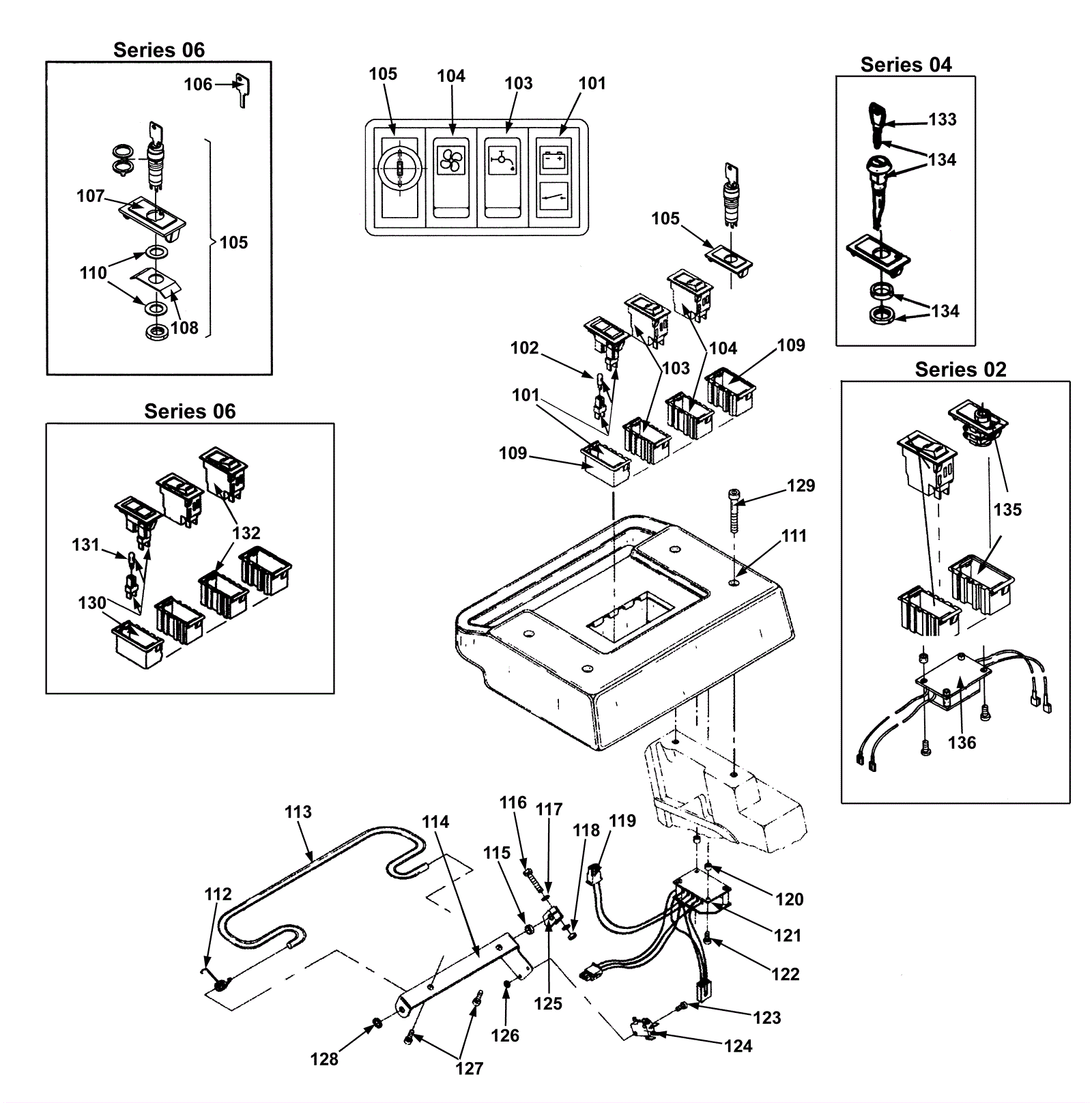

| # | Part | Description |
Req | Notes | Availability |
|---|
101 |
192-1931
|
Battery indicator (OBSOLETE) |
1 |
|
|
102 |
192-4734
|
Led 24 volt (OBSOLETE) |
4 |
|
|
103 |
192-6104
|
Rocker switch (OBSOLETE) |
1 |
|
|
104 |
192-6105
|
Rocker switch (OBSOLETE) |
1 |
Vac motor |
|
105 |
192-4665
|
Key switch |
1 |
Solution |
|
106 |
192-1064
|
Side cut key |
1 |
Series 06 |
|
107 |
192-1370
|
Clamping plate |
1 |
Series 06 |
|
108 |
192-1371
|
Clamp bracket (OBSOLETE) |
1 |
Series 06 |
|
109 |
192-1372
|
End frame |
2 |
|
|
110 |
192-1373
|
Gasket (OBSOLETE) |
2 |
Series 06 |
|
111 |
192-1374
|
Housing (OBSOLETE) |
1 |
|
|
112 |
192-1375
|
Torsion spring (OBSOLETE) |
1 |
|
|
113 |
192-1376
|
Connecting rod (OBSOLETE) |
1 |
|
|
114 |
192-1377
|
Bracket (OBSOLETE) |
1 |
|
|
115 |
192-1292
|
Bushing |
1 |
|
|
116 |
192-1003
|
Screw M5 x 35mm raised cheese head hex |
1 |
|
|
117 |
192-0880
|
Washer M5 |
2 |
|
|
118 |
192-0383
|
Nut M5 hex |
1 |
|
|
119 |
192-1379
|
Clip housing (OBSOLETE) |
1 |
|
|
120 |
192-1380
|
Bushing (OBSOLETE) |
2 |
|
|
121 |
N/A
|
Not available |
1 |
(Switch off print) |
|
122 |
192-0460
|
Screw 30 x 10 |
2 |
|
|
123 |
192-0054
|
Screw M3 x 16mm raised cheese head |
2 |
|
|
124 |
192-0049
|
Microswitch (OBSOLETE) |
1 |
|
|
125 |
192-1382
|
Lever (OBSOLETE) |
1 |
|
|
126 |
192-0048
|
Nut M3 hex |
2 |
|
|
127 |
192-0706
|
Screw M50 x 16mm for plastic |
2 |
|
|
128 |
192-1362
|
Elastic ring (OBSOLETE) |
1 |
|
|
129 |
192-1144
|
Screw M8 x 55mm socket head |
4 |
|
|
130 |
192-1931
|
Battery indicator (OBSOLETE) |
1 |
Series 06 |
|
131 |
N/A
|
Not available |
1 |
(Series 06) (Lamp) |
|
132 |
192-6105
|
Rocker switch (OBSOLETE) |
1 |
Series 06 |
|
133 |
192-4647
|
Key |
1 |
Series 04 |
|
134 |
192-4665
|
Key switch |
1 |
Series 04 |
|
135 |
N/A
|
Not available |
1 |
Series 02, Main switch |
|
136 |
N/A
|
Not available |
1 |
Series 02, Printed circular flasher |
|
