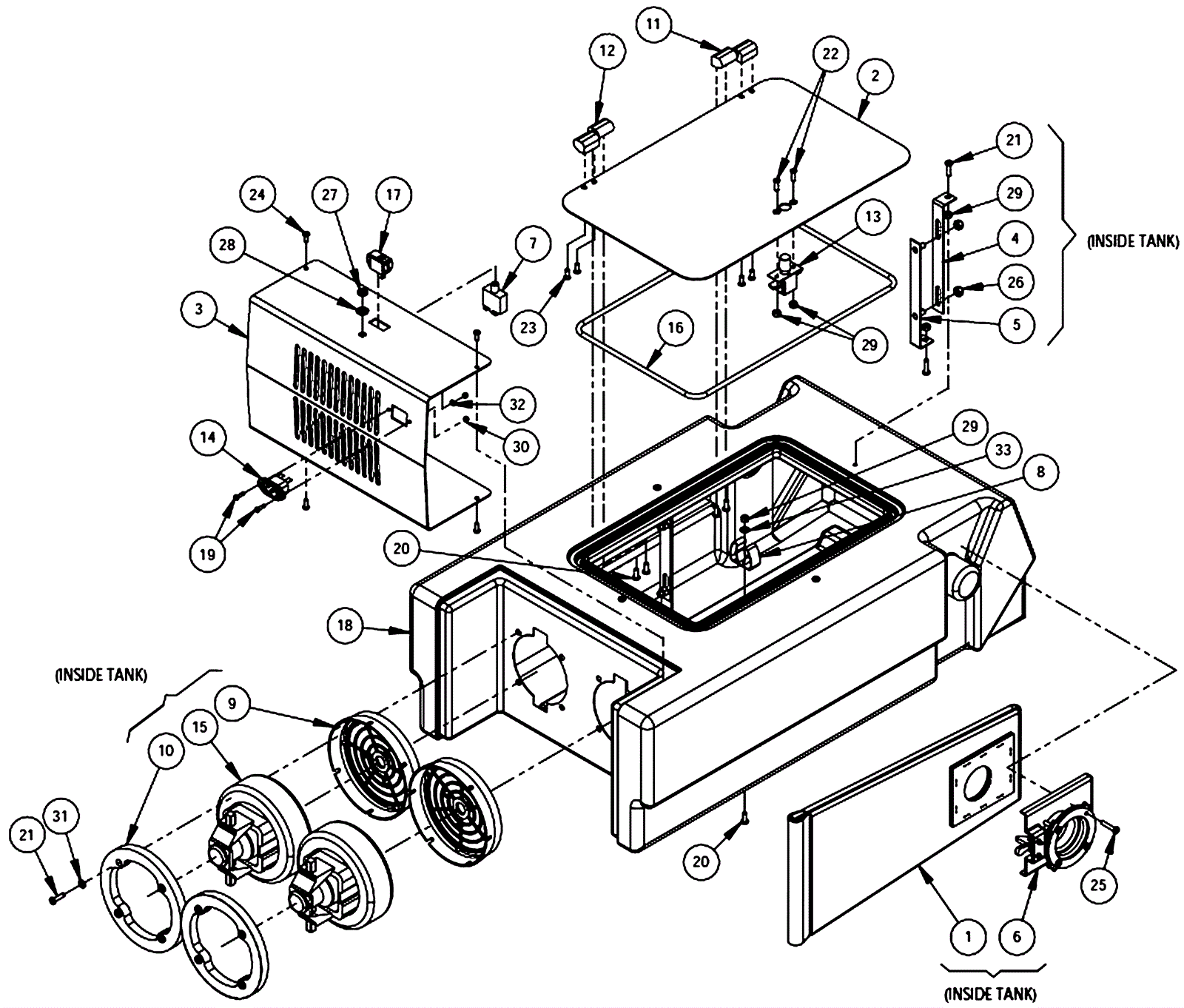

TREADMASTER Base and Cover Assembly

#PartDescriptionPriceReqNotesAvailability
1 191-0004 Cloth vacuum bag (obsolete) $132.00 1 usually ships 14-18 days
2 191-0038 Vacuum tank panel (obsolete) $170.50 1 usually ships 1-5 days
3 191-0048 Motor housing panel (obsolete) $84.70 1 usually ships 1-5 days
4 191-0052 Inner support bracket (obsolete) $28.60 4 usually ships 1-5 days
5 191-0237 Outer support bracket (obsolete) $26.40 4 usually ships 1-5 days
6 191-0033 Bag holder assembly (obsolete) $205.08 1 usually ships 14-18 days
7 191-0049 15amp circuit breaker (obsolete) $12.73 1 usually ships 14-18 days
8 191-0238 Spring clamp (obsolete) $5.28 1 usually ships 1-5 days
9 991-5119 Vacuum motor filter $1.35 2 ships same day
10 191-0036 Vacuum motor gasket (obsolete) $7.89 2 usually ships 14-18 days
11 191-0054 Left side hinge set (obsolete) $15.40 1 usually ships 1-5 days
12 191-0055 Right side hinge set (obsolete) $13.20 1 usually ships 1-5 days
13 191-0003 Latch (obsolete) $29.70 1 usually ships 1-5 days
14 191-0046 Male plug $11.13 1 ships same day
15 191-0079 120V vacuum motor (obsolete) $242.65 2 usually ships 14-18 days
16 191-0239 Round cord (OBSOLETE) $5.50 4 ft usually ships 1-5 days
17 191-0047 16amp mini rocker switch (obsolete) $9.90 1 usually ships 14-18 days
18 191-0051 Vacuum tank (obsolete) $368.50 1 usually ships 1-5 days
19 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated $0.99 2 ships same day
20 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel $0.99 5 ships same day
21 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel $0.99 16 ships same day
22 999-0643 Screw 10-24 x 5/8 flat head phillips stainless steel $0.99 2 ships same day
23 999-0421 Screw 10-24 x 1/2 flat head phillips zinc plated $0.99 4 ships same day
24 999-0458 Screw 8 x 1/2 pan head phillips T-A sheet metal zinc $0.99 4 ships same day
25 999-0520 Screw 10-24 x 1 pan head phillips stainless steel $0.99 4 ships same day
26 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 8 ships same day
27 191-0240 Knurled nut (OBSOLETE) $1.87 1 usually ships 1-5 days
28 191-0241 Nut (OBSOLETE) $1.87 1 usually ships 1-5 days
29 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 11 ships same day
30 999-0337 Nut 6-32 nylon insert lock stainless steel $0.99 2 ships same day
31 999-0998 Washer #10 flat stainless steel $0.99 8 ships same day
32 999-1158 Washer #6 flat stainless steel $0.99 1 ships same day
33 999-0017 Washer 1/4 external star lock $0.99 1 ships same day
N/S 191-0037 Vacuum hose assembly (OBSOLETE) $220.98 1 usually ships 14-18 days
N/S 191-0039 Vacuum crevice tool (OBSOLETE) $3.80 1 usually ships 1-5 days
N/S 191-0173 Screw $0.99 1 usually ships 1-5 days
N/S 191-0297 Vacuum motors assembly (obsolete) $107.80 2 usually ships 14-18 days
N/S 370-7051 FILTER VAC MOTOR MOD (obsolete) $9.35 1 usually ships 14-18 days
