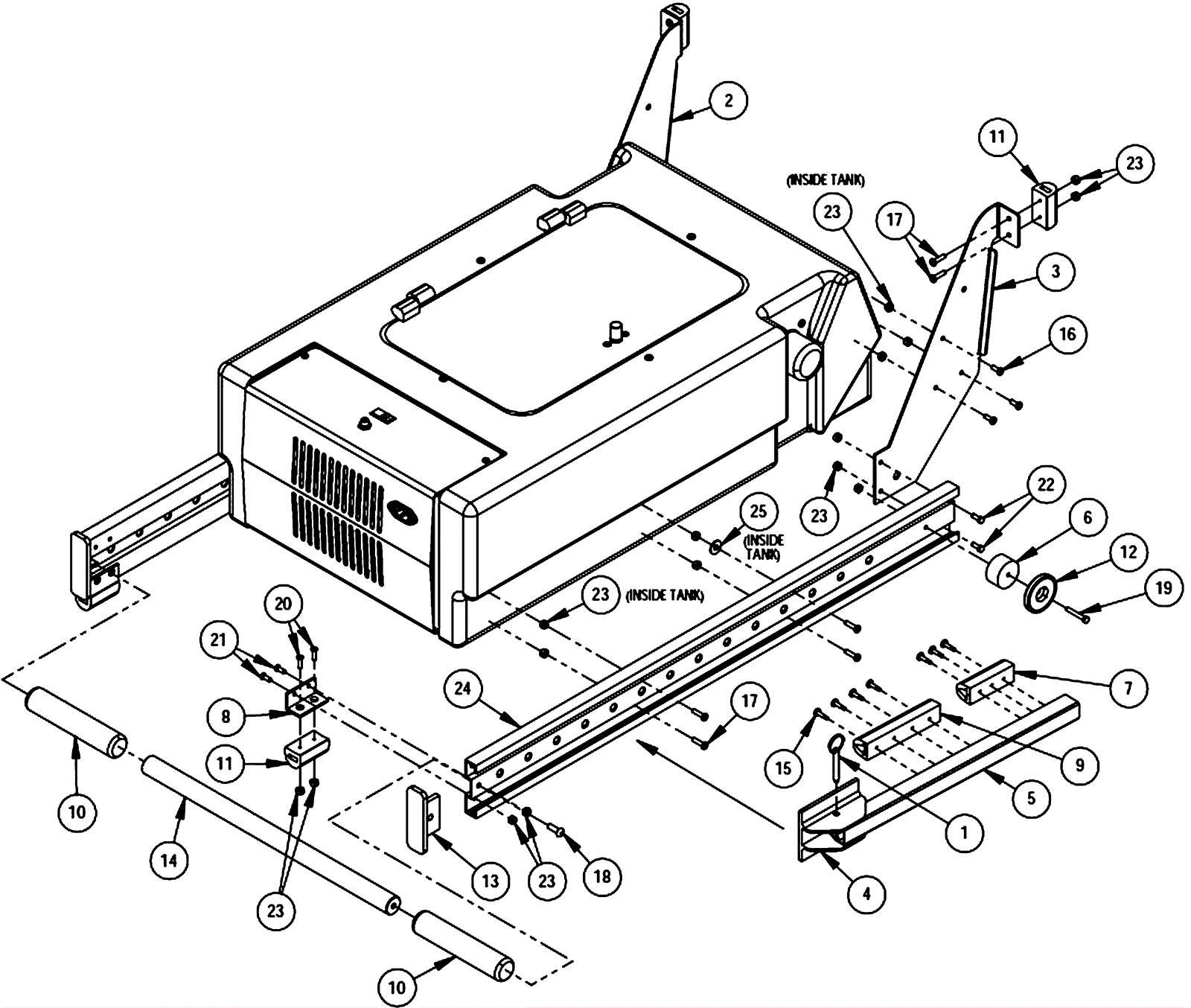

TREADMASTER Side Rail Assembly

#PartDescriptionPriceReqNotesAvailability
1 191-0030 Release pin (obsolete) $11.13 2 usually ships 14-18 days
2 191-0070 Right side heel plate (obsolete) $40.70 1 usually ships 1-5 days
3 191-0069 Left side heel plate (obsolete) $110.00 1 usually ships 1-5 days
4 191-0029 Sliding bracket $42.35 2 usually ships 14-18 days
5 191-0077 16 inch extension arm bracket $273.33 2 usually ships 14-18 days
6 191-0028 Spacer (OBSOLETE) $9.63 2 usually ships 14-18 days
7 191-0075 Bumper protector (obsolete) $36.56 2 usually ships 14-18 days
8 191-0034 Bumper end bracket (obsolete) $33.00 2 usually ships 1-5 days
9 191-0076 5 inch bumper protector (obsolete) $50.05 2 usually ships 14-18 days
10 191-0043 Foam handle grip (OBSOLETE) $5.50 2 usually ships 1-5 days
11 191-0068 Pad protector (obsolete) $22.00 4 usually ships 14-18 days
12 191-0027 Magnet (obsolete) $25.30 2 usually ships 1-5 days
13 191-0042 Bumper end protector (obsolete) $23.86 2 usually ships 14-18 days
14 191-0044 Crossbar frame (OBSOLETE) $61.60 1 usually ships 1-5 days
15 191-0236 Tek screw (obsolete) $5.28 14 usually ships 14-18 days
16 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel $0.99 6 ships same day
17 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel $0.99 12 ships same day
18 999-0456 Screw 1/4-20 x 3/4 pan head phillips stainless steel $1.76 2 ships same day
19 999-1477 Screw 10-24 x 1 1/4 hex head stainless steel $0.99 2 ships same day
20 999-0643 Screw 10-24 x 5/8 flat head phillips stainless steel $0.99 4 ships same day
21 999-0421 Screw 10-24 x 1/2 flat head phillips zinc plated $0.99 4 ships same day
22 999-1369 Screw 10-24 x 1/2 hex head thread cutting stainless steel $0.99 4 ships same day
23 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 32 ships same day
24 191-0045 Rail frame $214.50 2 ships same day
25 999-0016 Washer 1/4 flat plain finish $0.99 1 ships same day
