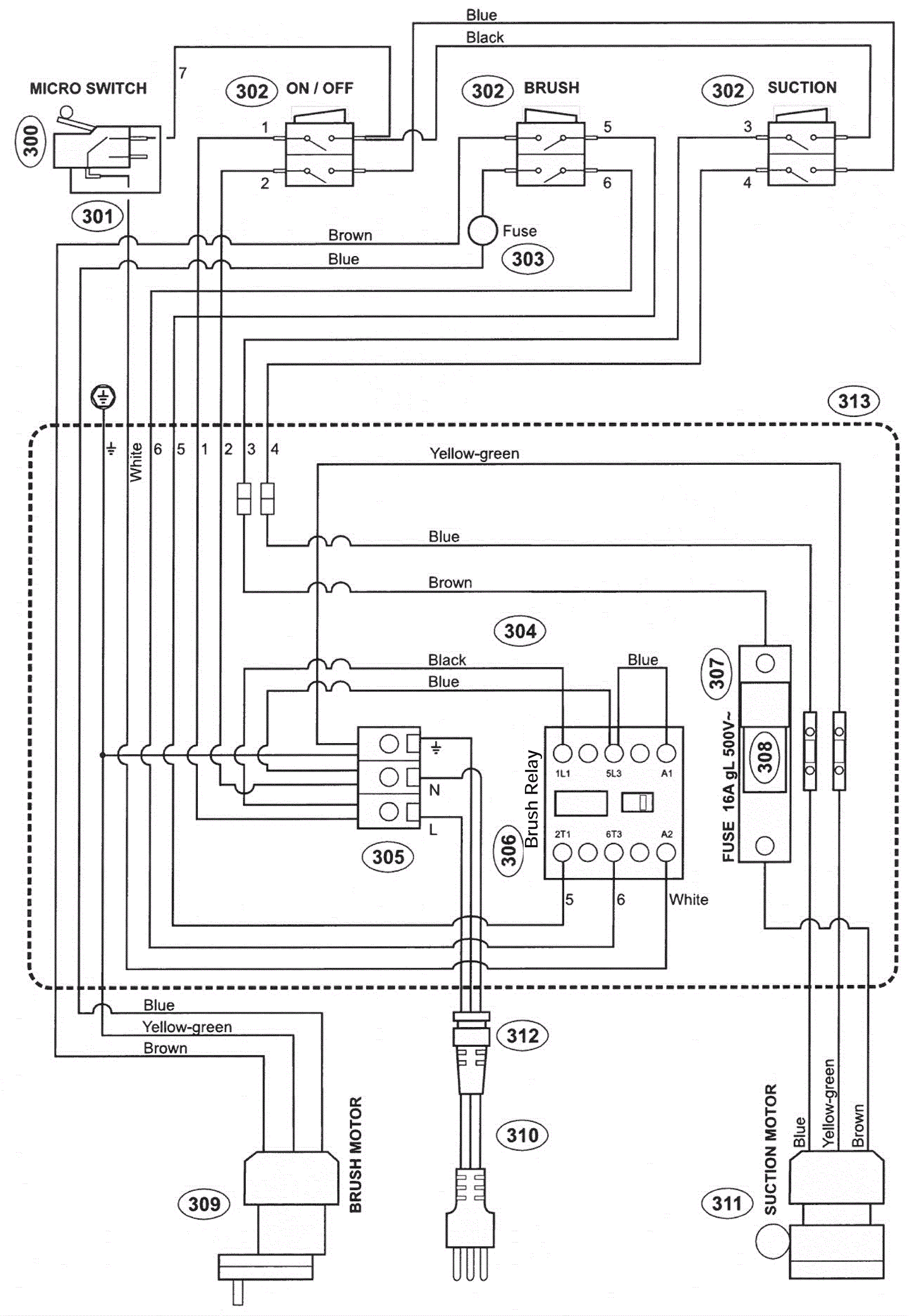

PAS20E Electrical Diagram

#PartDescriptionPriceReqNotesAvailability
300 190-0739 Micro switch $77.54 1 usually ships 10-27 days
301 190-9704 Micro switch cover Call for price 1 usually ships 10-27 days
302 190-9705 Switch $29.21 3 usually ships 10-27 days
303 190-9706 20amp thermal fuse Call for price 1 usually ships 10-27 days
305 190-9707 Connecting board $21.44 1 usually ships 10-27 days
306 190-9708 Brush relay Call for price 1 usually ships 10-27 days
307 190-9709 Fuse holder $98.98 1 usually ships 10-27 days
308 190-0909 16amp fuse $10.12 1 usually ships 10-27 days
309 190-9710 Brush motor $1,485.58 1 usually ships 10-27 days
310 190-9711 Cable Call for price 1 usually ships 10-27 days
311 190-9712 120V vacuum motor Call for price 1 usually ships 10-27 days
312 190-9713 Strain relief $9.17 1 usually ships 10-27 days
313 190-9714 IP55 Box Call for price 1 usually ships 10-27 days
