PAS20BA-BC

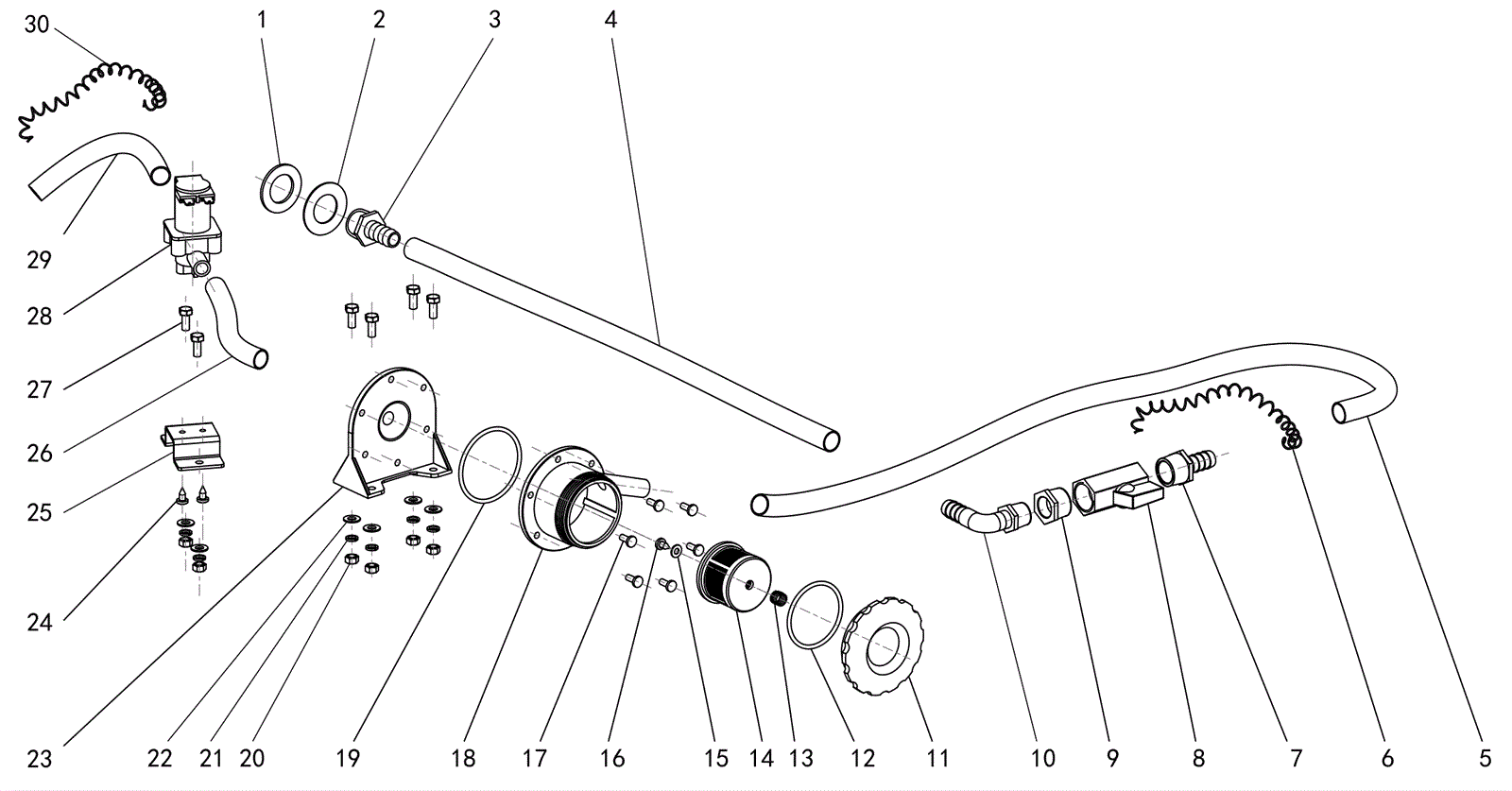

Valve and Filter Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
1
190-9614
Gasket
Call for price
1
usually ships 14-30 days
2
190-9615
Washer
Call for price
1
usually ships 14-30 days
3
190-9616
Connector (OBSOLETE)
$4.48
1
usually ships 14-30 days
4
190-9617
Hose
$2.60
1
usually ships 14-30 days
5
190-9618
Hose
$5.18
1
usually ships 14-30 days
6
190-9619
Spring
$3.45
1
usually ships 14-30 days
7
190-9620
Connector
$5.15
1
usually ships 14-30 days
8
190-9621
Ball valve
$18.55
1
usually ships 14-30 days
9
190-9622
Bushing
$2.31
1
usually ships 14-30 days
10
190-9623
Curved connector
$15.48
1
usually ships 14-30 days
11
190-9088
Cover
$4.33
1
usually ships 14-30 days
12
190-9089
O-ring
$1.23
1
usually ships 14-30 days
13
190-9624
Spring
Call for price
1
usually ships 14-30 days
14
190-9091
Filter
$1.23
1
usually ships 14-30 days
15
190-9605
Washer M4
Call for price
1
usually ships 14-30 days
16
190-9625
Screw M4.2 x 9.5
Call for price
1
usually ships 14-30 days
17
190-9626
Rivet M4 x 16mm
Call for price
6
usually ships 14-30 days
18
190-9095
Filter support
$1.23
1
usually ships 14-30 days
19
190-9096
O-ring
$1.23
1
ships same day
20
190-9586
Nut M5
Call for price
6
usually ships 14-30 days
21
190-9531
M5 lock washer
$1.23
6
usually ships 14-30 days
23
190-0915
Filter bracket
$1.23
1
usually ships 14-30 days
24
190-9161
Screw M4.2 x 6.5mm
$2.31
2
usually ships 14-30 days
25
190-9101
Bracket
$7.05
1
usually ships 14-30 days
26
190-9098
Hose
$3.83
1
ships same day
27
190-9116
Bolt
$2.24
4
usually ships 14-30 days
28
190-9103
Solution solenoid valve
$30.26
1
usually ships 14-30 days
29
190-9104
Hose
$3.00
1
usually ships 14-30 days
30
190-9627
Spring
Call for price
1
usually ships 14-30 days
