PAS20BA-BC

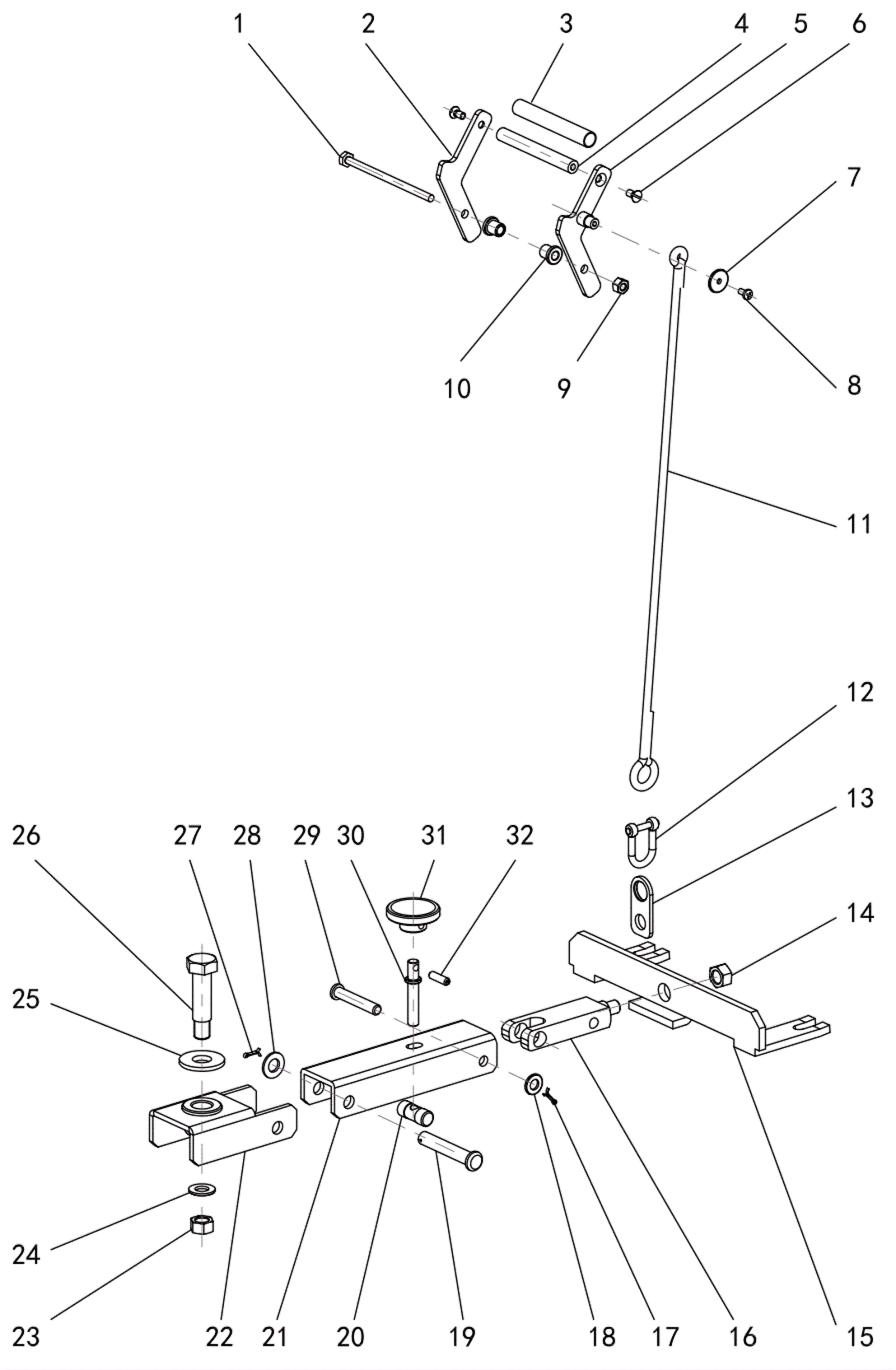

Squeegee Lift Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
1
190-9539
Chain
Call for price
1
usually ships 14-30 days
2
190-9558
Right hand plate
$38.01
1
usually ships 14-30 days
3
190-9559
Pipe
$2.97
1
usually ships 14-30 days
4
190-9561
Handle
$13.81
1
usually ships 14-30 days
5
190-9562
Left hand plate
$12.25
1
usually ships 14-30 days
6
190-9563
Screw M5 x 12mm
$5.00
1
usually ships 14-30 days
8
190-9564
Screw M4 x 8mm
$1.23
1
usually ships 14-30 days
9
190-9565
Nut M6
Call for price
1
usually ships 14-30 days
10
190-9566
Bushing
$4.74
2
usually ships 14-30 days
11
190-0821
Cable assembly
$282.43
1
usually ships 14-30 days
12
190-9567
Clevis
$2.81
1
usually ships 14-30 days
13
190-9568
Hand ring
$2.93
1
usually ships 14-30 days
14
190-9574
Nut M10
Call for price
1
usually ships 14-30 days
15
190-9570
Frame
$40.09
1
usually ships 14-30 days
16
190-9074
Screw M8x40mm
$1.23
1
usually ships 14-30 days
17
190-9135
Cotter pin
$3.38
1
usually ships 14-30 days
18
190-9058
Washer
$1.54
1
usually ships 14-30 days
19
190-9571
Pin
$5.00
1
usually ships 14-30 days
20
190-9572
Nut
$6.59
1
usually ships 14-30 days
21
190-9573
Supporting arm
$35.98
1
usually ships 14-30 days
23
190-9574
Nut M10
Call for price
1
usually ships 14-30 days
24
190-9578
Washer M10
Call for price
1
usually ships 14-30 days
25
190-9576
Washer M12
Call for price
1
usually ships 14-30 days
26
190-9577
Shoulder bolt
$10.42
1
usually ships 14-30 days
27
190-9135
Cotter pin
$3.38
1
usually ships 14-30 days
28
190-9578
Washer M10
Call for price
1
usually ships 14-30 days
29
190-9579
Pin
$1.23
1
usually ships 14-30 days
30
190-9580
Adjusting bolt
$3.81
1
usually ships 14-30 days
31
190-9581
Adjuster knob
$7.68
1
usually ships 14-30 days
32
190-9557
Pin
Call for price
1
usually ships 14-30 days
