PAS20BA-BC
Vacuum Float Assembly

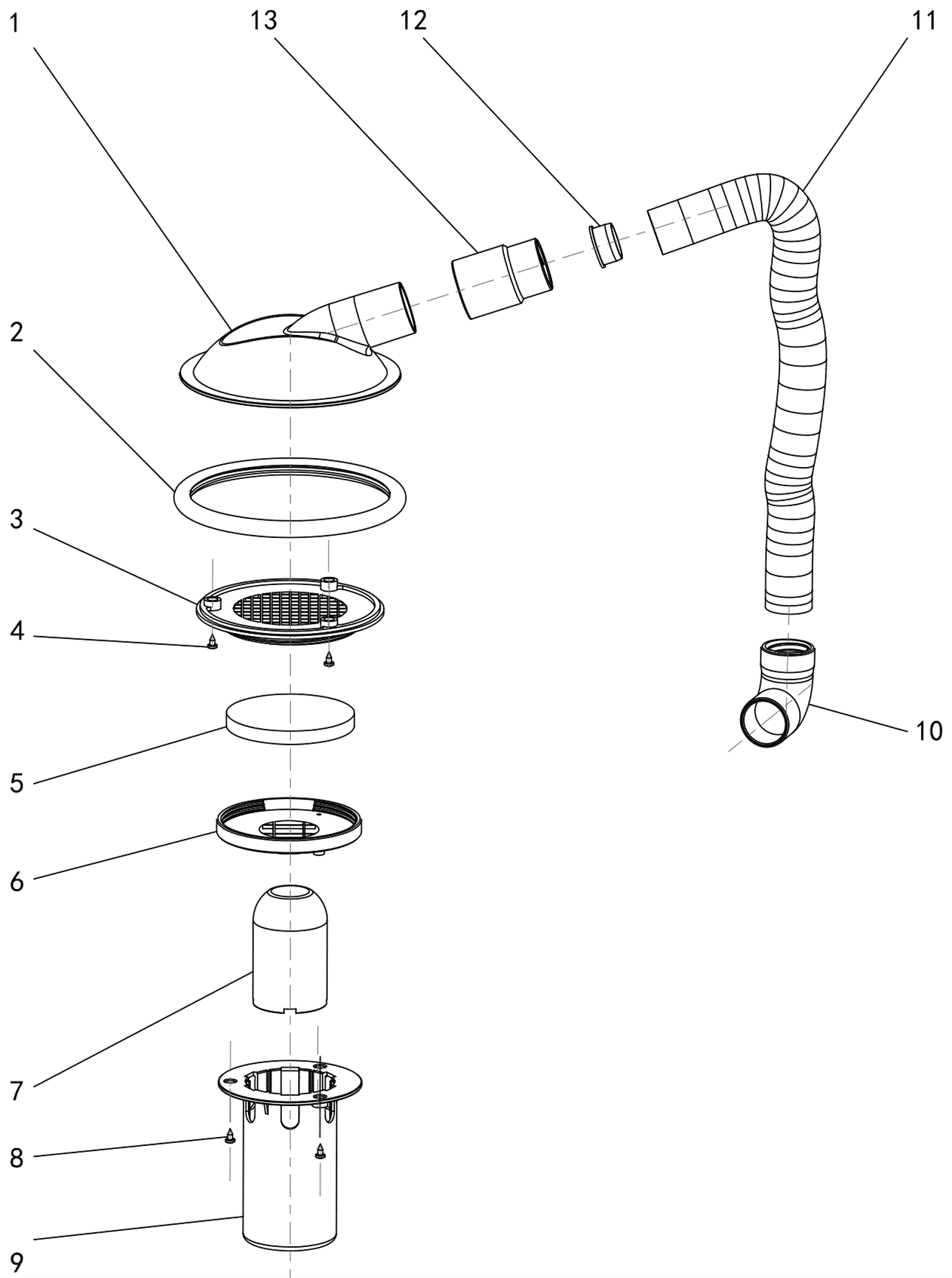

Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
1
190-9152
Top lid
$4.93
1
usually ships 14-30 days
2
190-9153
Seal
$1.23
1
usually ships 14-30 days
3
190-9154
Mesh fitting
$2.93
1
usually ships 14-30 days
4
190-9161
Screw M4.2 x 6.5mm
$2.31
3
usually ships 14-30 days
5
190-9156
Filter
$1.23
1
usually ships 14-30 days
6
190-9158
Cover
$3.08
1
usually ships 14-30 days
7
190-9159
Float
$2.93
1
usually ships 14-30 days
8
190-9161
Screw M4.2 x 6.5mm
$2.31
1
usually ships 14-30 days
9
190-9160
Float cage
$5.70
1
usually ships 14-30 days
10
190-9537
Connector
$2.60
1
usually ships 14-30 days
11
190-9162
Hose M39 x 450mm
$5.49
1
usually ships 14-30 days
12
190-9163
Hose liner
$1.85
1
usually ships 14-30 days
13
190-9164
Sleeve
$5.46
1
usually ships 14-30 days
