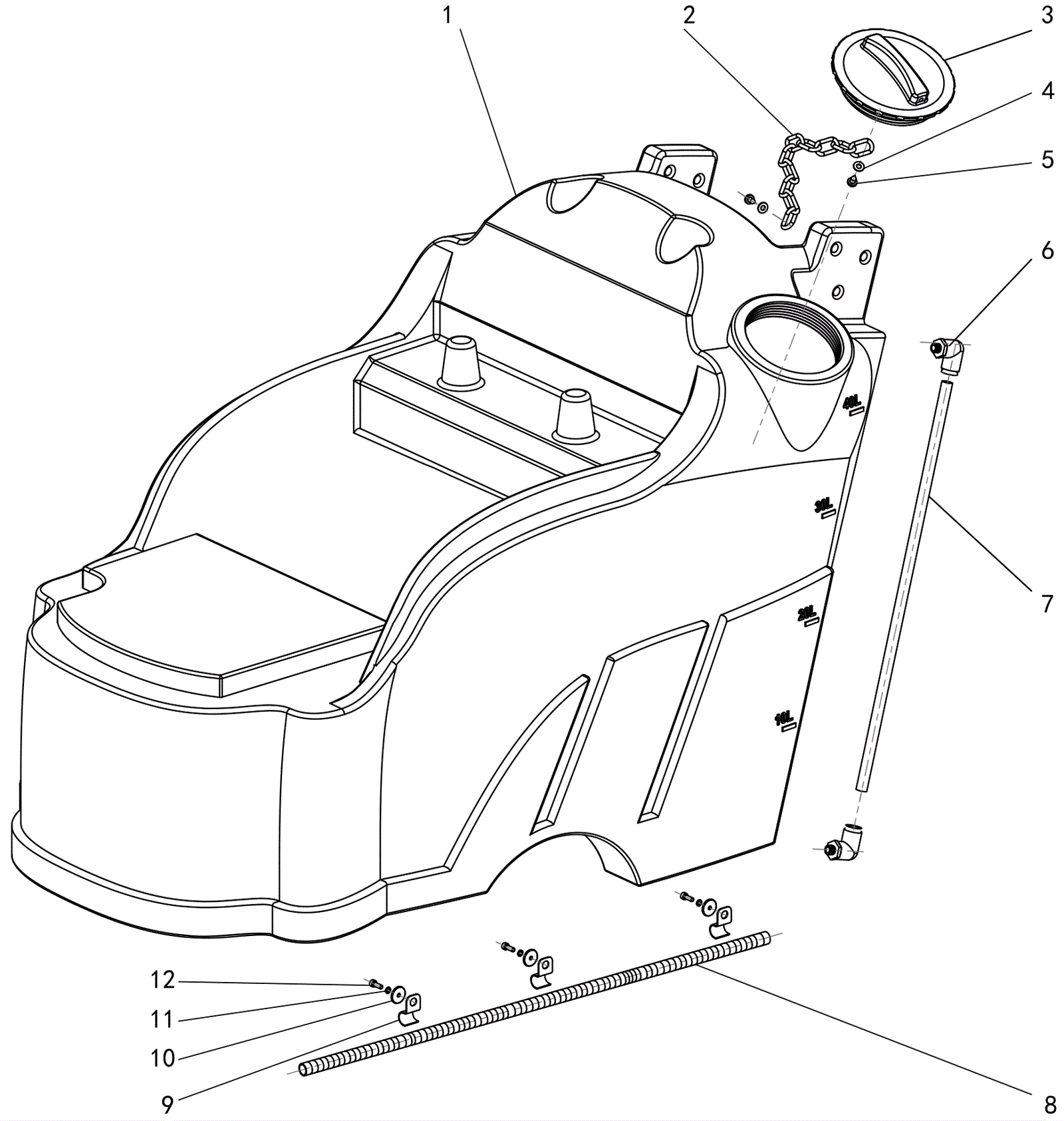

PAS20BA-BC Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 190-9538 Solution tank $1,808.48 1 usually ships 10-27 days
2 190-9539 Chain Call for price 1 usually ships 10-27 days
3 190-0822 Lid $4.44 1 usually ships 10-27 days
5 190-9161 Screw M4.2 x 6.5mm $2.54 2 usually ships 10-27 days
6 190-9540 Connector $5.50 2 usually ships 10-27 days
7 190-9541 Tube M12 x 550mm $4.09 1 usually ships 10-27 days
8 190-9542 Hose Call for price 1 usually ships 10-27 days
9 190-9543 Hose clip Call for price 3 usually ships 10-27 days
10 999-9100 Washer M5 flat stainless steel $5.83 3 ships same day
11 190-9531 M5 lock washer $1.35 3 usually ships 10-27 days
12 999-1601 Screw M5 x 10 flat head stainless steel $0.99 3 ships same day
