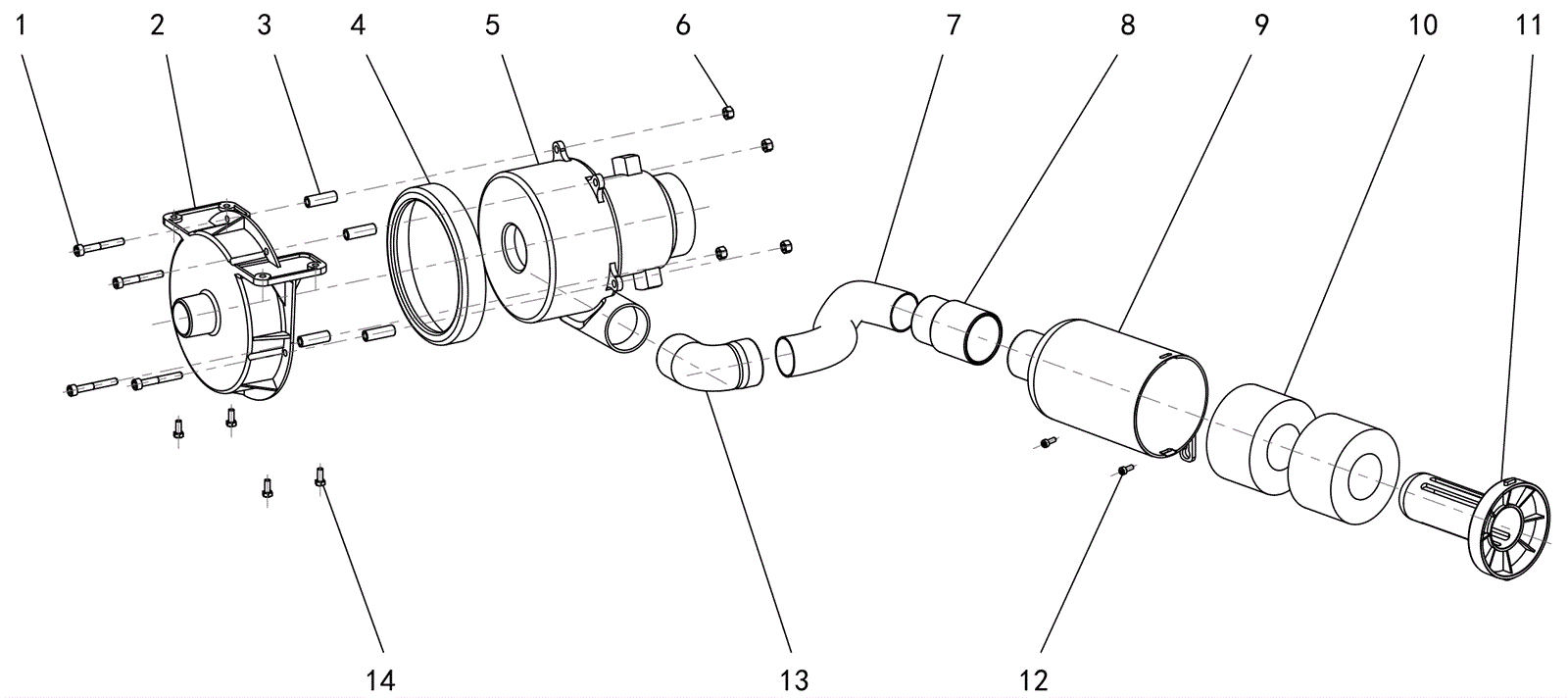

PAS20BA-BC Vacuum Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 190-9535 Screw M6 x 45mm Call for price 4 usually ships 15-28 days
2 190-9106 Bracket $8.09 1 usually ships 15-28 days
3 190-9107 Connector $5.72 4 usually ships 15-28 days
4 190-9108 Gasket $10.11 1 usually ships 15-28 days
5 190-1477 Vacuum motor $412.26 1 usually ships 15-28 days
6 190-9536 Nut M6 $1.54 4 usually ships 15-28 days
7 190-9110 Hose M3 x 300mm $23.72 1 usually ships 15-28 days
8 190-9111 Sleeve $2.64 1 ships same day
9 190-9112 Muffler $7.46 1 usually ships 15-28 days
10 190-9113 Sponge $5.75 2 usually ships 15-28 days
11 190-9114 Core $6.22 1 usually ships 15-28 days
12 999-1601 Screw M5 x 10 flat head stainless steel $0.99 2 ships same day
13 190-9537 Connector $3.08 1 usually ships 15-28 days
14 190-9116 Bolt $2.46 4 usually ships 15-28 days
