PAS20BA-BC

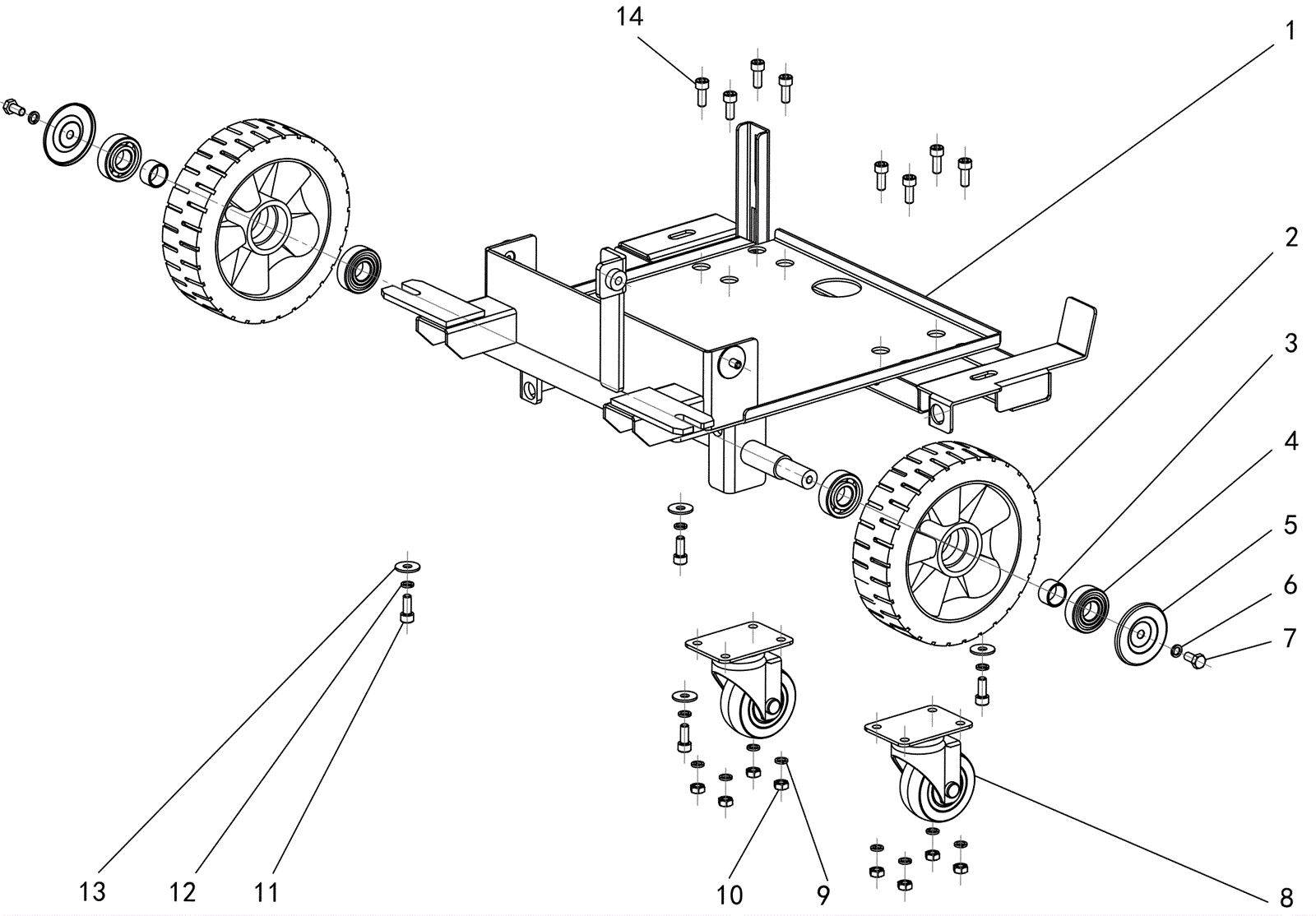

Chassis Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
1
190-9069
Chassis
$633.08
1
usually ships 14-30 days
2
190-9077
Wheel
$93.45
2
ships same day
3
190-9078
Spacer
$4.95
2
usually ships 14-30 days
4
190-9076
Bearing
$13.49
4
usually ships 14-30 days
5
190-9079
Cap
$6.29
2
usually ships 14-30 days
6
190-9075
Lock washer
$16.38
2
usually ships 14-30 days
7
190-9080
Bolt M8x16mm
$1.66
2
usually ships 14-30 days
8
190-9073
Castor
$45.14
2
usually ships 14-30 days
9
190-9075
Lock washer
$16.38
8
usually ships 14-30 days
10
190-9072
Nut M8
$1.18
8
usually ships 14-30 days
11
190-9074
Screw M8x40mm
$1.23
4
usually ships 14-30 days
12
190-9075
Lock washer
$16.38
4
usually ships 14-30 days
13
190-9058
Washer
$1.54
4
usually ships 14-30 days
14
190-9074
Screw M8x40mm
$1.23
8
usually ships 14-30 days
