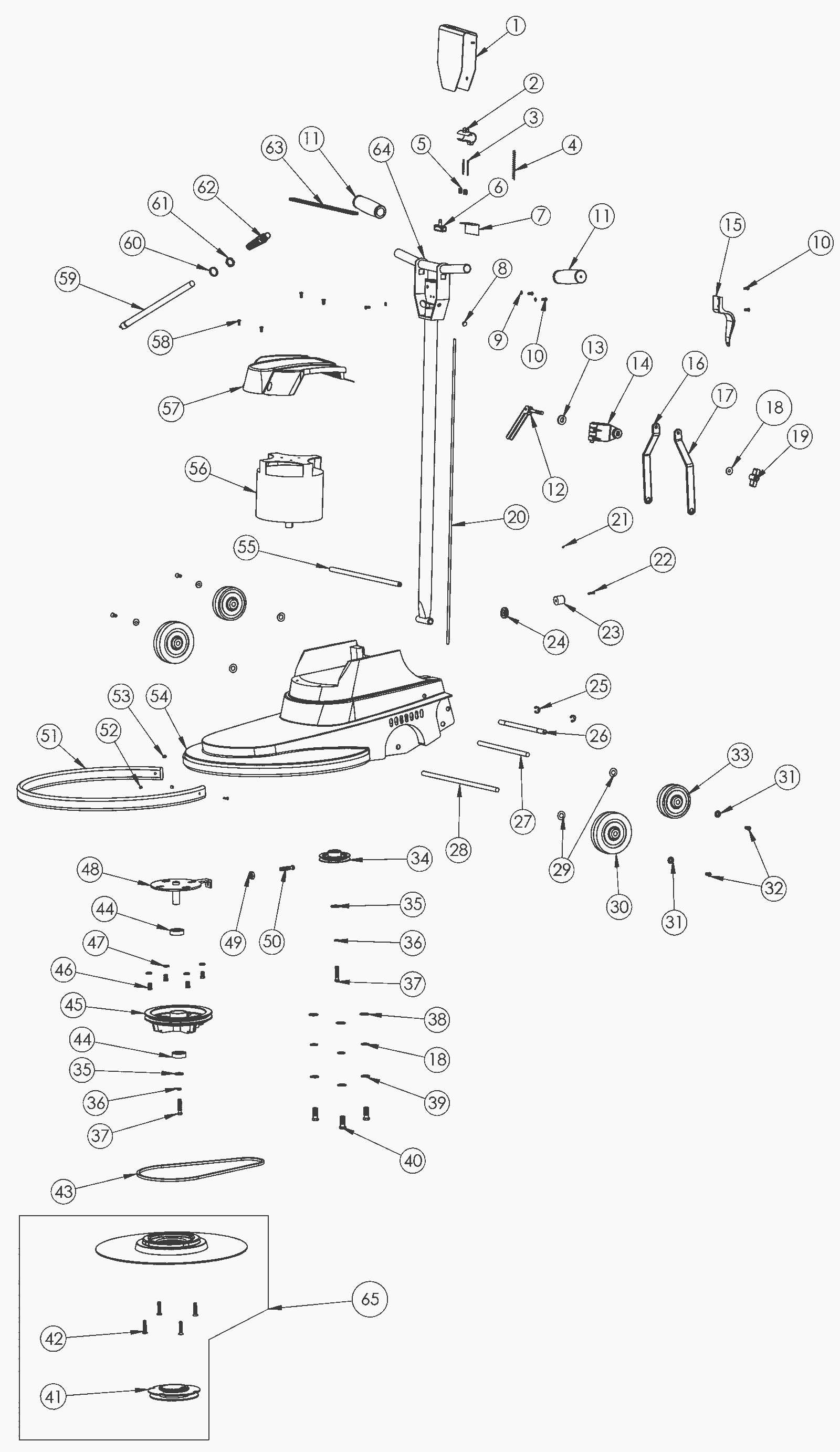

Models NM1600 and NM2000 Assembly

#PartDescription ReqNotesAvailability
1 189-8626 Switch box cover 1
2 190-0060 Thumb actuation release 1
3 190-0064 Handle roll pin 1
4 190-0063 Spring 1
5 190-0062 Trigger tension spring 2
6 190-0575 On/off switch 1
7 190-0067 Insulation sheet 1
8 189-8625 Plug 1
9 190-0066 Washer lock 3
10 189-2979 Screw 10-24 x 1/2 pan head phillips type f 5
11 190-0270 Handle grip 2
12 190-1144 Cam lever assembled 1
13 189-3010 Oval washer 1
14 190-9284 Handle clamp 2
15 189-2978 Cord hook 1
16 189-3013 Right side handle brace 1
17 189-2980 Left side handle brace 1
18 999-0024 Washer 5/16 flat stainless steel 4
19 189-2981 Knob 1
20 183-9049 14/2 in-line power cord 1
21 999-0156 Screw 1/4-20 x 3/16 cup point socket set alloy plain finish 1
22 999-0883 Screw 8 x 1 pan head phillips zinc plated 1
23 190-0267 Bumper 1
24 189-8627 Grommet 1
25 190-9285 E-ring 2
26 190-0671 Pivot shaft brace 1
27 190-0677 Pivot shaft handle 1
28 190-0670 Axle 1
29 189-2984 Spring washer 4
30 189-2987 5 inch wheel 2
31 999-0016 Washer 1/4 flat plain finish 4
32 190-0265 Axle bolt 4
33 190-0669 Wheel 4 x 1 1/2 (black) 2
34a 190-0664 3 inch main pulley 1
34b 190-0666 3 inch main pulley 1
35 190-9286 Washer 2
36 999-0406 Washer 5/16 internal star lock zinc plated 2
37 190-0673 Screw 5/16 x 3/4 hex cap 2
38 999-0120 Washer 3/8 SAE flat 3
39 190-0269 Washer 1/4 spring lock 3
40 999-0298 Bolt 1/4-20 x 1 1/4 hex head stainless steel 3
41 190-9287 Pad retainer assembly 1
42 189-2991 Screw 5/16-18 x 1-1/2 flat phillips 4
43 190-0675 40.5 inch belt 1
44 189-2995 Bearing 2
45 189-2997 Main pulley 1
46 189-2998 Screw 3/8-16 x 3/4 hex end cap 4
47 189-2993 Washer 3/8 wrought 4
48 189-2999 Shaft and plate weldment 1
49 999-0069 Nut 5/16-18 hex 1
50a 190-9288 Screw 5/16-18 x 3/4 inch (NM2000) 1
50b 190-9289 Screw 5/16-18 x 1 inch (NM1600) 1
51 190-0672 Bumper (sold by the inch) 1
52 190-0268 Spacer 2
53 999-1389 Screw 8-32 x 3/4 truss head phillips stainless steel 2
54 190-0668 Housing (black) 1
55 189-2988 Axle (main wheels) 1
56 190-0663 1.5 Hp motor 1
57 190-7102 Motor cover 1
58 999-1544 Screw 8-32 x 1/2 truss head phillips stainless steel 4
59 190-9291 75 Foot cord 12/3 SJTW 1
60 189-3047 Strain relief washer 1
61 216-0181 Nut 1/2 lock steel conduit 1
62 190-9209 Strain relief metal 1
63 190-1322 Handle trigger 1
64 190-0271 Handle weldment 1
65 190-0038 Pad driver 1
66 190-9296 Dust control skirt 1
67 190-1126 Front strap 4
68 190-0978 Screw 1/4-20 x 1/2 phillips 8
69 190-9295 20 inch Dust control housing 1
70 190-9297 Dust skirt clamp 1
71 190-9298 Dust control pulley cover 1
72 190-9299 Axle 1/2 x 15 1/4 inch 1
73 190-9300 Filter mount tube 1
74 190-9301 Filter 1
N/S 190-9292 Complete main pulley assembly 1
