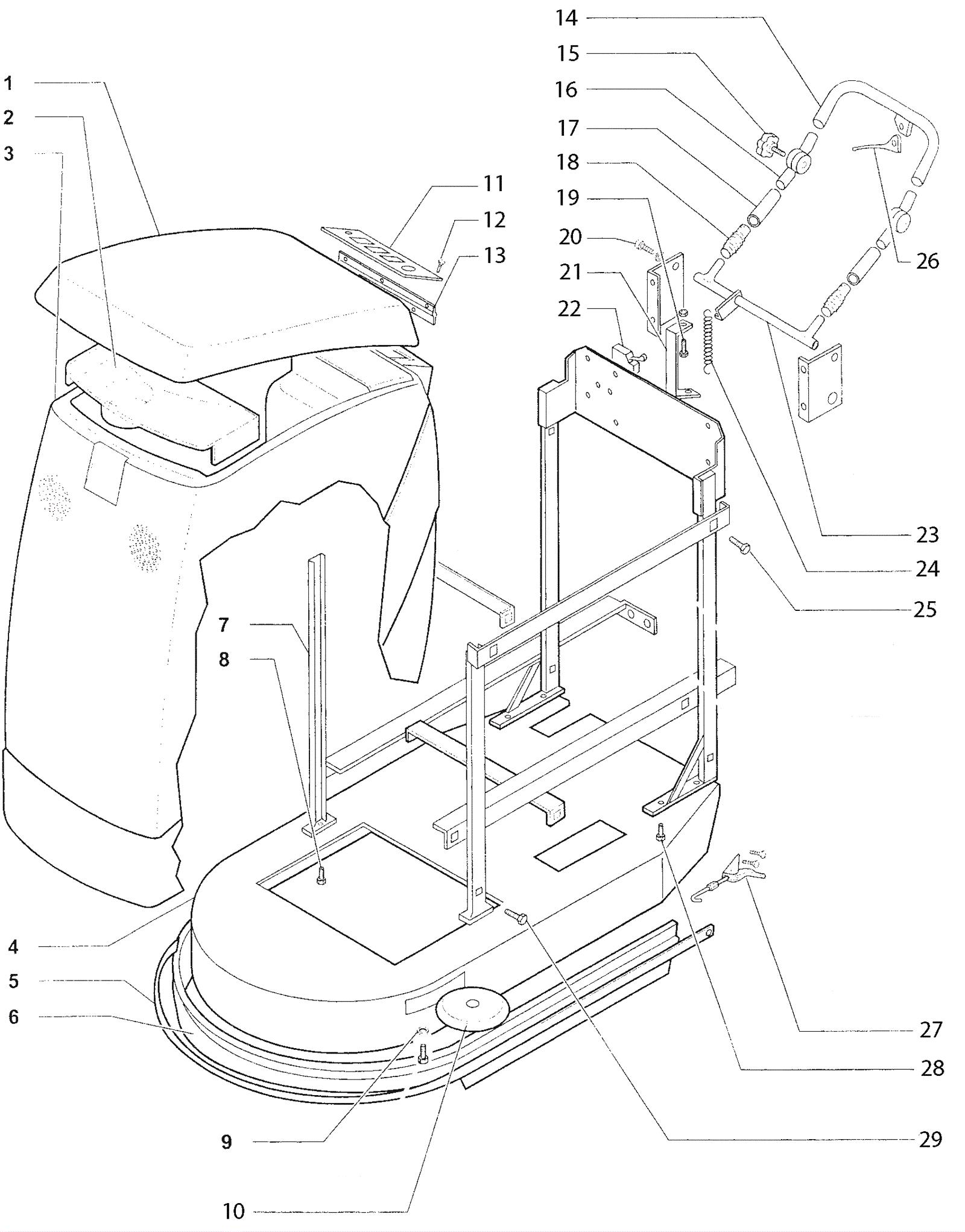

PAS20BA Body Assembly

#PartDescriptionPriceReqNotesAvailability
1 190-9273 Cover $452.07 1 usually ships 15-28 days
2 190-9274 Funnel $77.96 1 usually ships 15-28 days
3 190-9275 Chest $908.60 1 usually ships 15-28 days
4 190-9276 Frame $3,237.31 1 usually ships 15-28 days
5 190-0239 Strap $46.98 1 usually ships 15-28 days
6 190-9277 Splash guard $122.44 1 usually ships 15-28 days
7 190-9278 Screw $15.06 1 usually ships 15-28 days
8 190-0484 Screw $15.94 3 usually ships 1-5 days
9 190-0719 Washer Call for price 5 usually ships 15-28 days
10 190-0424 Buffer wheel $33.46 1 usually ships 15-28 days
11 190-1444 Control panel $96.28 1 usually ships 15-28 days
12 190-0398 Screw $14.09 5 usually ships 1-5 days
13 190-0726 Hinge $74.93 1 usually ships 15-28 days
14 190-9279 Handle $52.76 1 usually ships 15-28 days
15 190-0735 Handle knob $29.21 1 usually ships 15-28 days
16 190-0738 Coupling with hole $78.23 1 usually ships 15-28 days
17 190-0736 Handle $49.29 1 usually ships 15-28 days
18 190-0479 Bellows $18.27 1 usually ships 1-5 days
19 190-0728 Screw Call for price 3 usually ships 15-28 days
20 190-0484 Screw $15.94 4 usually ships 1-5 days
21 190-0729 Support Call for price 1 usually ships 15-28 days
22 190-9280 Microswitch $43.52 1 usually ships 15-28 days
23 190-9281 Mircoswitch $177.97 1 usually ships 15-28 days
24 190-0733 Spring $15.96 1 usually ships 15-28 days
25 190-9284 Handle clamp $25.29 3 usually ships 15-28 days
26 190-9283 Brake lever $49.29 1 usually ships 15-28 days
27 190-0212 Hook and latch assembly $54.03 1 usually ships 15-28 days
28 190-0484 Screw $15.94 3 usually ships 1-5 days
29 190-9284 Handle clamp $25.29 3 usually ships 15-28 days
