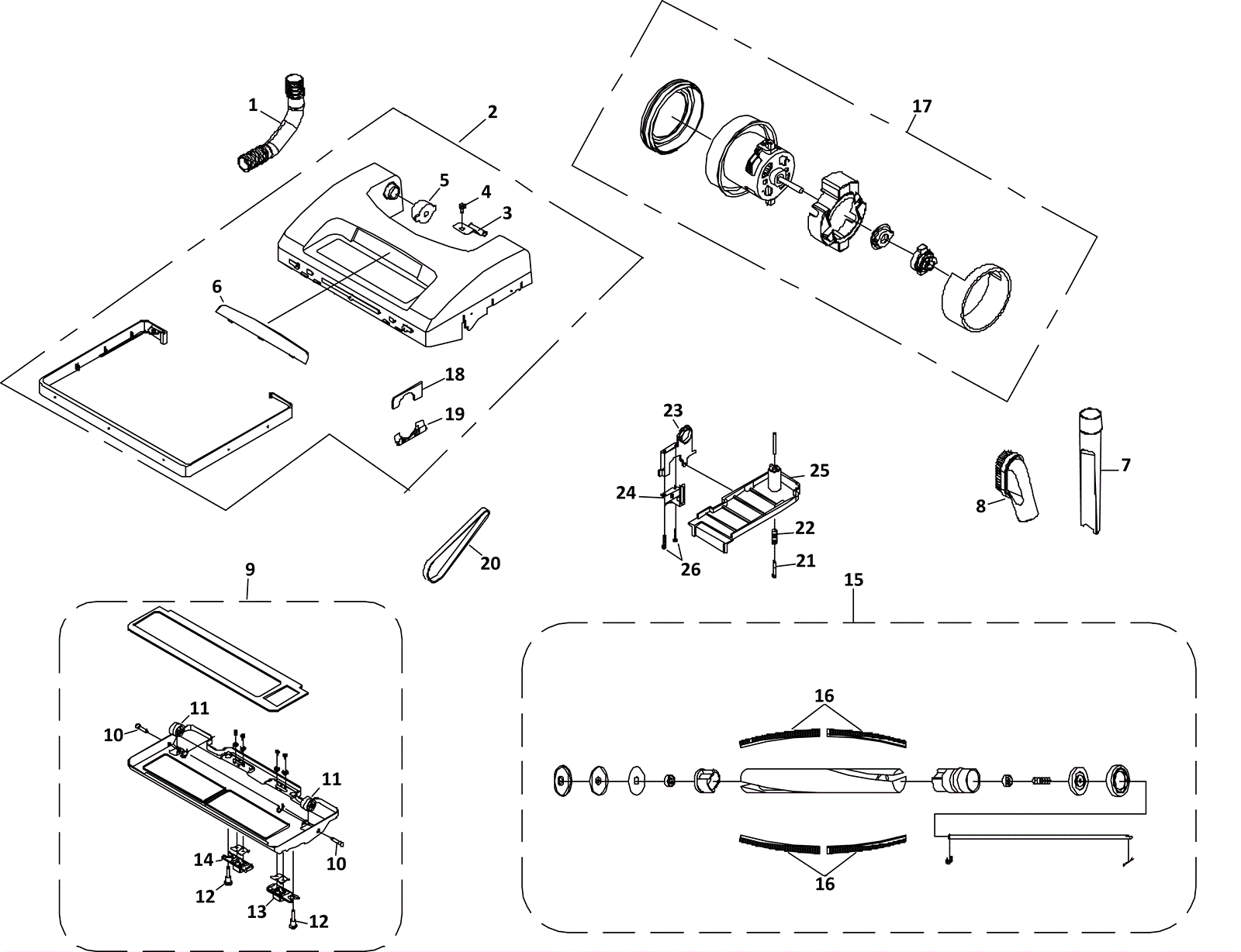

CMPS-1N Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 190-0448 Nozzle hose $7.69 ships same day
2 190-0163 Nozzle housing (w/black bumper) $134.19 (includes 3-6, 18 and 19) usually ships 20-37 days
3 190-1450 Handle release spring $1.30 usually ships 20-37 days
4 190-0201 Screw for handle release spring $1.35 usually ships 1-5 days
5 190-0166 Pivot sleeve bushing $1.30 usually ships 20-37 days
6 190-0167 Lens green $3.41 usually ships 20-37 days
7 190-0169 Crevice tool $6.59 usually ships 20-37 days
8 190-0170 Dusting brush $15.39 ships same day
9 190-0171 Base plate assembly $32.01 (includes 10-14) usually ships 20-37 days
10 190-0173 Base plate wheel axle $1.30 usually ships 20-37 days
11 190-0174 Base plate wheel $1.30 usually ships 20-37 days
12 190-0176 Base plate latch stud screw $1.83 usually ships 20-37 days
13 190-0178 Base plate latch left $1.30 usually ships 1-5 days
14 190-0179 Base plate latch right $1.30 usually ships 1-5 days
15 190-0180 Brushroll assembly $47.58 (includes 16) ships same day
16 190-0186 Brush insert strips $4.36 ships same day
17 190-0196 Motor assembly $144.09 ships same day
18 190-0307 Brush support $10.60 ships same day
19 190-0198 Vented support fitting $1.30 usually ships 20-37 days
20 190-0199 Belt $3.83 ships same day
21 190-0206 Screw for swivel belt cover $1.30 usually ships 1-5 days
22 190-0207 Spring for swivel belt cover $1.30 usually ships 20-37 days
23 190-0202 Pedal frame $2.78 usually ships 20-37 days
24 190-0203 Rear belt guard $1.30 usually ships 20-37 days
25 190-0204 Rear swivel belt cover $4.47 usually ships 20-37 days
26 190-0205 Screw for pedal frame $1.30 usually ships 1-5 days
