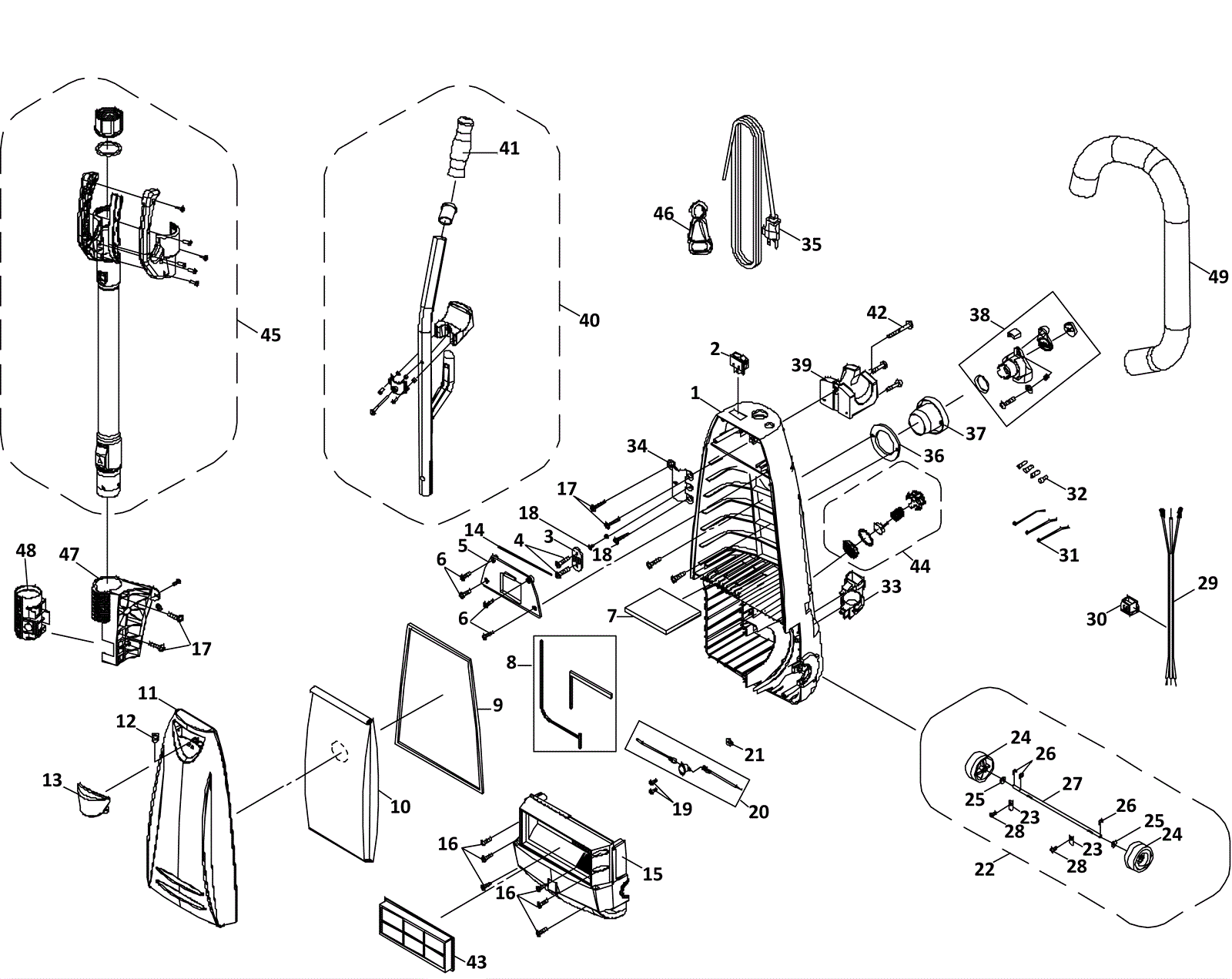

CMPS-QD Upper Assembly

#PartDescriptionPriceReqNotesAvailability
1 190-0108 Dust compartment $53.13 usually ships 20-37 days
2 190-0110 Main switch $2.57 usually ships 20-37 days
3 190-0111 Internal cord strap $0.99 usually ships 1-5 days
4 190-0112 Screw $0.99 usually ships 1-5 days
5 190-0113 Switch cover Call for price usually ships 1-5 days
6 190-0114 Screw $1.30 usually ships 1-5 days
7 190-0115 Secondary filter $1.41 ships same day
8 190-0116 Motor cover seal kit (OBSOLETE) $3.08 usually ships 20-37 days
9 190-1452 Dust compartment seal $6.59 usually ships 20-37 days
10a 190-0118 Paper vacuum bags (pkg of 12) $27.49 (OEM) usually ships 20-37 days
10b 991-9036 Paper vacuum bags (pkg of 10) $9.04 (NON-OEM) ships same day
11 190-0824 Dust cover $34.09 usually ships 20-37 days
12 190-1447 Latch spring $1.30 usually ships 20-37 days
13 190-1448 Dust cover latch $2.93 usually ships 20-37 days
14 190-1449 Switch cover seal (OBSOLETE) $2.38 usually ships 20-37 days
15 190-0125 Motor cover $15.26 usually ships 20-37 days
16 190-9686 Screw #8-18 x 5/8 $1.30 usually ships 10-27 days
17 190-9686 Screw #8-18 x 5/8 $1.30 usually ships 10-27 days
18 190-9686 Screw #8-18 x 5/8 $1.30 usually ships 10-27 days
19 190-0129 Screw $0.99 usually ships 1-5 days
20 190-0128 Thermal reset switch $9.89 usually ships 8-21 days
21 190-0130 Thermal switch seal $1.30 usually ships 20-37 days
22 N/A Not available Call for price (Rear wheel and axle assembly) (includes 23-28) usually ships 3-26 days
23 190-0132 Set washer for axle $1.30 usually ships 20-37 days
24 190-0133 Rear wheel $4.44 ships same day
25 190-0134 Rear axle wheel washer $1.30 usually ships 20-37 days
26 190-0135 Rear axle wheel clip $1.30 usually ships 20-37 days
27 190-0136 Rear wheel axle $3.59 usually ships 20-37 days
28 190-0137 Screw $1.30 usually ships 20-37 days
29 190-0138 Motor lead cord $6.59 usually ships 1-5 days
30 190-0356 Wire bushing Call for price usually ships 1-5 days
31 190-0140 Zip tie $1.30 usually ships 1-5 days
32 190-0141 Wire connector $1.30 usually ships 20-37 days
33 190-0142 Obt tool caddy $5.62 usually ships 1-5 days
34 190-0152 Handle retainer $1.41 usually ships 1-5 days
35a 190-0158 Power cord 50' 18/3 yellow $80.29 (OEM) ships same day
35b 991-5007 18/3 replacement power cord 50 foot (black) $32.10 (NON-OEM) ships same day
36 190-0145 Swivel inlet gasket $1.30 usually ships 1-5 days
37 190-0146 Bag inlet $1.56 usually ships 1-5 days
38 190-0147 Suction inlet assembly $32.09 usually ships 20-37 days
39 190-0148 Hose hanger $8.79 usually ships 1-5 days
40 190-0918 Complete handle assembly $39.57 (includes 41) usually ships 20-37 days
41 190-0596 Rubber handle grip $10.54 usually ships 20-37 days
42 190-9952 Screw $1.30 usually ships 20-37 days
43 190-0447 HEPA filter $7.72 ships same day
44 190-9037 Suction relief valve assembly $9.89 usually ships 20-37 days
45 190-0446 Wand assembly $54.64 usually ships 20-37 days
46 190-9034 Cord clip $4.25 usually ships 20-37 days
47 190-9035 Quick draw attachment holder $34.09 usually ships 20-37 days
48 190-9036 Quick draw clean out $17.59 usually ships 20-37 days
49 190-0445 Vacuum hose $41.79 ships same day
