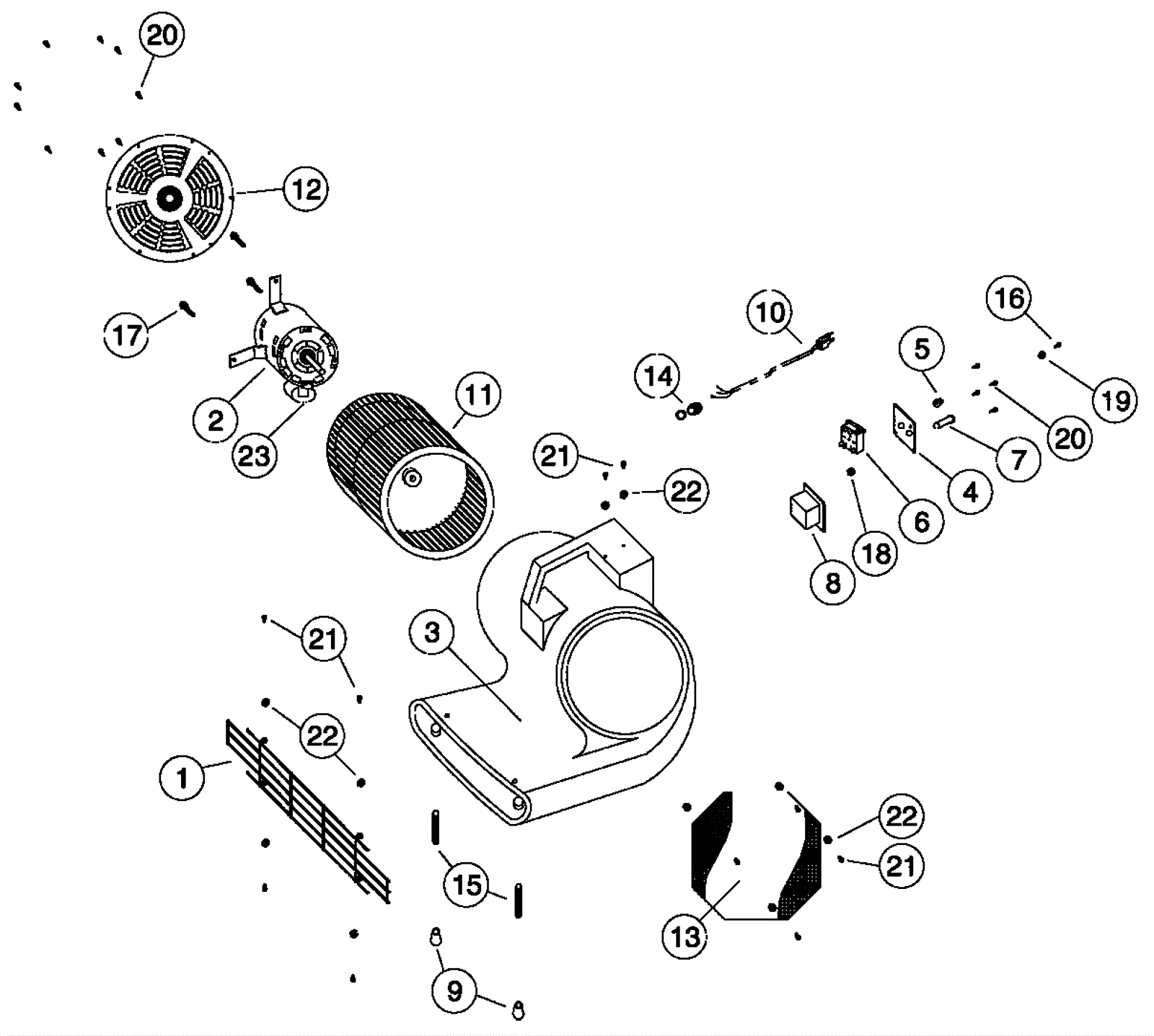

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
190-0259
|
Grill |
1 |
|
|
2a |
189-7502
|
115 volt motor |
1 |
|
|
2b |
190-0399
|
Motor (OBSOLETE) |
1 |
|
|
3 |
N/A
|
Not available |
1 |
(housing) |
|
4 |
N/A
|
Not available |
1 |
(blower switch plate) |
|
5 |
190-0258
|
Switch knob |
1 |
|
|
6 |
190-0040
|
Switch (OBSOLETE) |
1 |
|
|
7 |
190-0403
|
Neon light with lens |
1 |
|
|
8 |
190-0404
|
Dryer switch housing |
1 |
|
|
9 |
190-0030
|
Rubber foot (black) (new style) |
2 |
|
|
10 |
N/A
|
Not available |
1 |
(cord) |
|
11 |
190-0237
|
Squirrel cage with lock nut |
1 |
|
|
12 |
N/A
|
Not available |
1 |
(motor cover and screen) |
|
13 |
N/A
|
Not available |
1 |
(screen) |
|
14 |
216-0173
|
Strain relief |
1 |
|
|
16 |
999-0269
|
Screw 10-24 x 5/8 pan head phillips zinc plated |
1 |
|
|
17 |
190-0419
|
Screw 1/4-20 x 1/2 serrated hex |
3 |
|
|
18 |
999-0062
|
Nut 10-24 hex |
1 |
|
|
19 |
N/A
|
Not available |
1 |
(shakeproof washer) |
|
20 |
999-0680
|
Screw 6 x 1/2 pan head phillips T-A sheet metal |
13 |
|
|
21 |
999-0454
|
Screw 10-24 x 1/2 truss head phillips zinc plated |
10 |
|
|
22 |
190-0405
|
Nut nylon insert lock |
10 |
|
|
23 |
190-0406
|
Capacitor |
1 |
|
|
